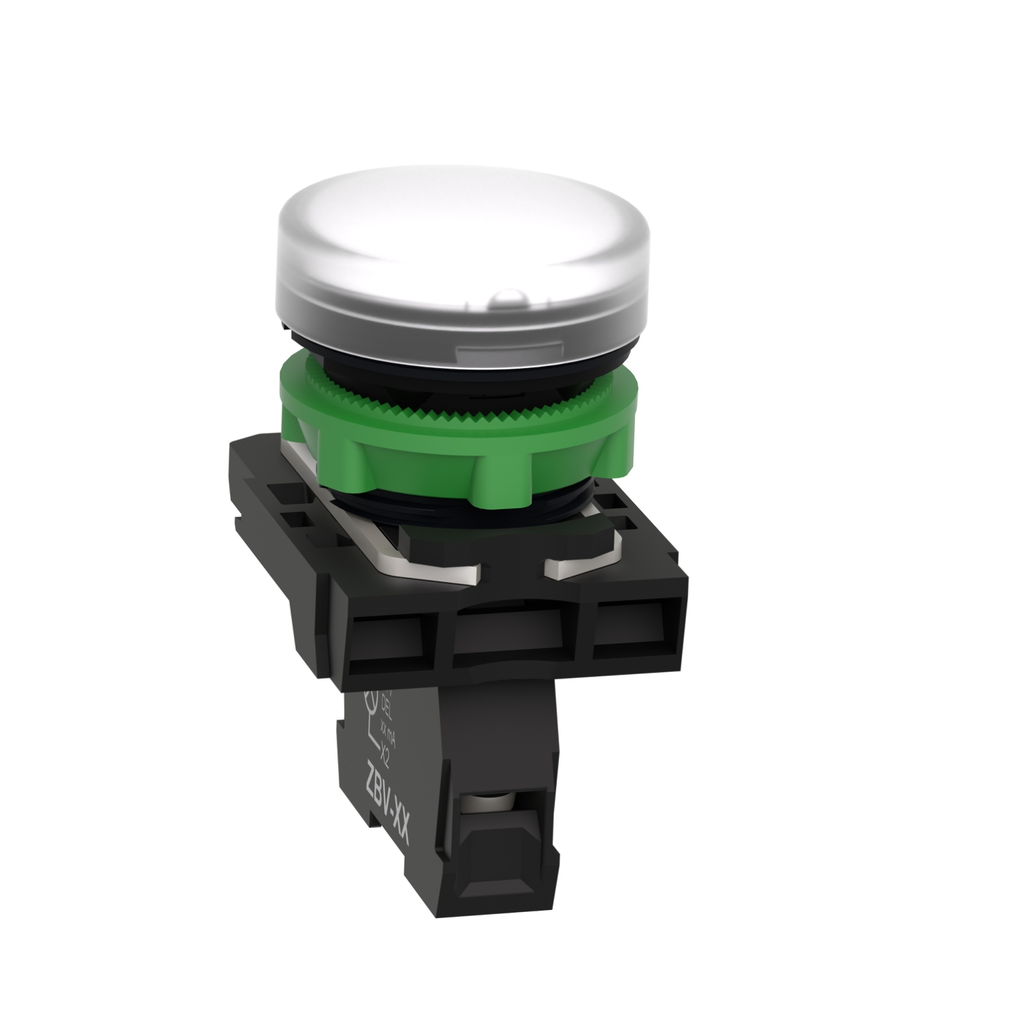

Harmony XB5, Pilot light, plastic, white, Ø22, plain lens with integral LED, 24 V AC/DC

Harmony XB5, Pilot light, plastic, white, Ø22, plain lens with integral LED, 24 V AC/DC

SQDXB5AVB1 XB5AVB1 785901383987
68.25 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: CSA, UL Listed
  • Color: White
  • Current: 18 mA
  • Depth: 54 mm
  • Height: 42 mm
  • Net Weight: 0.038 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB5, plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Product Description
  • Specifications
This Harmony XB5, plain lens modular white pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Fixing Collar Material : plastic
  • Device Presentation : complete product
  • Light Source : protected LED
  • Operator Additional Information : with plain lens
  • Mounting Diameter : 22 mm
  • Shape Of Signaling Unit Head : round
  • Bulb Base : integral LED
  • Product Or Component Type : pilot light
  • Sale Per Indivisible Quantity : 1
  • Bezel Material : dark grey plastic
  • Cap/Operator Or Lens Colour : white
  • Range Of Product : Harmony XB5
  • [Us] Rated Supply Voltage : 24 V AC/DC 50/60 Hz
  • Head Type : standard
  • Device Short Name : XB5
  • Light Source Colour : white
  • Complementary
    • Current Consumption : 18 mA
    • Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
    • Compatibility Code : XB5
    • Service Life : 100000 h at rated voltage and 25 °C
    • Terminals Description Iso N°1 : (X1-X2)PL
    • [Ui] Rated Insulation Voltage : 250 V 3)EN 60947-1
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV EN 60947-1
    • Gcr Bridge : XB5AVCUST03
    • Supply Voltage Limits : 19.2-30 V DC || 21.6-26.4 V AC
    • Signalling Type : steady
    • Surge Withstand : 1 kV IEC 61000-4-5
    • Maximum Width : 30 mm
    • Maximum Height : 42 mm
    • Maximum Depth : 54 mm
    • Net Weight : 0.038 kg
  • Offer Sustainability
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Sustainable Offer Status : Green Premium product
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
    • Ik Degree Of Protection : IK05 IEC 50102
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Electromagnetic Emission : class B IEC 55011
    • Electromagnetic Compatibility : electrostatic discharge 6 kV on contact (on metal parts)) IEC 61000-4-2 || electrostatic discharge 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electromagnetic emissionclass B IEC 55011
    • Protective Treatment : TH
    • Product Certifications : UL Listed || CSA
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Vibration Resistance : 5 gn 12-500 Hz)IEC 60068-2-6
  • Contractual warranty
    • Warranty : 18 months
