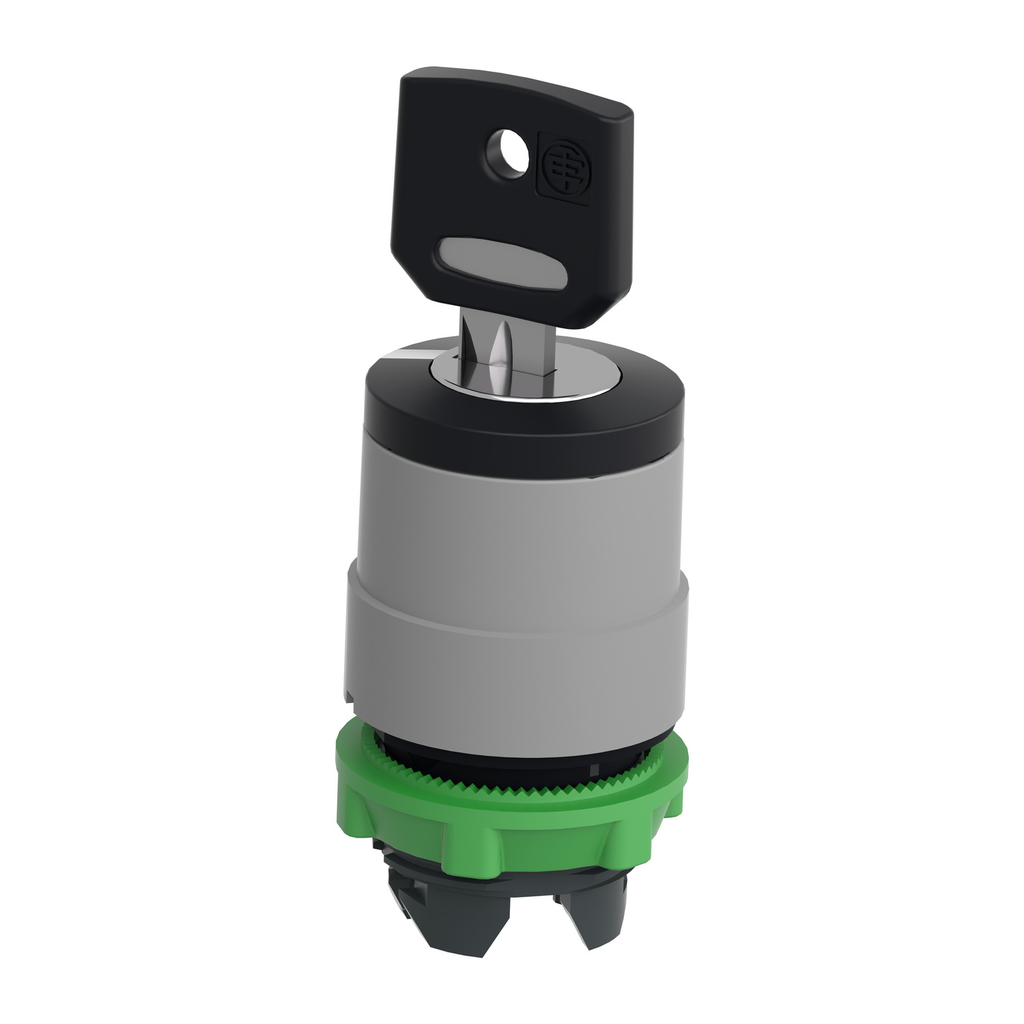

This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66, making it ideal for operation in harsh environments.

• Specifications
• Bezel Material : plastic colour plated grey
• Product Or Component Type : head for key selector switch
• Head Type : standard
• Mounting Diameter : 22 mm
• Type Of Operator : stay put
• Operator Position Information : 2 positions 90°
• Operator Profile : black key switch
• Key Withdrawal Position : in any position
• Shape Of Signaling Unit Head : round
• Sale Per Indivisible Quantity : 1
• Device Short Name : ZB5
• Type Of Keylock : Dom 8D1
• Range Of Product : Harmony XB5
• Offer Sustainability
• China Rohs Regulation : X
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Mercury Free : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Rohs Exemption Information : Yes
• Environment
• Overvoltage Category : class II IEC 60536
• Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
• Ik Degree Of Protection : IK06 IEC 50102
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Ip Degree Of Protection : IP66 IEC 60529 || IP67
• Standards : IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || UL 508 || JIS C8201-1
• Ambient Air Temperature For Storage : -40-70 °C
• Protective Treatment : TH
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Ambient Air Temperature For Operation : -40-70 °C
• Product Certifications : CSA || BV || GL || DNV || UL Listed || LROS (Lloyds register of shipping)
• Complementary
• Device Presentation : basic element
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Electrical Composition Code : C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C15 1 single front mounting
• Cad Overall Depth : 72 mm
• Mechanical Durability : 1000000 cycles
• Net Weight : 0.057 kg
• Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
