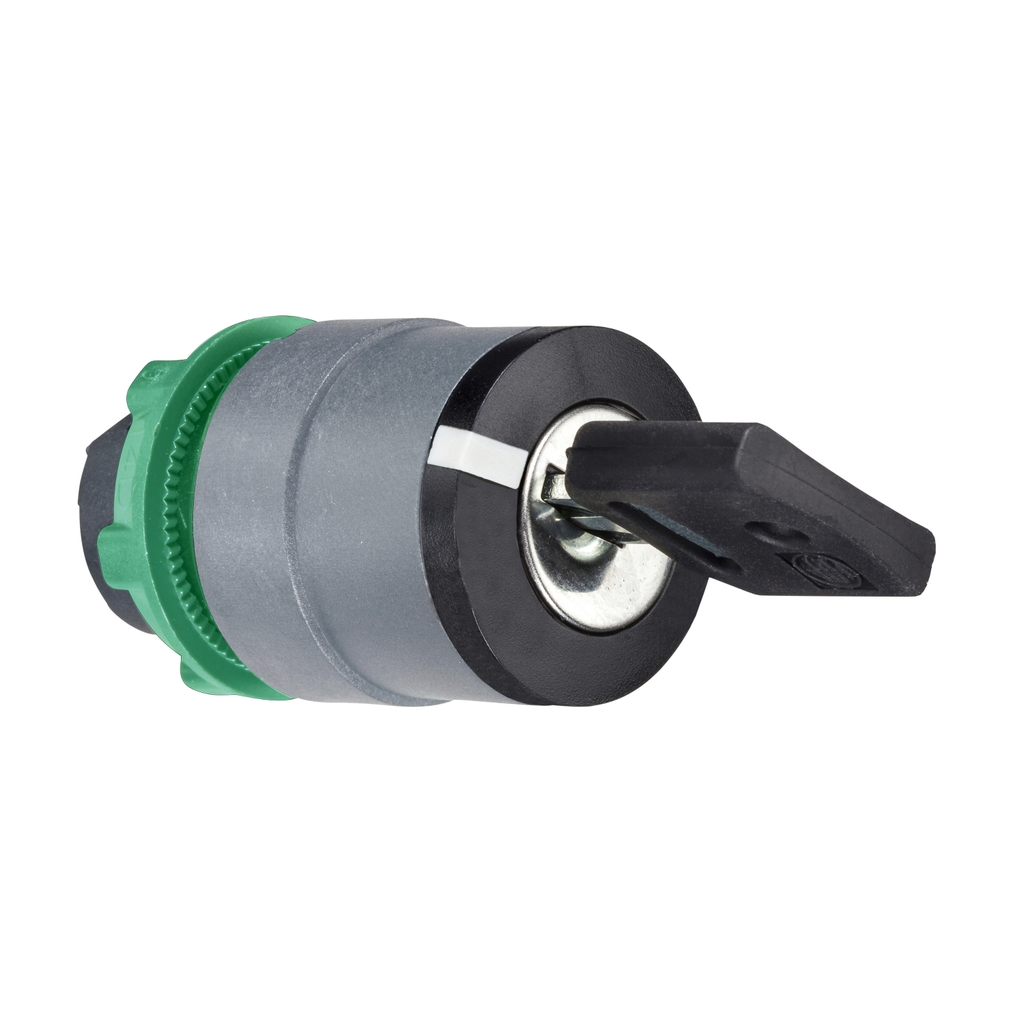

This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 and IP66, making it ideal for operation in harsh environments.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_Isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_Isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2_top.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG2_NEW_2024&p_File_name=ZB5AG2.stp, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AG212C0_3DCAD
• Physical Attributes
• Cad Overall Depth : 72 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : black
• Conformance Attributes
• Product Certifications : DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : IEC 60947-1, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : C4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mounting, C7 4 single front mounting, C8 4 single and double front mounting, C11 3 single front mounting, C3 6 single front mounting, SF1 3 single front mounting, SR1 3 single rear mounting, C15 1 single front mounting
• Range Of Product : Harmony XB5, Harmony XALF
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs
• Medium Desc : Key switch selector head, Harmony XB5, plastic, black, 22mm, key 421E, 2 positions, stay put, grey bezel
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308009EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Gcr Bridge : ZB5AGCUST03
• Group Of Product : key switch
• Head Type : standard
• Key Withdrawal Position : left
• Main Group : selector switch
• Mechanical Durability : 1000000 cycles
• Mounting Diameter : 22 mm
• Operator Position Information : 2 positions 90°
• Operator Profile : black key switch
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for key selector switch
• Protective Treatment : TH
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Keylock : key 421E
• Type Of Operator : stay put
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : black
• Pep Code : ENVPEP2308009EN
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60529, IP67
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308009EN
• Environmental Disclosure : ENVPEP2308009EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308009EN
• General Attributes
• Range Of Product : Harmony XB5, Harmony XALF
• Product Or Component Type : head for key selector switch
• ETIM
• ETIM 8 : EC000222
• ETIM 9 : EC000222
• Overview Attributes
• Device Presentation : basic element
