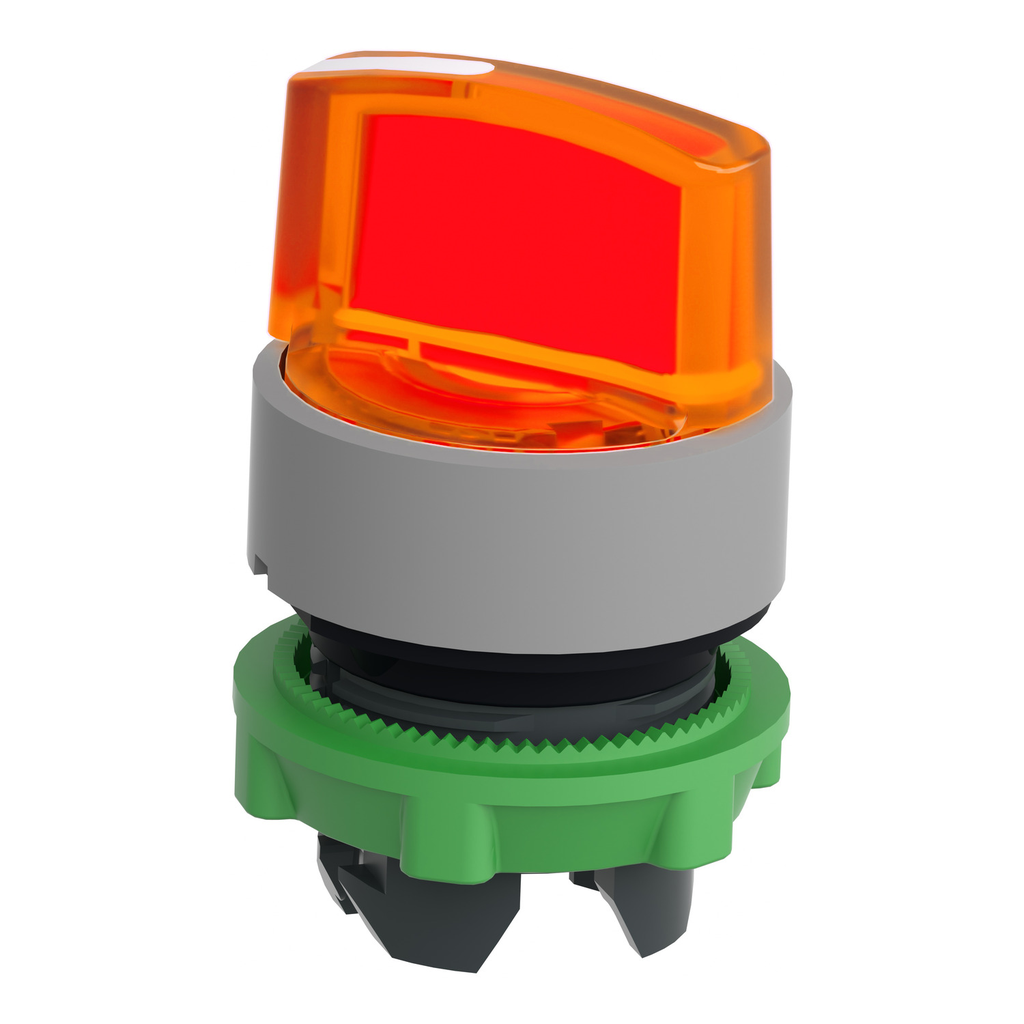

This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your ma

• Type Of Operator
• right to left spring return
• Overvoltage Category
• class II conforming to IEC 60536
• Electrical Composition Code
• M3 4 single front mounting integral LED
• M6 2 single front mounting integral LED and transforme
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• EN/IEC 60947-5-5
• EN/IEC 60947-5-1
• JIS C8201-5-1
• CSA C22.2 No 14
• EN/IEC 60947-5-4
• UL 508
• EN/IEC 60947-1
• JIS C8201-1
• Station Name
• XALD 1...5 cut-outs
• XALK 2...5 cut-outs
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZBE101
• ZBYLEG503001
• ZB5AZ009
• ZBY6101C0
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Customizable
• 1
• no
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• orange standard handle
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Certifications
• CSA
• DNV
• BV
• LROS (Lloyds register of shipping)
• UL Listed

• Physical Attributes
• Cad Overall Depth : 43 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : orange
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Compatible with universal LED block to be used for all colors
• B2B Bullet Point 2 : Improved color intensity and brightness
• B2B Bullet Point 3 : Quick and easy assembly and disassembly
• B2B Bullet Point 4 : Robustness to withstand harsh environments
• B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• B2B Bullet Point 6 : Large set of accessories to customize your panels
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-13
• ETIM 10 : EC000222
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308010EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Cap Operator Or Lens Color : orange
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Gcr Bridge : ZB5AKCUST01
• Group Of Product : illum. integral LED
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum select switch
• Mechanical Durability : 500000 cycles
• Mounting Diameter : 22 mm
• Operator Position Information : 2 positions 90°
• Package Weight Lbs : 23.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated selector switch
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : No
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : head for illuminated selector switch
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749757&lang=en-us
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308010EN
• Environmental Disclosure : ENVPEP2308010EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Product Compatibility : universal LED
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
