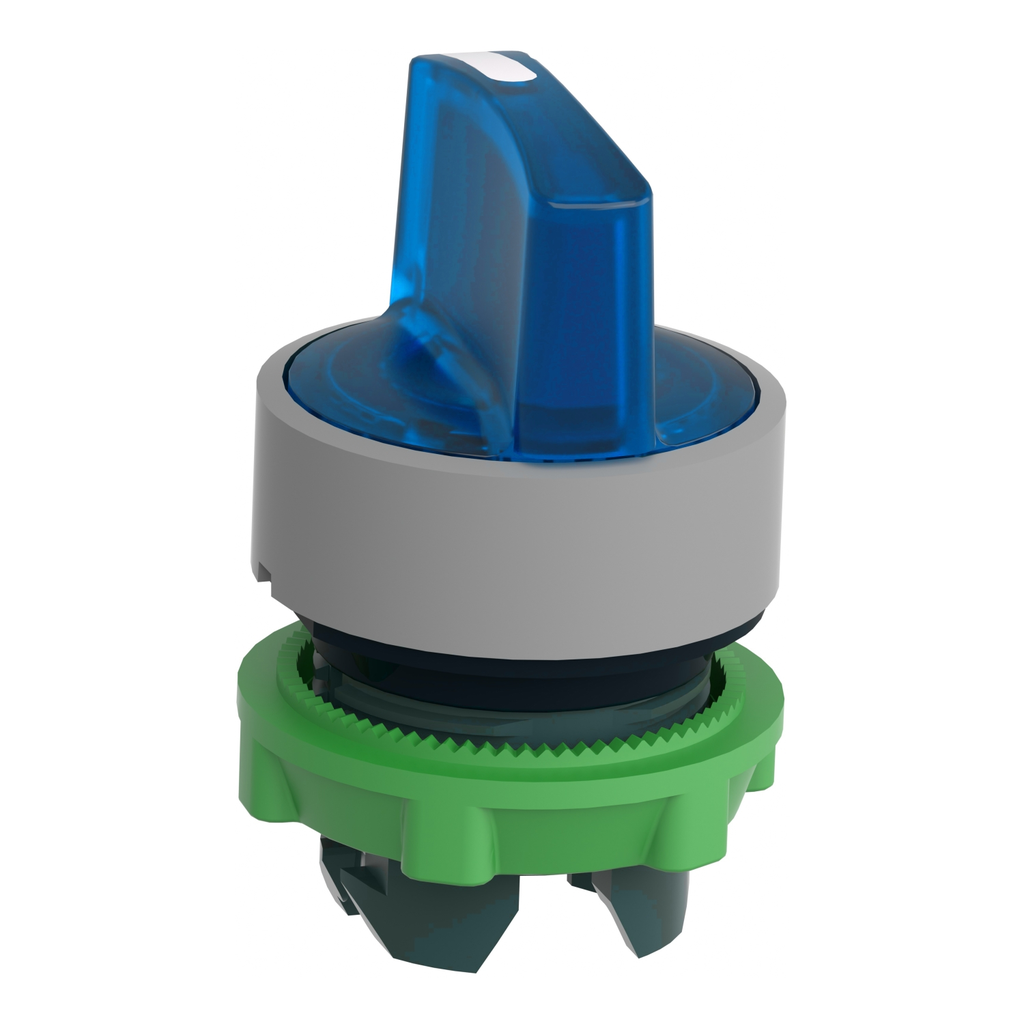

Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, 22mm, universal LED, 3 positions, right to center

HARMONY XB5, ILLUMINATED SELEC

SQDZB5AK1863C0 ZB5AK1863C0 3606489767860
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, 22mm, universal LED, 3 positions, right to center-2
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your ma
QTY
  • Product Description
  • Features
  • Specifications
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your ma
  • Type Of Operator
    • right to centre spring return
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • M3 4 single front mounting integral LED
    • M6 2 single front mounting integral LED and transforme
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP67
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Accessories
    • ZBE101
    • ZBYLEG503001
    • ZB5AZ009
    • ZBY6101C0
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Customizable
    • 1
    • no
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • blue standard handle
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AK1313_NEW_2024
  • Physical Attributes
    • Cad Overall Depth : 43 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 5 : Excellent mechanical connection with operator head
    • B2B Bullet Point 6 : A large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-08-13
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308010EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic colour plated grey
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • GCR Bridge : ZB5AKCUST01
    • Group Of Product : illum. integral LED
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum select switch
    • Mounting Diameter : 22 mm
    • Operator Position Information : 3 positions +/- 45°
    • Package Weight Lbs : 22.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2308010EN
  • General Attributes
    • Product Or Component Type : head for illuminated selector switch
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749818&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2308010EN
    • Environmental Disclosure : ENVPEP2308010EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308010EN
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
