SQUARE D

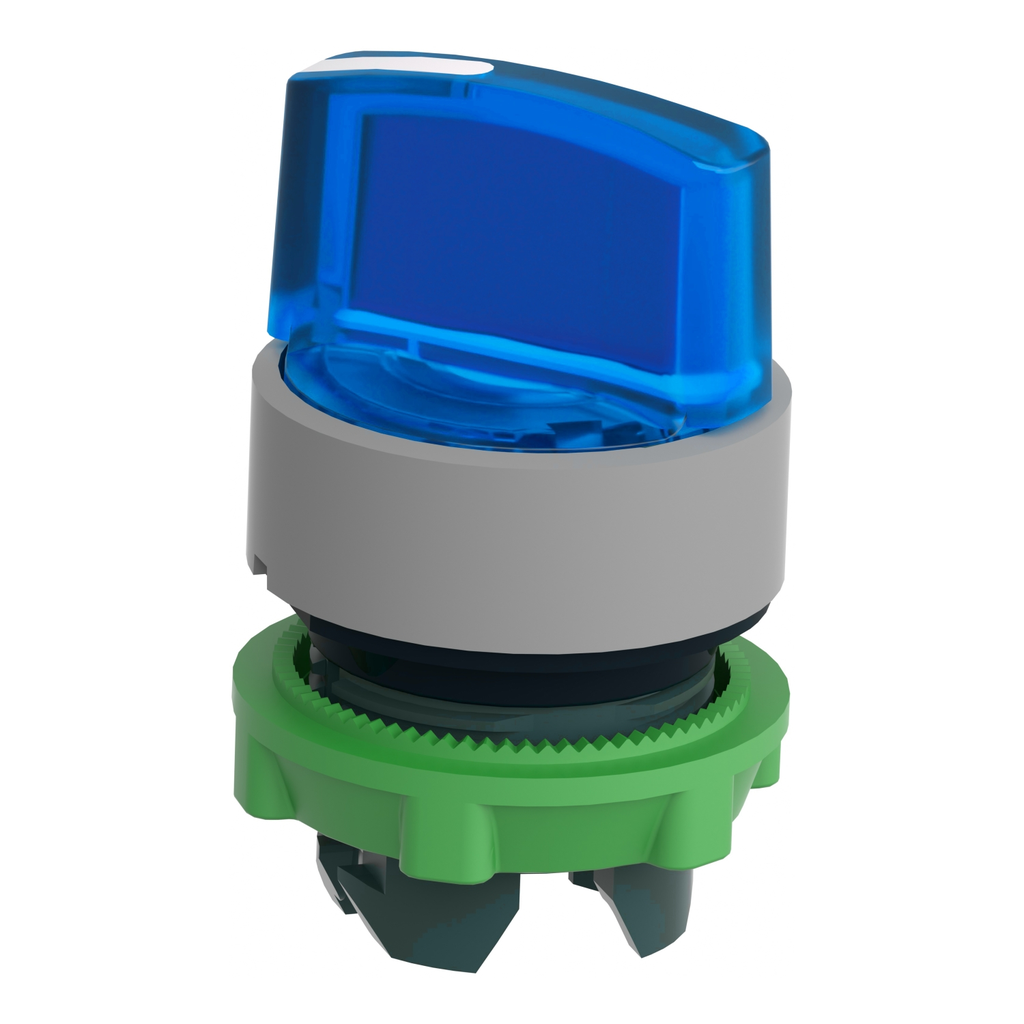

Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, 22mm, universal LED, 2 positions

HARMONY XB5, ILLUMINATED SELEC

SQDZB5AK1263C0 3606489767266
30.97 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, 22mm, universal LED, 2 positions-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.016 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK04 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV || DNV
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Standards : EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
    • Overvoltage Category : class II IEC 60536
    • Protective Treatment : TH
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Electrical Composition Code : M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M4 4 single and double front mounting integral LED
    • Mechanical Durability : 1000000 cycles
    • Net Weight : 0.016 kg
    • Device Presentation : basic element
    • Cad Overall Width : 29 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Depth : 43 mm
  • Specifications
    • Device Short Name : ZB5
    • Range Of Product : Harmony XB5
    • Product Compatibility : universal LED
    • Operator Position Information : 2 positions 90°
    • Type Of Operator : stay put
    • Operator Profile : blue standard handle
    • Shape Of Signaling Unit Head : round
    • Sale Per Indivisible Quantity : 1
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Bezel Material : plastic colour plated grey
    • Product Or Component Type : head for illuminated selector switch
