SQUARE D

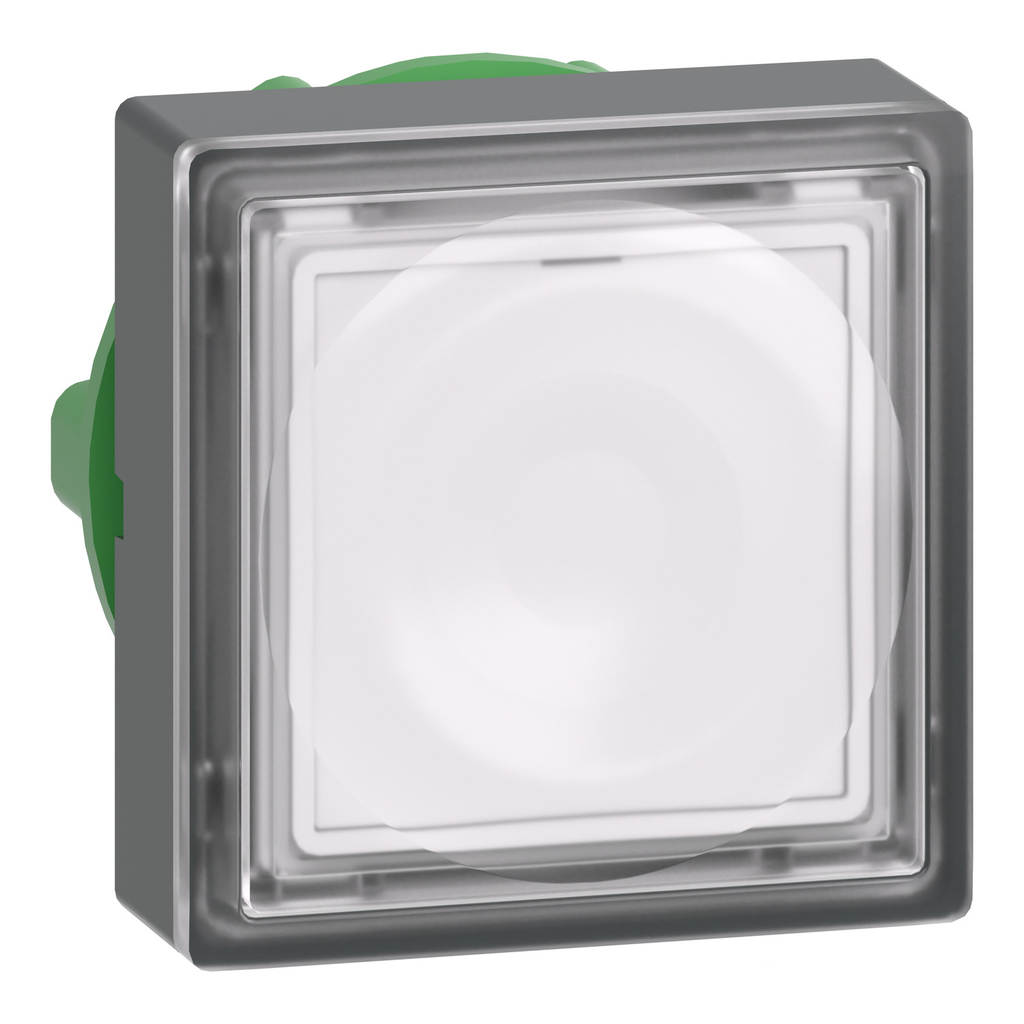

Head for illuminated push button, Harmony XB5, plastic, white square flush, 22mm, universal LED, for insertion of legend

HARMONY XB5, ILLUMINATED PUSH

SQDZB5CW313 ZB5CW313 3389110934823
23.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, plastic, white square flush, 22mm, universal LED, for insertion of legend-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.023 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This white flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This white flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Protective Treatment : TC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 EN 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : UL Listed || BV || CSA || GL || LROS (Lloyds register of shipping) || DNV
    • Standards : UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-4 || JIS C8201-5-1 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Circularity Profile : ENVEOLI1710010EN
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cap/Operator Or Lens Colour : white
    • Cad Overall Depth : 30 mm
    • Device Presentation : basic element
    • Cad Overall Width : 30 mm
    • Group Of Product : flush push with inser of legend
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 30 mm
    • Net Weight : 0.023 kg
    • Marking : unmarked
    • Main Group : illum push-button
  • Specifications
    • Product Compatibility : universal LED
    • Operator Additional Information : for insertion of legend
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB5
    • Bezel Material : dark grey plastic
    • Shape Of Signaling Unit Head : square
    • Type Of Operator : spring return
    • Head Type : standard
    • Product Or Component Type : head for illuminated push-button
    • Mounting Diameter : 22 mm
    • Operator Profile : white flush, unmarked
    • Range Of Product : Harmony XB5
