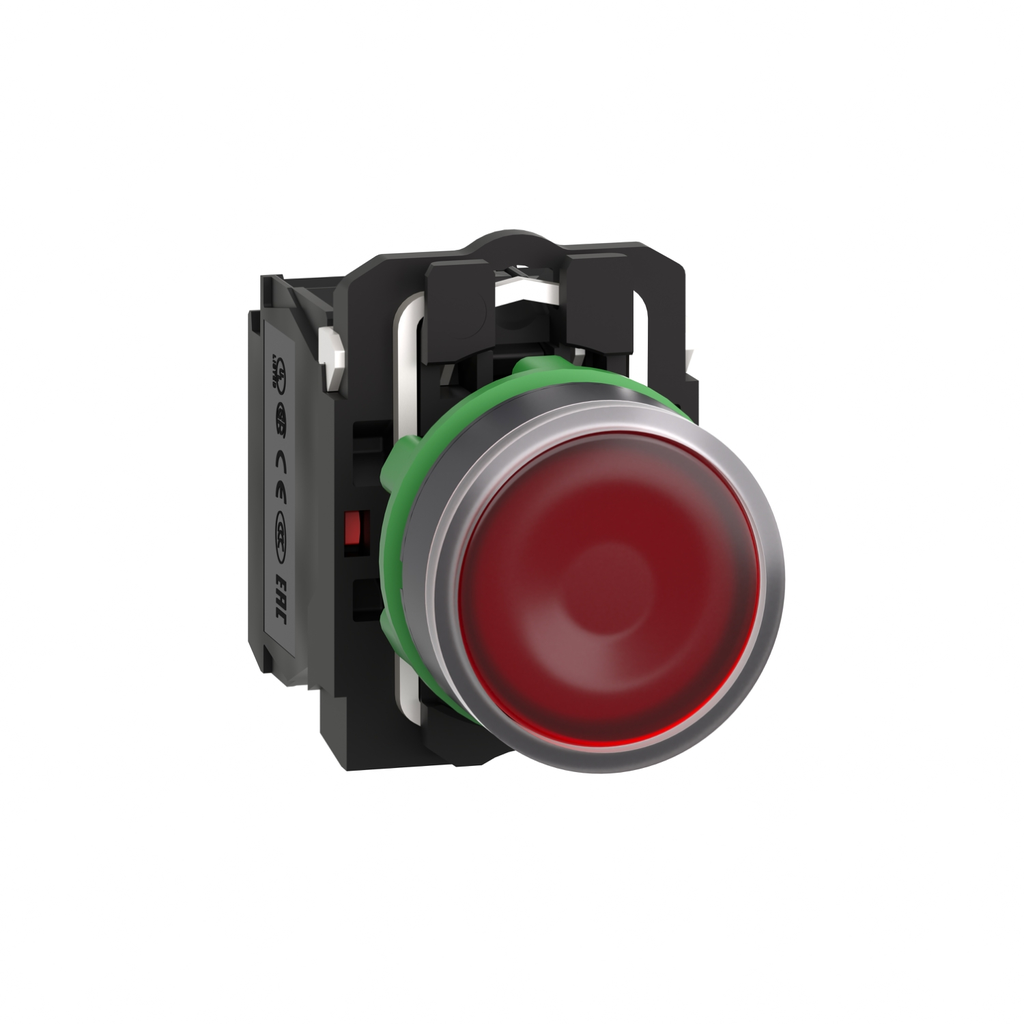

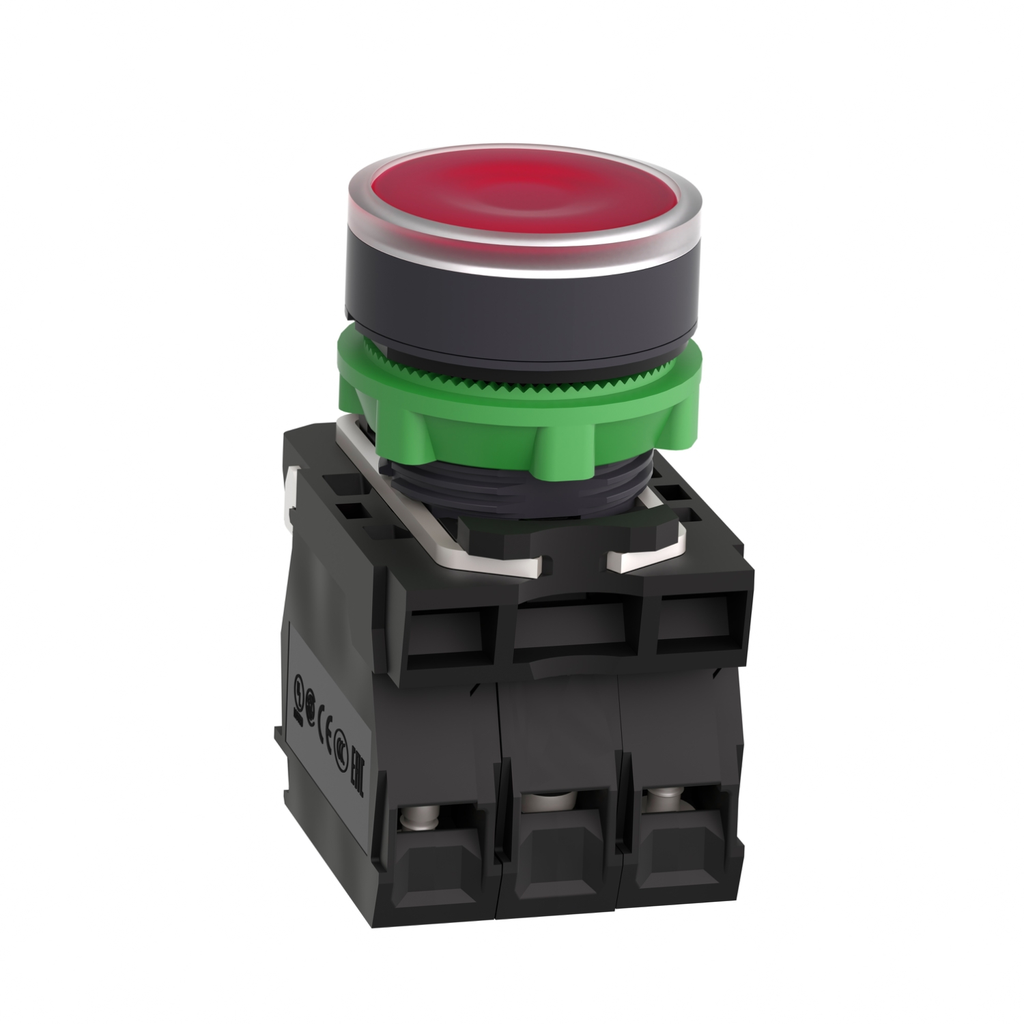

Harmony XB5, Illuminated push button, plastic, flush, red, Ø22, spring return, 24 V AC/DC, 1 NO + 1 NC

Harmony XB5, Illuminated push button, plastic, flush, red, Ø22, spring return, 24 V AC/DC, 1 NO + 1 NC

SQDXB5AW34B5 XB5AW34B5 785901384465
112.82 / EACH
  • Bezel Material: Dark Grey Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Color: Red
  • Contact Material: Silver Alloy
  • Current: 18 mA
  • Depth: 57 mm
  • Height: 42 mm
  • Net Weight: 0.056 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Product Description
  • Specifications
This Harmony XB5, illuminated modular red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Circularity Profile : ENVEOLI1710010EN
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Sustainable Offer Status : Green Premium product
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Ik Degree Of Protection : IK05 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Protective Treatment : TH
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K || IP67
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Electromagnetic Emission : class B IEC 55011
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Product Certifications : LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL || DNV
  • Complementary
    • Service Life : 100000 h at rated voltage and 25 °C
    • Mechanical Durability : 10000000 cycles
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    • Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    • Contacts Material : silver alloy (Ag/Ni)
    • Operating Travel : 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
    • Terminals Description Iso N°1 : (21-22)NC || (13-14)NO
    • Maximum Width : 30 mm
    • Signalling Type : steady
    • [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Positive Opening : with EN/IEC 60947-5-1 appendix K
    • Maximum Depth : 57 mm
    • Contacts Usage : standard contacts
    • Current Consumption : 18 mA
    • Surge Withstand : 1 kV IEC 61000-4-5
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
    • Net Weight : 0.056 kg
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Supply Voltage Limits : 19.2-30 V DC || 21.6-26.4 V AC
    • Tightening Torque : 0.8-1.2 N.m EN 60947-1
    • Maximum Height : 42 mm
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
    • Device Presentation : complete product
    • Operating Force : 3.5 N NC changing electrical state || 3.8 N
    • [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
  • Product Or Component Type : illuminated push-button
  • Cap/Operator Or Lens Colour : red
  • Bulb Base : integral LED
  • Fixing Collar Material : plastic
  • Operator Profile : red flush, unmarked
  • Contacts Type And Composition : 1 NO + 1 NC
  • Bezel Material : dark grey plastic
  • [Us] Rated Supply Voltage : 24 V
  • Light Source : protected LED
  • Shape Of Signaling Unit Head : round
  • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
  • Head Type : standard
  • Type Of Operator : spring return
  • [Us] Rated Supply Voltage : 24 V AC/DC 50/60 Hz
  • Mounting Diameter : 22 mm
  • Device Short Name : XB5
  • Range Of Product : Harmony XB5
  • Operator Additional Information : with plain lens
  • Contact Operation : slow-break
  • Sale Per Indivisible Quantity : 1
  • Contractual warranty
    • Warranty : 18 months
