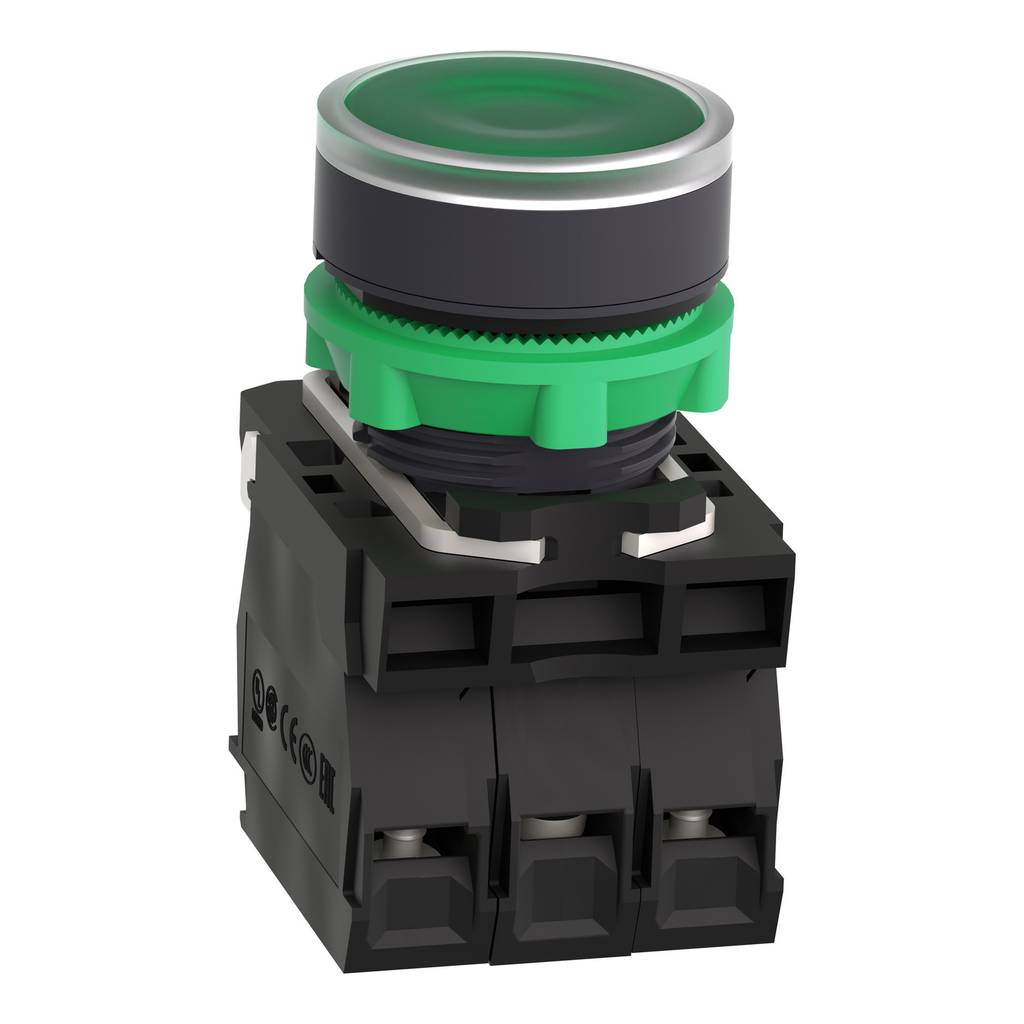

This Harmony XB5 modular illuminated push button operates with a spring return / impulse mechanism and It has a plastic bezel, a green flush cap, unmarked, and is supplied with an integral LED. It features 2 NO slow break contacts and screw-clamp terminals connection type. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 56g. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cap Operator Or Lens Color : green
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Bezel Material : dark grey plastic, dark grey plastic
• Customizable : 0, no
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
• Operating Force : 3.5 N NC changing electrical state, 3.8 N
• Operating Travel : 1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
• Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Supply Voltage Limits : 19.2-30 V DC, 21.6-26.4 V AC
• Certificate Agency : CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• [Us] Rated Supply Voltage : 24 V, 24 V AC/DC 50/60 Hz
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
• Terminals Description Iso N°1 : (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
• Carbon Footprint Of The Distribution Phase [A4] : 0.01614217468805704, 0 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 0.1 kg CO2 eq., 0.1294488413547237
• Carbon Footprint Of The Installation Phase [A5] : 0.015522281639928697, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.4 kg CO2 eq., 0.39035294117647057
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 15 kg CO2 eq., 14.919437788018431
• Local Data Status : Publishable
• Local Publishable Date : 2026-03-26
• Return Indicator : Y
• Future Imap : 58.78
• Future Msrp : 76.10
• Stocking Flag : N
• Stock Policy : 2
• Weee Scope : Out
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 5
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 13 %
• Average Percentage Of Recycled Plastic Content : 22 %
• Bulb Base : integral LED
• Compatibility Code : XB5
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 2 NO
• Contacts Usage : standard contacts
• Current Consumption : 18 mA
• Device Short Name : XB5
• Electromagnetic Emission : class B IEC 55011
• Fixing Collar Material : plastic
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Light Source : universal LED
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22.5 mm
• Operator Additional Information : with plain lens
• Operator Profile : green flush, unmarked
• Overvoltage Category : class II conforming to IEC 60536
• Positive Opening : with IEC 60947-5-1 appendix K
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : illuminated push-button
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Service Life : 100000 h at rated voltage and 25 °C
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Total Lifecycle Carbon Footprint : 15 kg CO2 eq.
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : green
• Contacts Composition : 2 NO
• Supply Voltage Num 22 Supply Voltage Num : 24 V
• Pep Code : ENVPEP2404014EN
• Database Version : 2022-01
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 10
• Energy Model - Manufacturing [A1-a3] : Electricity Mix; Production mix; Low voltage; FR
• Energy Model - Installation [A5] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - Use [B6] : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Production mix; Low voltage; UE-27
• Height Nominal : 42 mm
• Width Nominal : 30 mm
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• Cap/Operator Or Lens Colour : green
• Short-circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 54.000 g
• Product Repair Index - Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Take-back : No
• Warranty (In Months) : 18
• Environment Attributes Main
• Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Ip Degree Of Protection : IP66 IEC 60529, IP69, IP69K, IP67
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : No
• Recycled Metal Content At Cr Level : 13 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 15.470904026877612
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014EN
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : illuminated push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC001028
• ETIM 9 : EC001028
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Brazil, France, Mexico
• Depth : 57 mm
• Overview Attributes
• Device Presentation : complete product
