SQUARE D

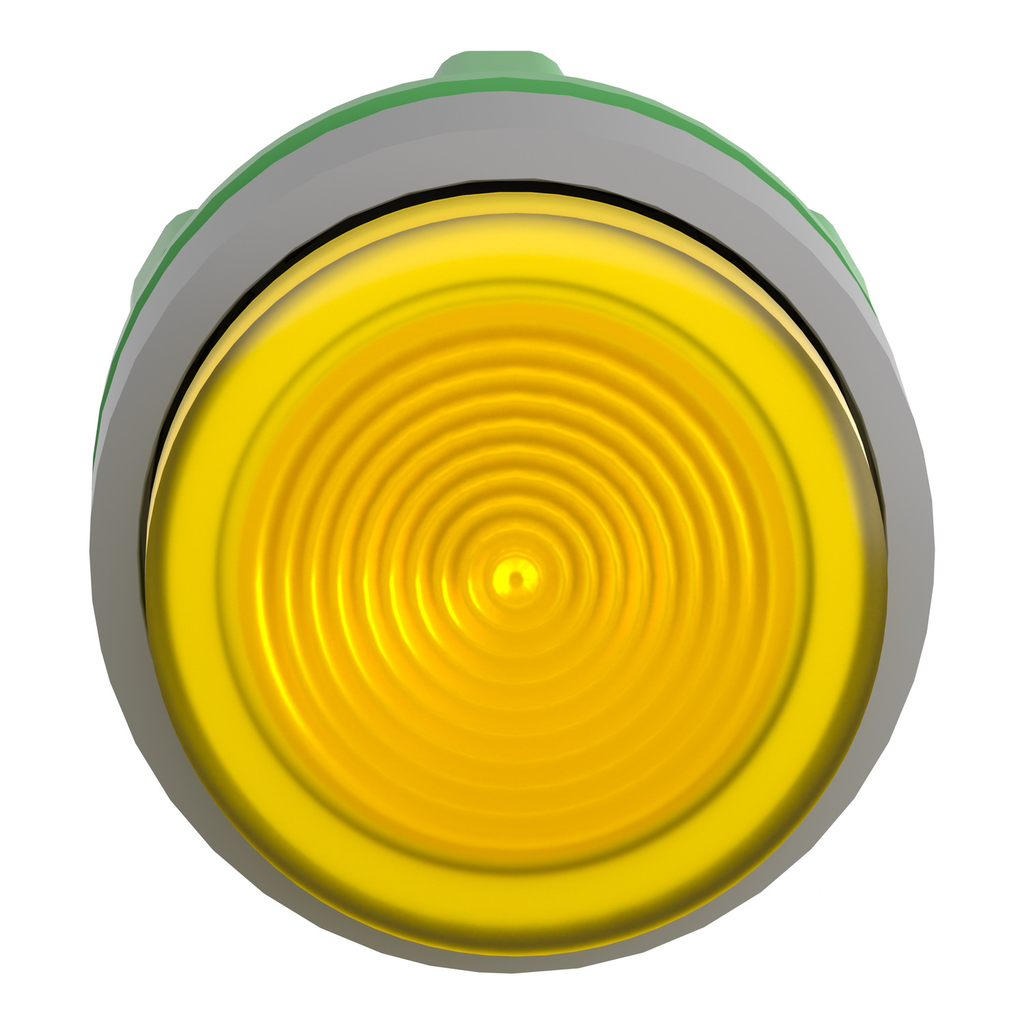

Head for illuminated push button, Harmony XB5, grey bezel, yellow projecting, 22mm, universal LED, grooved lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW183SC0 3606489769802
20.06 / EA
http://schema.org/OutOfStock

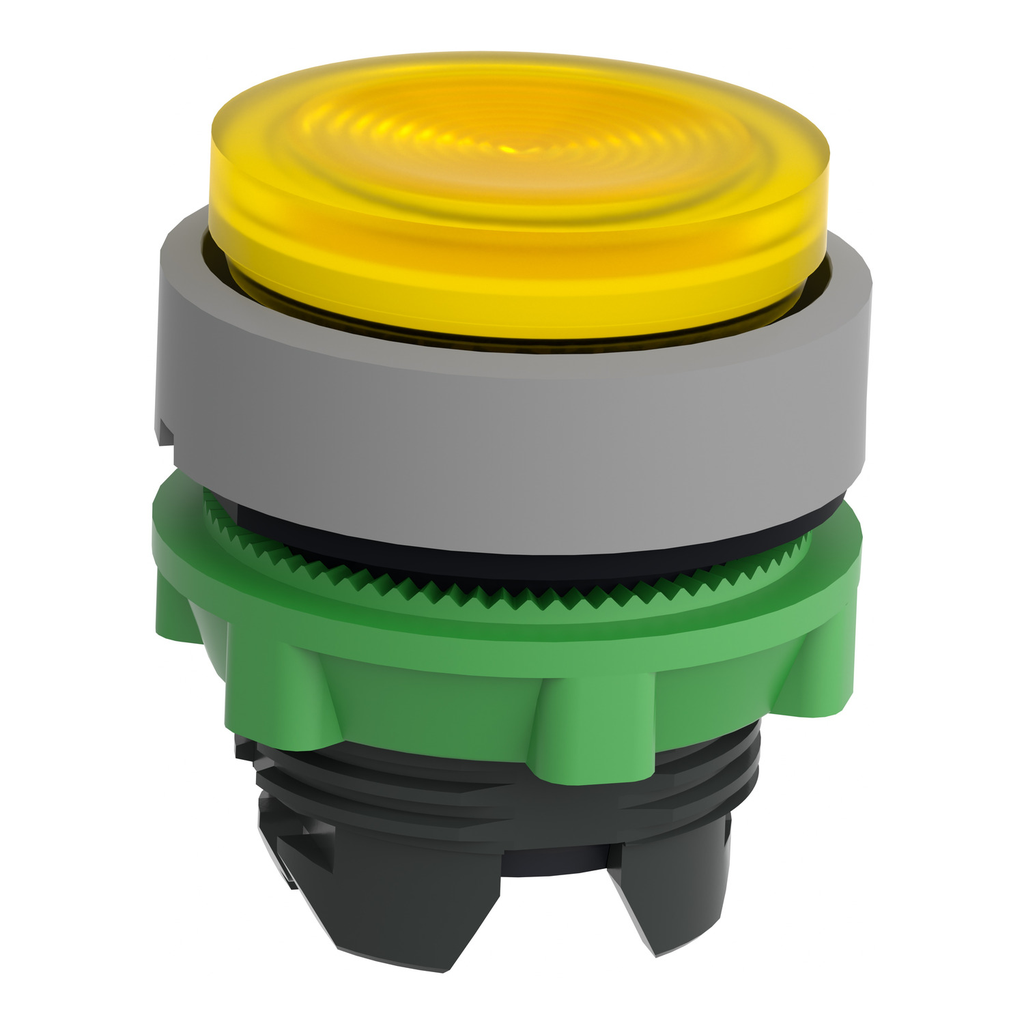

Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, yellow projecting, 22mm, universal LED, grooved lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, GB 14048.5, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK05 IEC 62262
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || GB 14048.5 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529
    • Product Certifications : GL || UL Listed || LROS (Lloyds register of shipping) || CSA || BV || DNV
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TC
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Offer Sustainability
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Toxic Heavy Metal Free : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Group Of Product : proj push with inser of legend
    • Marking : unmarked
    • Net Weight : 0.017 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Device Presentation : basic sub-assemblies
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 33 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Main Group : illum push-button
    • Cap/Operator Or Lens Colour : yellow
    • Cad Overall Height : 29 mm
  • Specifications
    • Operator Additional Information : with grooved lens
    • Operator Profile : yellow projecting, unmarked
    • Product Compatibility : universal LED
    • Bezel Material : plastic colour plated grey
    • Mounting Diameter : 22 mm
    • Environmental Characteristic : high ambient lighting environment
    • Device Short Name : ZB5
    • Product Or Component Type : head for illuminated push-button
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Type Of Operator : spring return
    • Shape Of Signaling Unit Head : round
