SQUARE D

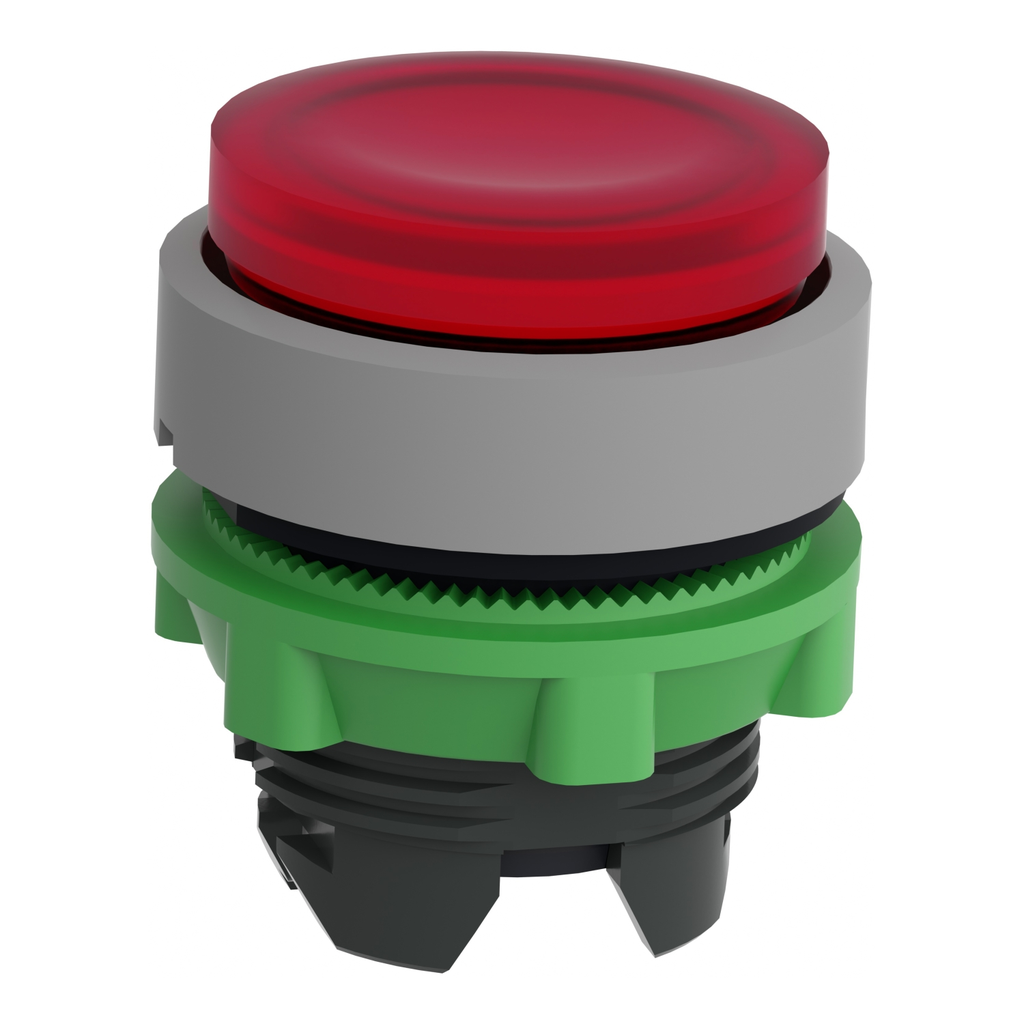

Head for illuminated push button, Harmony XB5, grey bezel, red projecting, 22mm, universal LED, push-push, unmarked

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AH43C0 3606489766924
37.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, red projecting, 22mm, universal LED, push-push, unmarked-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Standards : IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || IEC 60947-5-4 || JIS C8201-1
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Electrical Shock Protection Class : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ik Degree Of Protection : IK05 IEC 50102
    • Product Certifications : GL || DNV || CSA || UL Listed || LROS (Lloyds register of shipping) || BV
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Protective Treatment : TH
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ambient Air Temperature For Operation : -25-70 °C
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Cad Overall Depth : 33 mm
    • Mechanical Durability : 5000000 cycles
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.017 kg
    • Device Presentation : basic element
    • Cad Overall Height : 29 mm
  • Specifications
    • Bezel Material : plastic colour plated grey
    • Product Compatibility : universal LED
    • Operator Profile : red projecting, unmarked
    • Product Or Component Type : head for illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Sale Per Indivisible Quantity : 1
    • Head Type : standard
    • Device Short Name : ZB5
    • Type Of Operator : push-push
    • Mounting Diameter : 22 mm
    • Range Of Product : Harmony XB5
