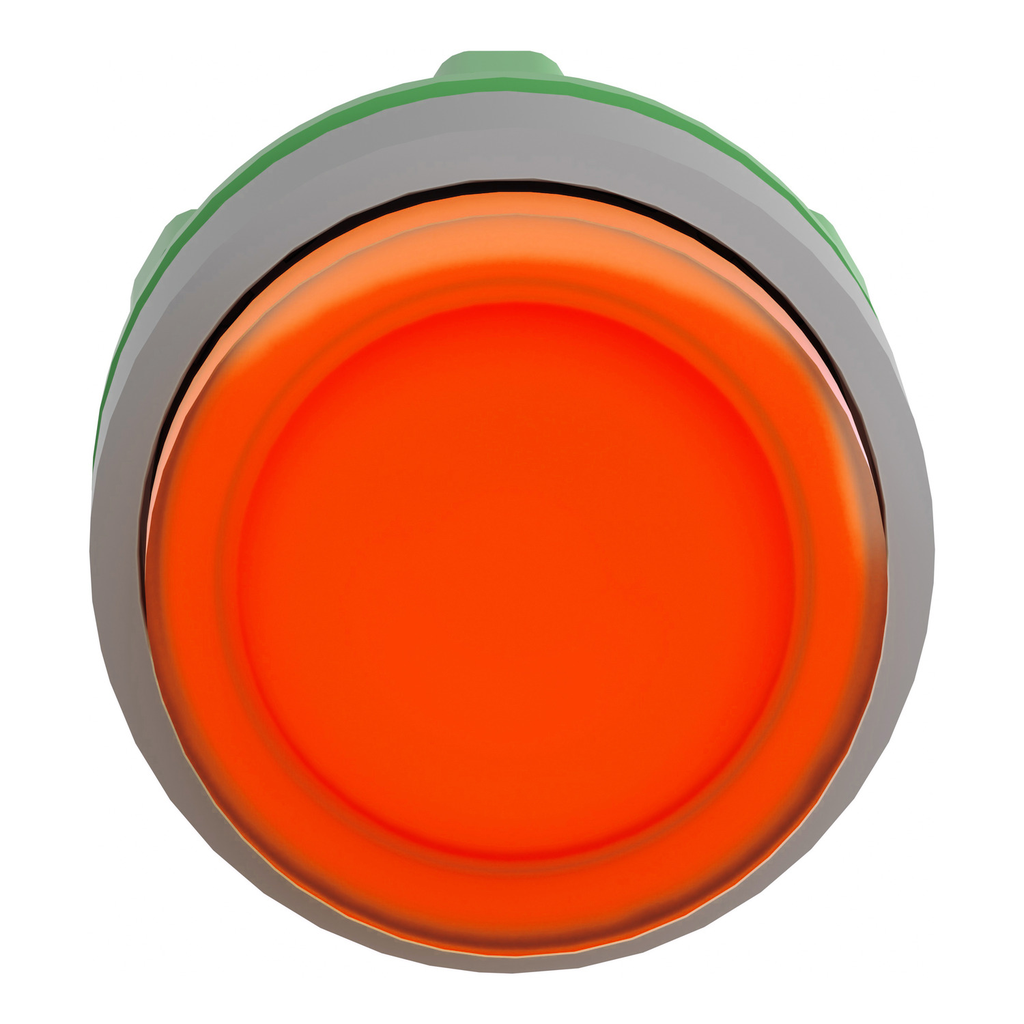

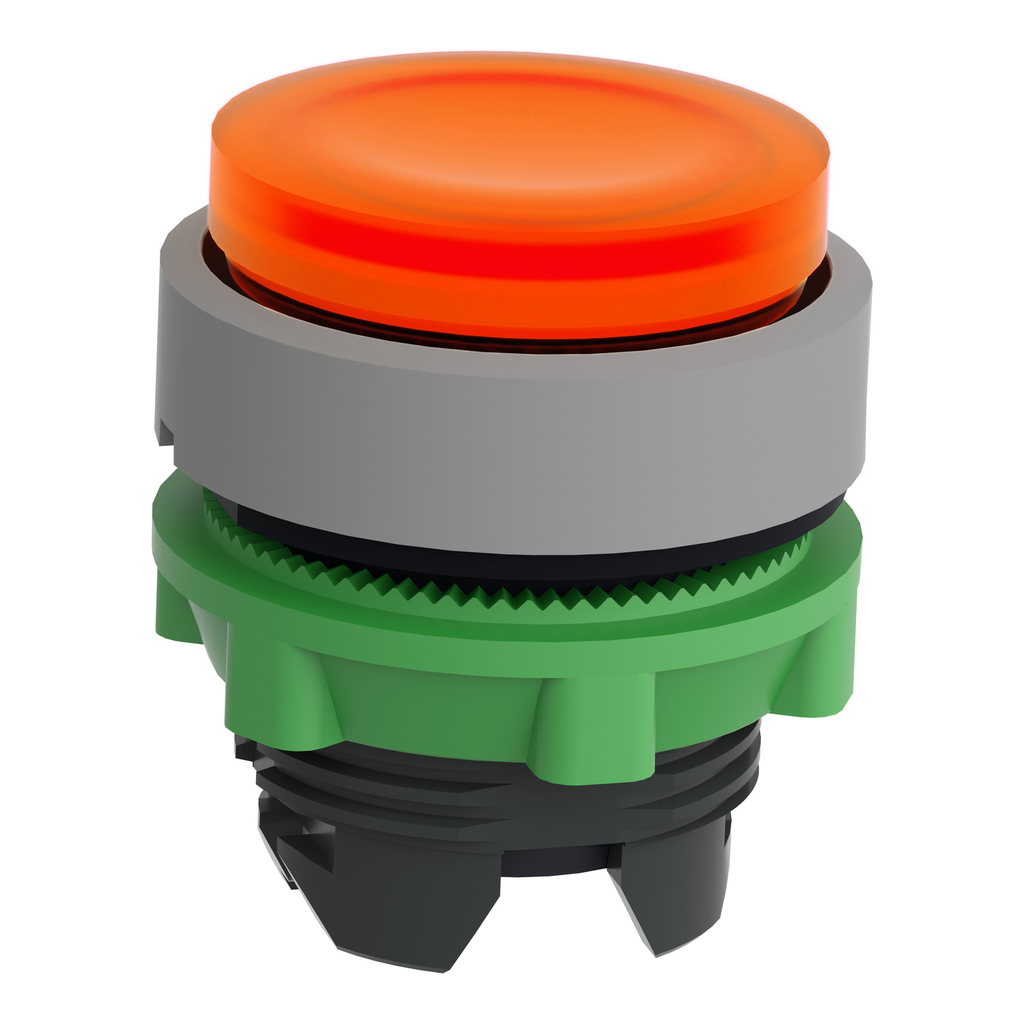

Head for illuminated push button, Harmony XB5, grey bezel, orange projecting, 22mm, universal LED, spring return, plain lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW153C0 ZB5AW153C0 3606489769680
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, orange projecting, 22mm, universal LED, spring return, plain lens-2
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • M1 6 single front mounting integral LED
    • M2 6 single and double front mounting integral LED
    • M6 2 single front mounting integral LED and transformer
    • M10 2 single front mounting integral LED
    • MF1 2 single front mounting integral LED
    • MR1 2 single rear mounting integral LED
  • IP Degree Of Protection
    • IP66 IEC 60529
  • Standards
    • UL 508
    • CSA C22.2 No 14
    • IEC 60947-5-4
    • IEC 60947-5-1
    • JIS C8201-5-1
    • IEC 60947-1
    • GB 14048.5
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Customizable
    • no
    • 1
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • orange projecting, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Physical Attributes
    • Cad Overall Depth : 33 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • B2B Bullet Point 1 : Quick and easy assembly and disassembly
    • B2B Bullet Point 2 : Robustness to withstand harsh environments
    • B2B Bullet Point 3 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
    • B2B Bullet Point 4 : Excellent mechanical connection with operator head
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2404014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : L - LOB initialized
    • Bezel Material : plastic colour plated grey
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • GCR Bridge : ZB5AWCUST02
    • Group Of Product : proj push integral LED
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum push-button
    • Mounting Diameter : 22 mm
    • Package Weight Lbs : 17 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Relationship Type : Compatible relationship
    • Accessories : ZB5AZ905
    • Pep Code : ENVPEP2404014EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749889&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2404014EN
    • Environmental Disclosure : ENVPEP2404014EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2404014EN
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic sub-assemblies
