Head for illuminated push button, Harmony XB5, grey bezel, green projecting, 22mm, universal LED, push-push, unmarked

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AH33C0 3606489766887
37.60 / EA
http://schema.org/OutOfStock

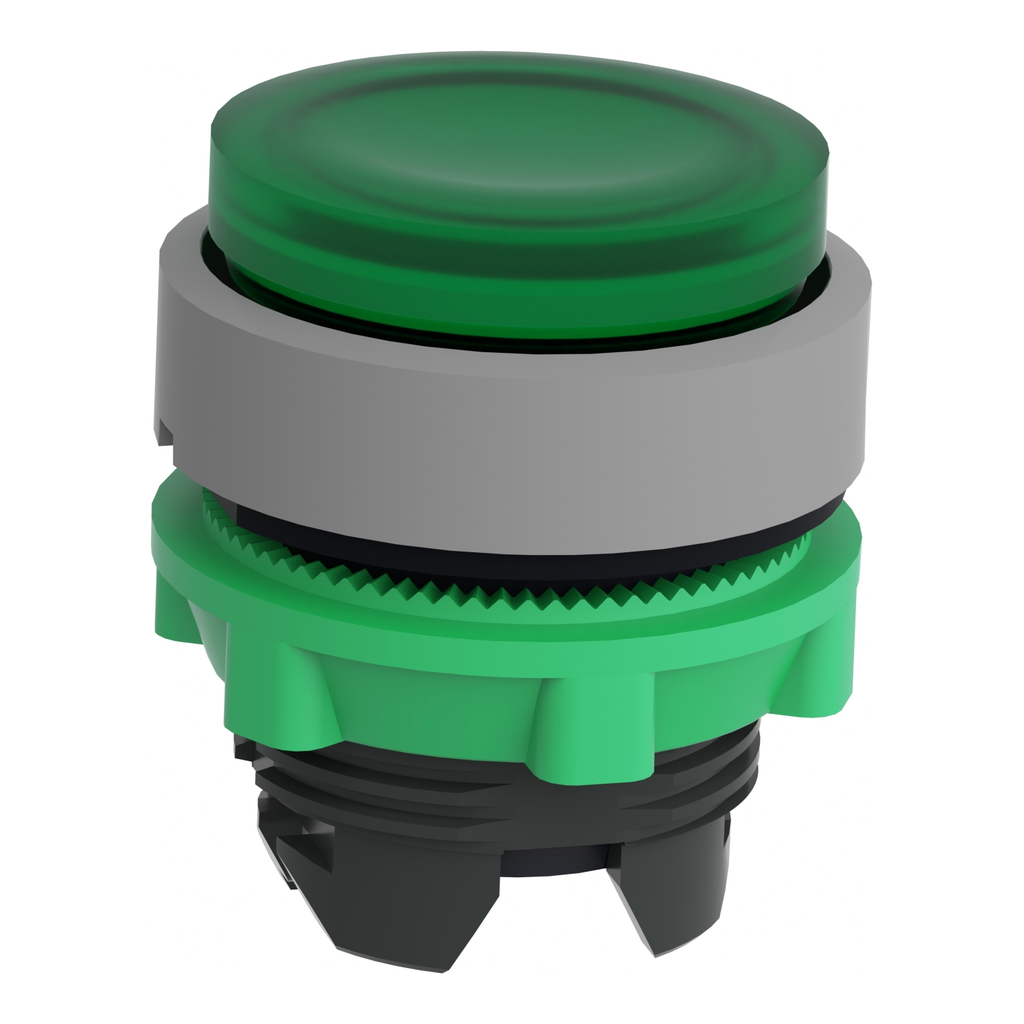

Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, green projecting, 22mm, universal LED, push-push, unmarked-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK05 IEC 50102
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -25-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : UL Listed || GL || BV || DNV || CSA || LROS (Lloyds register of shipping)
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Electrical Shock Protection Class : class II IEC 60536
  • Offer Sustainability
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.017 kg
    • Cad Overall Height : 29 mm
    • Electrical Composition Code : M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Mechanical Durability : 5000000 cycles
    • Device Presentation : basic element
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 33 mm
  • Specifications
    • Head Type : standard
    • Range Of Product : Harmony XB5
    • Sale Per Indivisible Quantity : 1
    • Type Of Operator : push-push
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 22 mm
    • Operator Profile : green projecting, unmarked
    • Product Compatibility : universal LED
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Product Or Component Type : head for illuminated push-button
