Head for illuminated push button, Harmony XB5, plastic, orange mushroom 40mm, 22mm, latching turn to release, clear boot

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW753 ZB5AW753 3389110666861
60.40 / EA
http://schema.org/OutOfStock

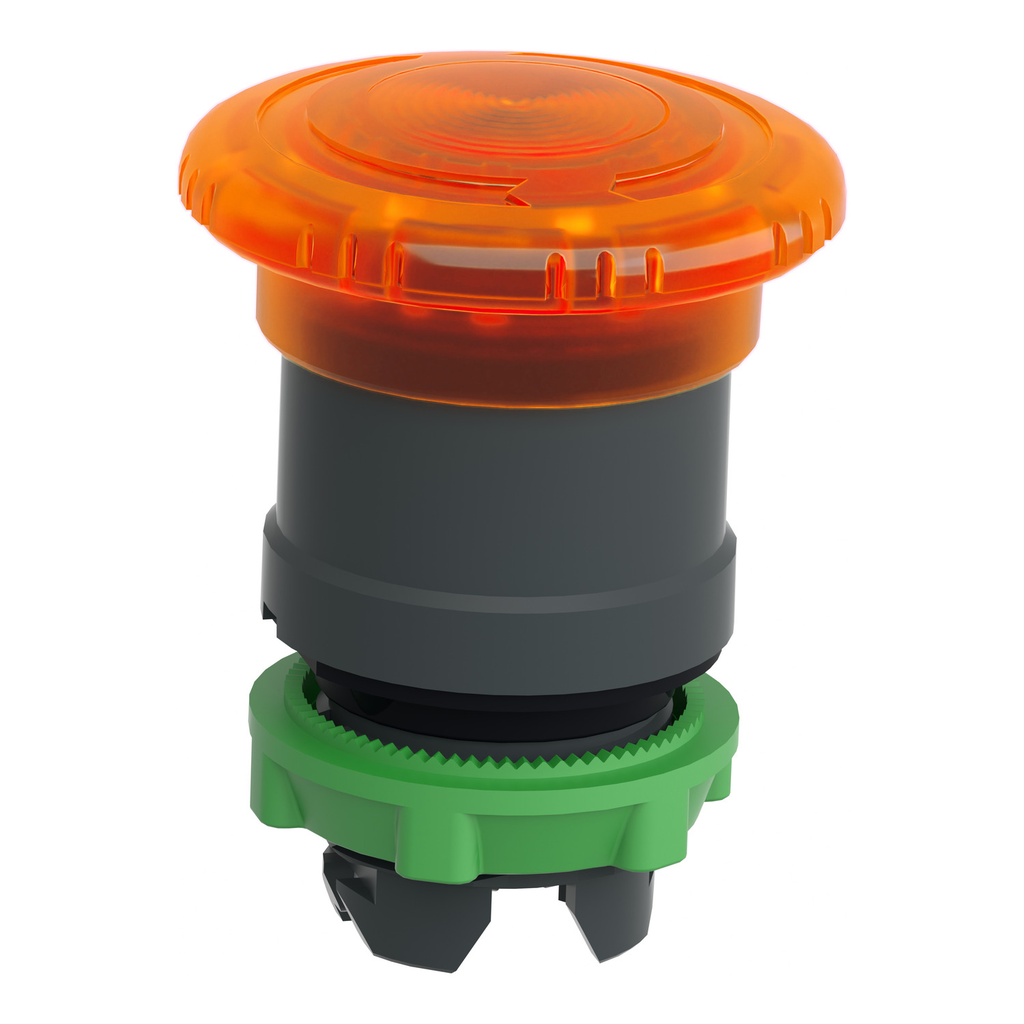

Mayer-DDS-Head for illuminated push button, Harmony XB5, plastic, orange mushroom 40mm, 22mm, latching turn to release, clear boot-2
  • Bezel Material: Plastic
  • Country of Origin: France
  • Head Type: Standard
  • Height: 40 mm
  • Net Weight: 0.022 kg
  • Warranty Length: 18 mth
  • Weight: 0.022 kg
  • Width: 40 mm
This orange illuminated 40mm mushroom shape button head for universal LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This orange illuminated 40mm mushroom shape button head for universal LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK05 conforming to IEC 62262
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : GB 14048.5 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II conforming to IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2404014EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2404014EN
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.2314919702
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Main Group : mushroom head
    • Electrical Composition Code : M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Net Weight : 0.022 kg
    • Cad Overall Height : 40 mm
    • Device Presentation : basic sub-assemblies
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cap/Operator Or Lens Colour : orange
    • Mechanical Durability : 300000 cycles
    • Marking : unmarked
    • Station Name : XALD 1 cut-out || XALK 1 cut-out
    • Cad Overall Width : 40 mm
    • Cad Overall Depth : 50 mm
    • Group Of Product : mush. turn to release illum
  • Specifications
    • Country of Origin : France
    • Width : 40 mm
    • Height : 40 mm
    • Weight : 0.022 kg
    • Reset : turn to release
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : latching
    • Product Or Component Type : head for illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Operator Profile : orange mushroom Ø 40 mm, unmarked
    • Product Compatibility : universal LED
    • Device Short Name : ZB5
