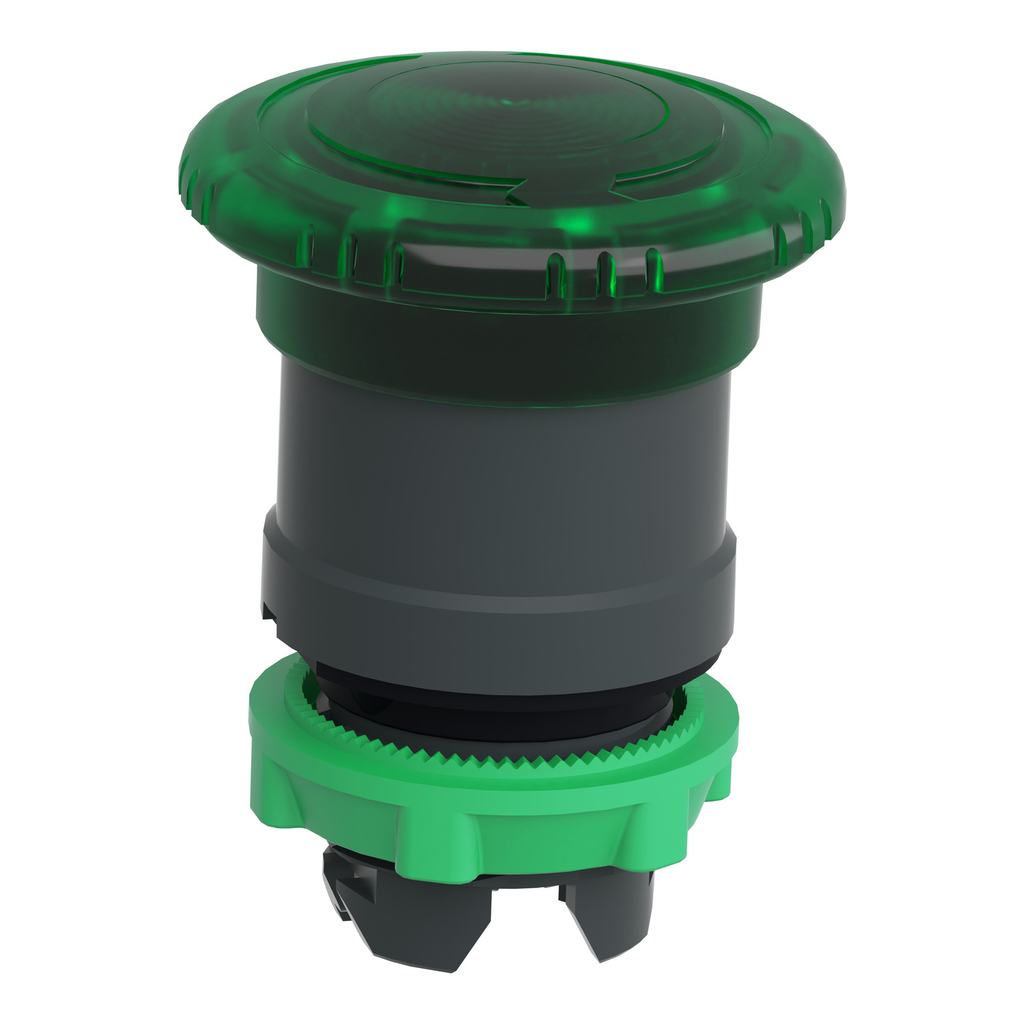

This green illuminated 40mm mushroom shape button head for universal LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW733_CAD
• Physical Attributes
• Cad Overall Depth : 50 mm
• Cad Overall Height : 40 mm
• Cad Overall Width : 40 mm
• Cap Operator Or Lens Color : green
• Conformance Attributes
• Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : IEC 60947-1, GB 14048.5, UL 508, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-5-1, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Bezel Material : dark grey plastic, dark grey plastic
• Customizable : 0, no
• Electrical Composition Code : M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED, M3 4 single front mounting integral LED, M4 4 single and double front mounting integral LED
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1 cut-out, XALK 1 cut-out
• Carbon Footprint Of The Distribution Phase A4 : 0.006341568627450981, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.05085490196078431
• Carbon Footprint Of The Installation Phase A5 : 0.006098039215686274, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.15335294117647058
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for illuminated push button, Harmony XB5, plastic, green mushroom 40mm, 22mm, latching turn to release, clear boot
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 16 %
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Group Of Product : mush. turn to release illum
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : mushroom head
• Marking : unmarked
• Mechanical Durability : 300000 cycles
• Mounting Diameter : 22 mm
• Operator Profile : green mushroom Ø 40 mm, unmarked
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Protective Treatment : TC
• Range Of Product : Harmony XB5
• Reset : turn to release
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Software Version : v5.9.4
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.2 kg CO2 eq.
• Type Of Operator : latching
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : green
• X C Product : mush. turn to release illum
• Operator Profile 1 Cap Operator Or Lens Color : green
• Pep Code : ENVPEP2404014_V1
• Database Version : 2022-01
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60529, IP69, IP69K
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.21664745098039212
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014_V1
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : universal LED
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014_V1
• Pep Verification Date : 2024-06-09
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC001038
• ETIM 9 : EC001038
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic sub-assemblies
