SQUARE D

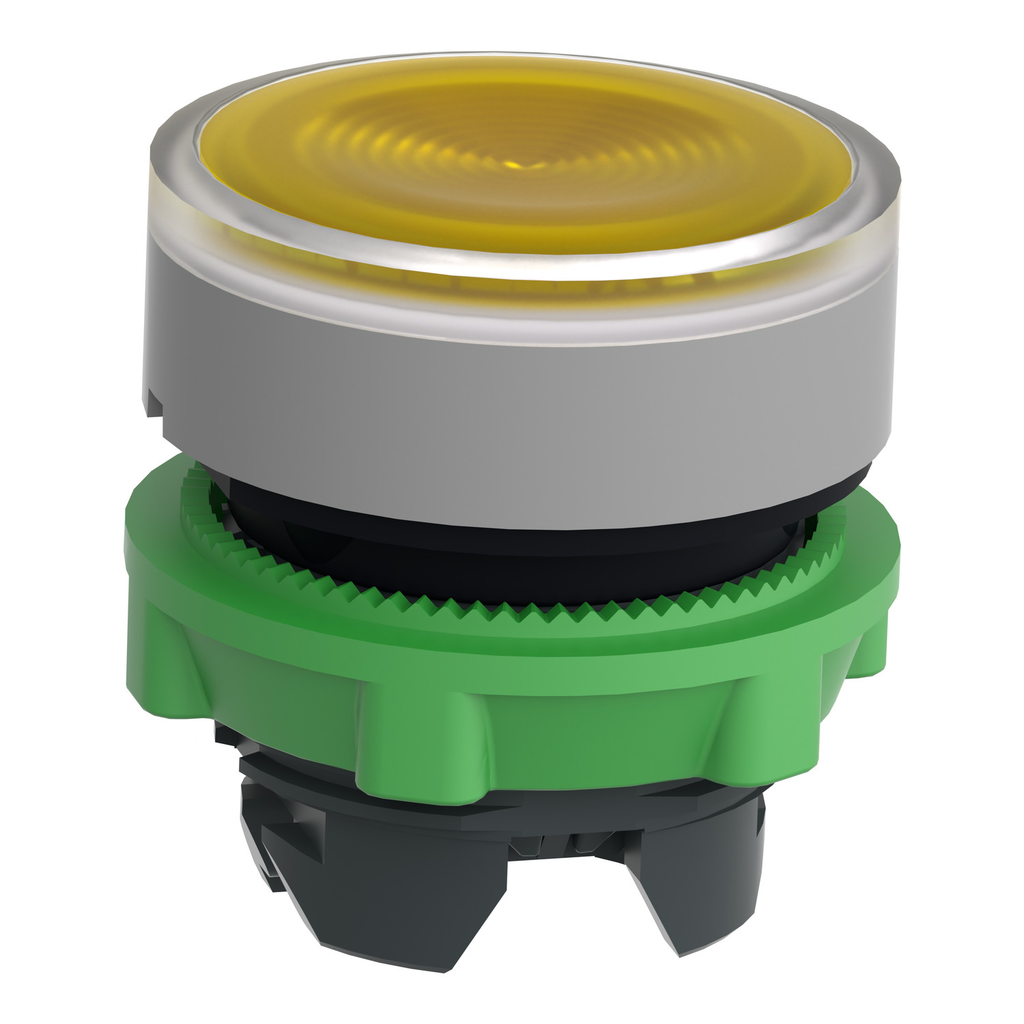

Head for illuminated push button, Harmony XB5, grey bezel, yellow flush, 22mm, universal LED, spring return, grooved lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW383SC0 3606489770228
15.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, yellow flush, 22mm, universal LED, spring return, grooved lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK05 EN 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Standards : EN/IEC 60947-5-1 || GB 14048.5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-1
    • Product Certifications : CSA || DNV || LROS (Lloyds register of shipping) || GL || UL Listed || BV
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TC
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Storage : -40-70 °C
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Marking : unmarked
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cap/Operator Or Lens Colour : yellow
    • Cad Overall Depth : 30 mm
    • Cad Overall Height : 29 mm
    • Group Of Product : flush push integral LED
    • Mechanical Durability : 10000000 cycles
    • Main Group : illum push-button
    • Net Weight : 0.017 kg
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Cad Overall Width : 29 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Device Presentation : basic sub-assemblies
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Type Of Operator : spring return
    • Product Or Component Type : head for illuminated push-button
    • Operator Additional Information : with grooved lens
    • Operator Profile : yellow flush, unmarked
    • Device Short Name : ZB5
    • Product Compatibility : universal LED
    • Environmental Characteristic : high ambient lighting environment
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 22 mm
    • Bezel Material : plastic colour plated grey
