SQUARE D

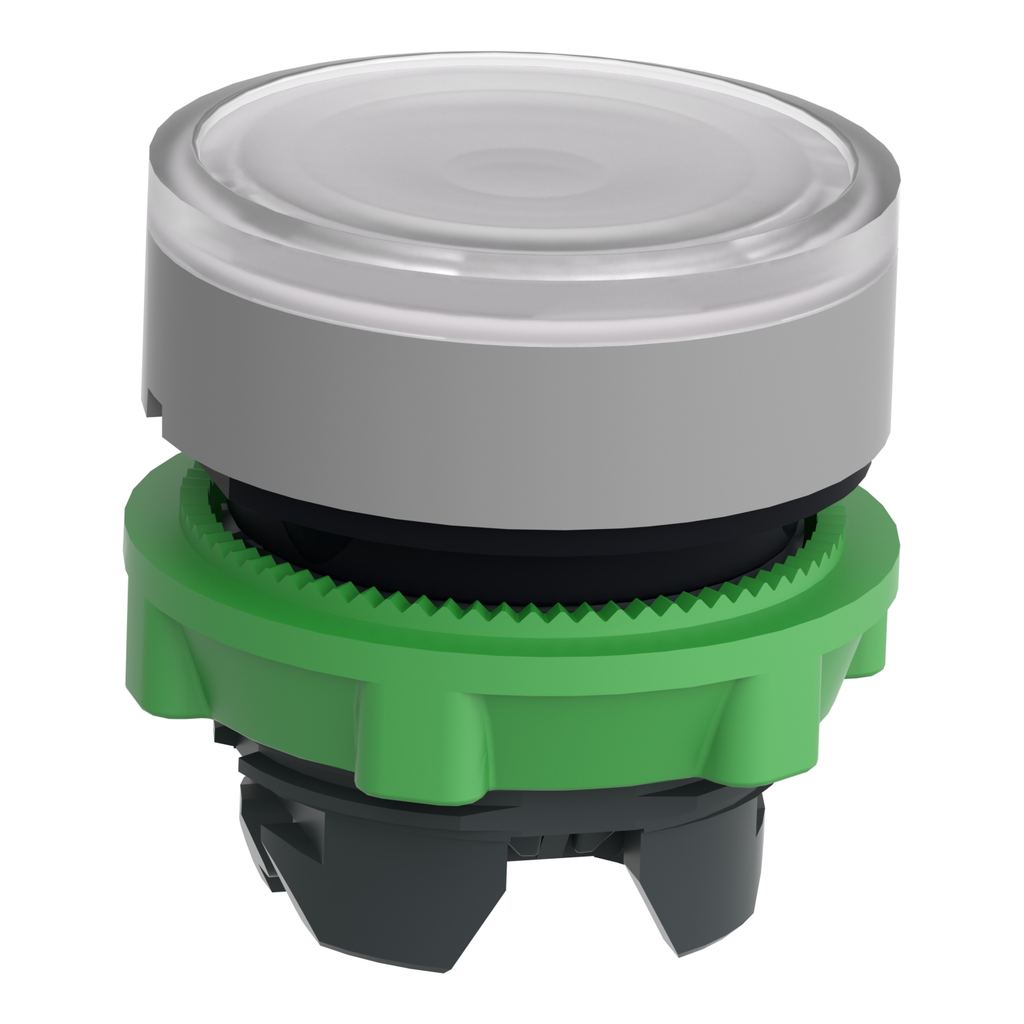

Head for illuminated push button, Harmony XB5, grey bezel, white flush, 22mm, universal LED, spring return, plain lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW313C0 3606489769826
14.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, white flush, 22mm, universal LED, spring return, plain lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Standards : UL 508 || GB 14048.5 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || JIS C8201-1
    • Ik Degree Of Protection : IK05 EN 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || BV || GL
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Protective Treatment : TC
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Main Group : illum push-button
    • Device Presentation : basic sub-assemblies
    • Cad Overall Width : 29 mm
    • Group Of Product : flush push integral LED
    • Net Weight : 0.017 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Cad Overall Height : 29 mm
    • Marking : unmarked
    • Cad Overall Depth : 30 mm
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Cap/Operator Or Lens Colour : white
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
  • Specifications
    • Operator Additional Information : with plain lens
    • Sale Per Indivisible Quantity : 1
    • Product Compatibility : universal LED
    • Type Of Operator : spring return
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Bezel Material : plastic colour plated grey
    • Operator Profile : white flush, unmarked
    • Product Or Component Type : head for illuminated push-button
    • Head Type : standard
    • Device Short Name : ZB5
    • Mounting Diameter : 22 mm
