SQUARE D

Head for illuminated push button, Harmony XB5, grey bezel, white flush, 22mm, universal LED, spring return, grooved lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW313SC0 3606489769840
15.59 / EA
http://schema.org/OutOfStock

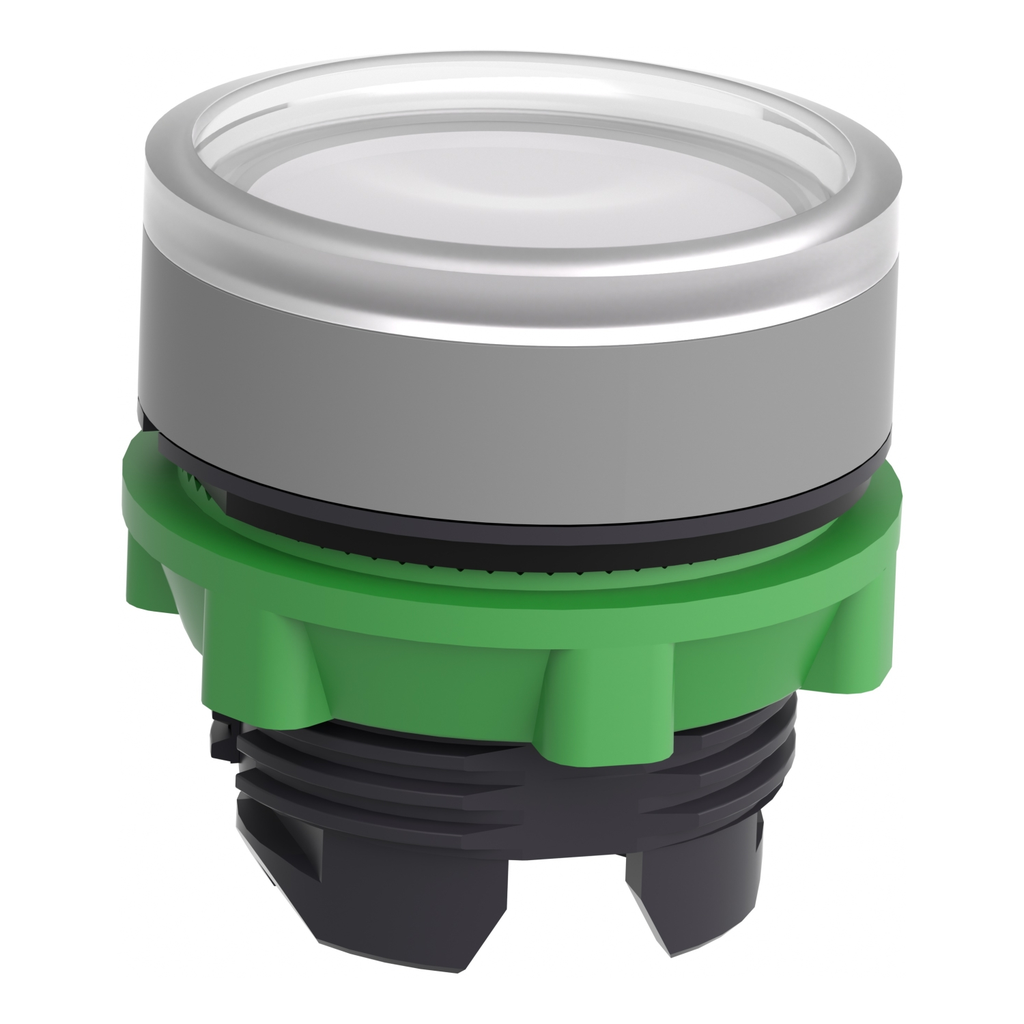

Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, white flush, 22mm, universal LED, spring return, grooved lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Product Certifications : DNV || LROS (Lloyds register of shipping) || CSA || GL || BV || UL Listed
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-5-1 || GB 14048.5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Protective Treatment : TC
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK05 EN 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Offer Sustainability
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Toxic Heavy Metal Free : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Main Group : illum push-button
    • Cad Overall Height : 29 mm
    • Device Presentation : basic sub-assemblies
    • Net Weight : 0.017 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Depth : 30 mm
    • Marking : unmarked
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cap/Operator Or Lens Colour : white
    • Group Of Product : flush push integral LED
  • Specifications
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Type Of Operator : spring return
    • Operator Additional Information : with grooved lens
    • Product Compatibility : universal LED
    • Operator Profile : white flush, unmarked
    • Shape Of Signaling Unit Head : round
    • Environmental Characteristic : high ambient lighting environment
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for illuminated push-button
