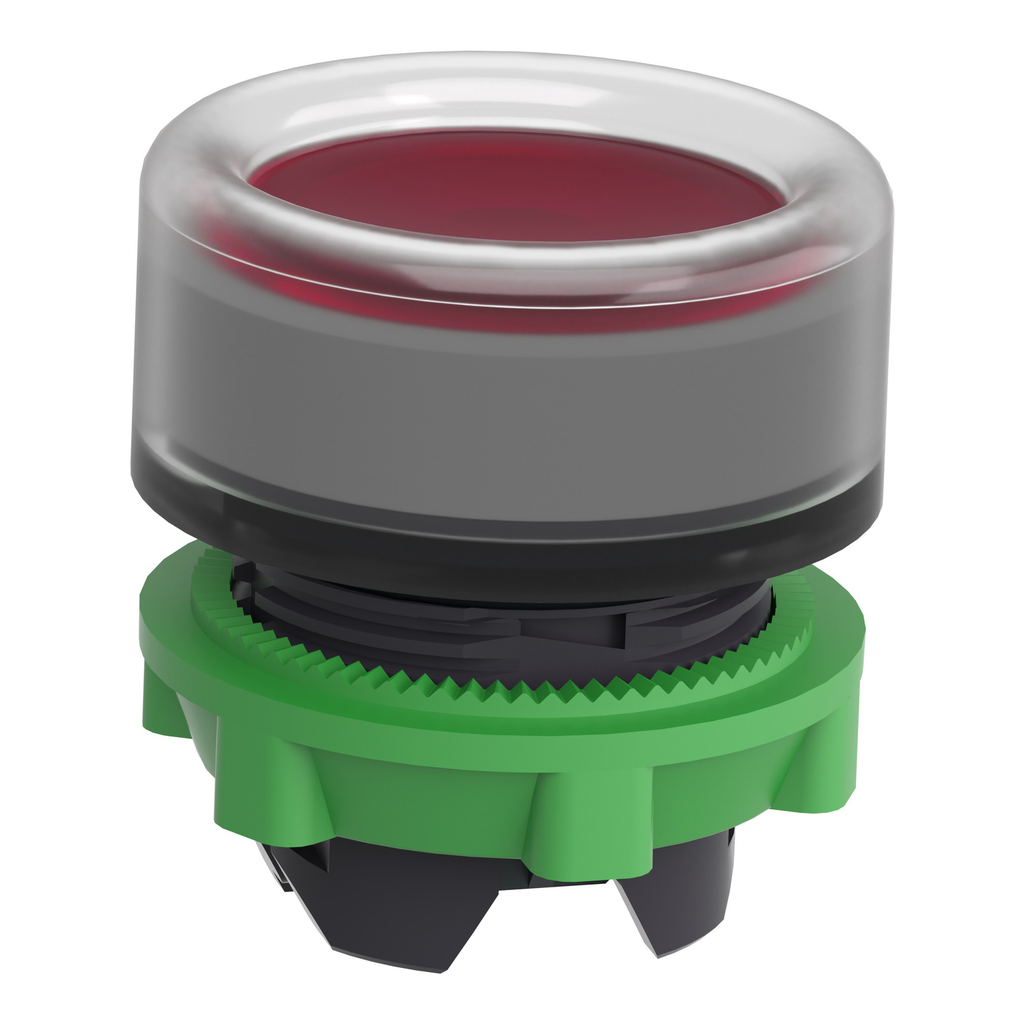

This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

• Physical Attributes
• Cad Overall Depth : 37 mm
• Cad Overall Height : 30 mm
• Cad Overall Width : 30 mm
• Conformance Attributes
• Standards : IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, GB 14048.5, UL 508, IEC 60947-5-4, JIS C8201-1
• Important Information Attributes
• Customizable : no, 1
• Electrical Composition Code : M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED
• Operator Profile : red flush, unmarked, red flush, unmarked, red flush, unmarked
• Overvoltage Category : class II conforming to IEC 60536, class II conforming to IEC 60536
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALD 1...5 cut-outs, XALK 2...5 cut-outs, XALK 2...5 cut-outs
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• GCR Bridge : ZB5AWCUST08
• Group Of Product : flush push integral LED
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum push-button
• Mounting Diameter : 22 mm
• Package Weight Lbs : 20.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : spring return
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2404014EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014EN
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Overview Attributes
• Device Presentation : basic sub-assemblies
