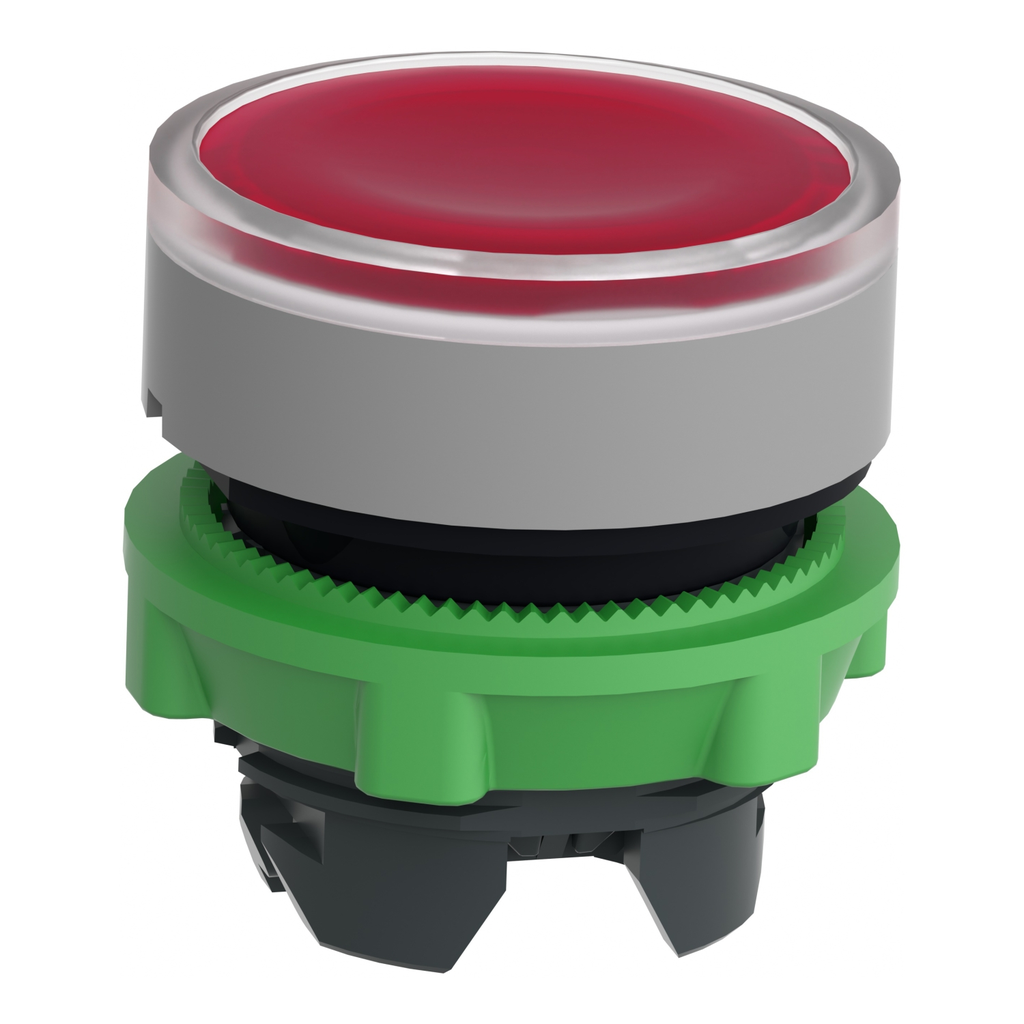

Head for illuminated push button, Harmony XB5, grey bezel, red flush, 22mm, universal LED, for insertion of legend

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AA48C0 ZB5AA48C0 3606489762506
11.91 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, red flush, 22mm, universal LED, for insertion of legend-2
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Standard
This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • M1 6 single front mounting integral LED
    • M2 6 single and double front mounting integral LED
    • M6 2 single front mounting integral LED and transformer
    • M10 2 single front mounting integral LED
    • MF1 2 single front mounting integral LED
    • MR1 2 single rear mounting integral LED
    • C3 6 single front mounting
    • C4 6 single and double front mounting
    • C14 2 single front mounting
    • SF2 2 single front mounting
    • SR2 2 single rear mounting
  • CAD
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18.stp
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-back.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-back.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-bottom.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-bottom.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-front.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-front.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-isometric.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-isometric.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-left.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-left.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-right.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-right.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-top.DWG
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA18_NEW_2024&p_File_name=ZB5AA18_2D-top.DXF
    • https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AA48C0_3DCAD
  • IP Degree Of Protection
    • IP66 IEC 60529
    • IP67
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • IEC 60947-5-1
    • UL 508
    • CSA C22.2 No 14
    • GB 14048.5
    • IEC 60947-1
    • JIS C8201-5-1
    • IEC 60947-5-4
    • JIS C8201-1
  • Station Name
    • XALD 1...5 cut-outs
    • XALK 2...5 cut-outs
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Accessories
    • ZB5AZ905
    • ZBY2101
    • ZBYLEG304001
    • ZBYP2101
    • ZBPA
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Customizable
    • 1
    • no
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • red flush, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Physical Attributes
    • Cad Overall Depth : 30 mm
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
  • Important Information Attributes
    • B2B Bullet Point 1 : Compatible with universal LED block to be used for all colors
    • B2B Bullet Point 2 : Improved color intensity and brightness
    • B2B Bullet Point 3 : Quick and easy assembly and disassembly
    • B2B Bullet Point 4 : Robustness to withstand harsh environments
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2303008EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic colour plated grey
    • Compatibility Code : ZB5
    • Device Short Name : ZB5
    • GCR Bridge : ZB5AACUST05
    • Group Of Product : flush push with inser of legend
    • Head Type : standard
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum push-button
    • Mounting Diameter : 22 mm
    • Package Weight Lbs : 20.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : No
    • Type Of Operator : spring return
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2303008EN
    • Nbr Of Units In Pkg : 1
    • Warranty In Months : 18
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495749391&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2303008EN
    • Environmental Disclosure : ENVPEP2303008EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2303008EN
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
