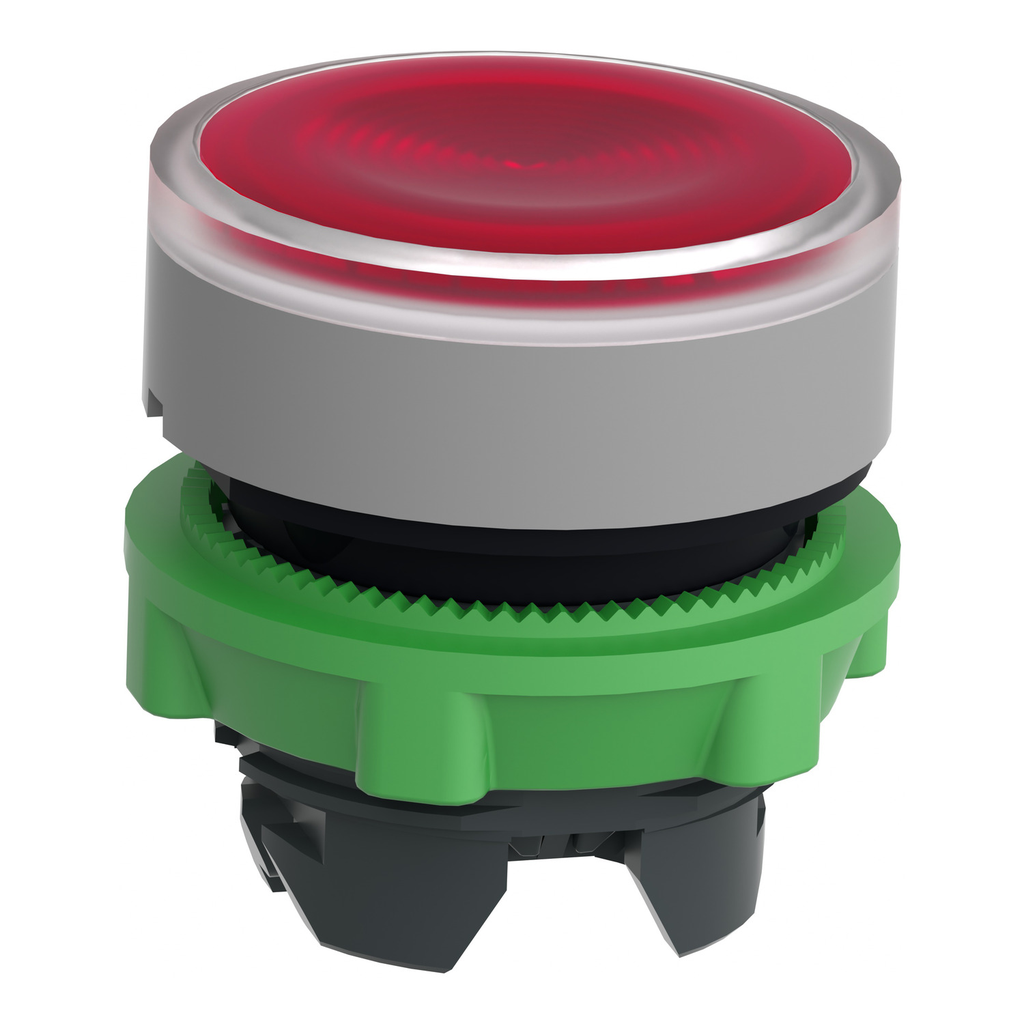

Head for illuminated push button, Harmony XB5, grey bezel, red flush, 22mm, universal LED, spring return, grooved lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW343SC0 3606489770006
15.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, red flush, 22mm, universal LED, spring return, grooved lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK05 EN 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Protective Treatment : TC
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Standards : EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-1
    • Product Certifications : GL || CSA || BV || UL Listed || DNV || LROS (Lloyds register of shipping)
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Free Of Svhc : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Height : 29 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Net Weight : 0.017 kg
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Group Of Product : flush push integral LED
    • Cap/Operator Or Lens Colour : red
    • Main Group : illum push-button
    • Cad Overall Width : 29 mm
    • Device Presentation : basic sub-assemblies
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Depth : 30 mm
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
  • Specifications
    • Device Short Name : ZB5
    • Product Or Component Type : head for illuminated push-button
    • Head Type : standard
    • Range Of Product : Harmony XB5
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : red flush, unmarked
    • Environmental Characteristic : high ambient lighting environment
    • Bezel Material : plastic colour plated grey
    • Type Of Operator : spring return
    • Product Compatibility : universal LED
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 22 mm
    • Operator Additional Information : with grooved lens
