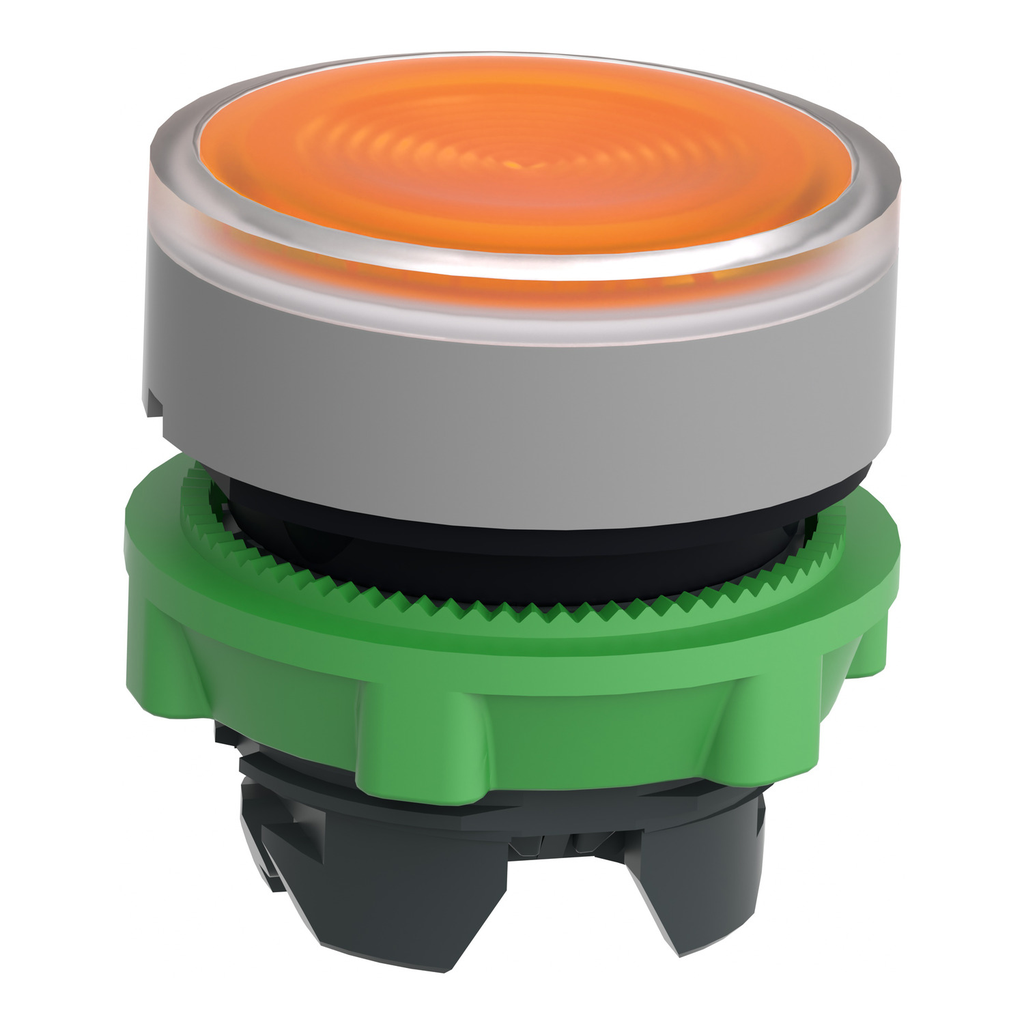

This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Conformance Attributes
• Standards : IEC 60947-1, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, UL 508, GB 14048.5, JIS C8201-5-1, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED, MR1 2 single rear mounting integral LED
• Operator Profile : orange flush, unmarked, orange flush, unmarked, orange flush, unmarked
• Overvoltage Category : class II conforming to IEC 60536, class II conforming to IEC 60536
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALD 1...5 cut-outs, XALK 2...5 cut-outs, XALK 2...5 cut-outs
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• GCR Bridge : ZB5AWCUST06
• Group Of Product : flush push integral LED
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum push-button
• Mounting Diameter : 22 mm
• Package Weight Lbs : 18.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : spring return
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2404014EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014EN
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Overview Attributes
• Device Presentation : basic sub-assemblies
