SQUARE D

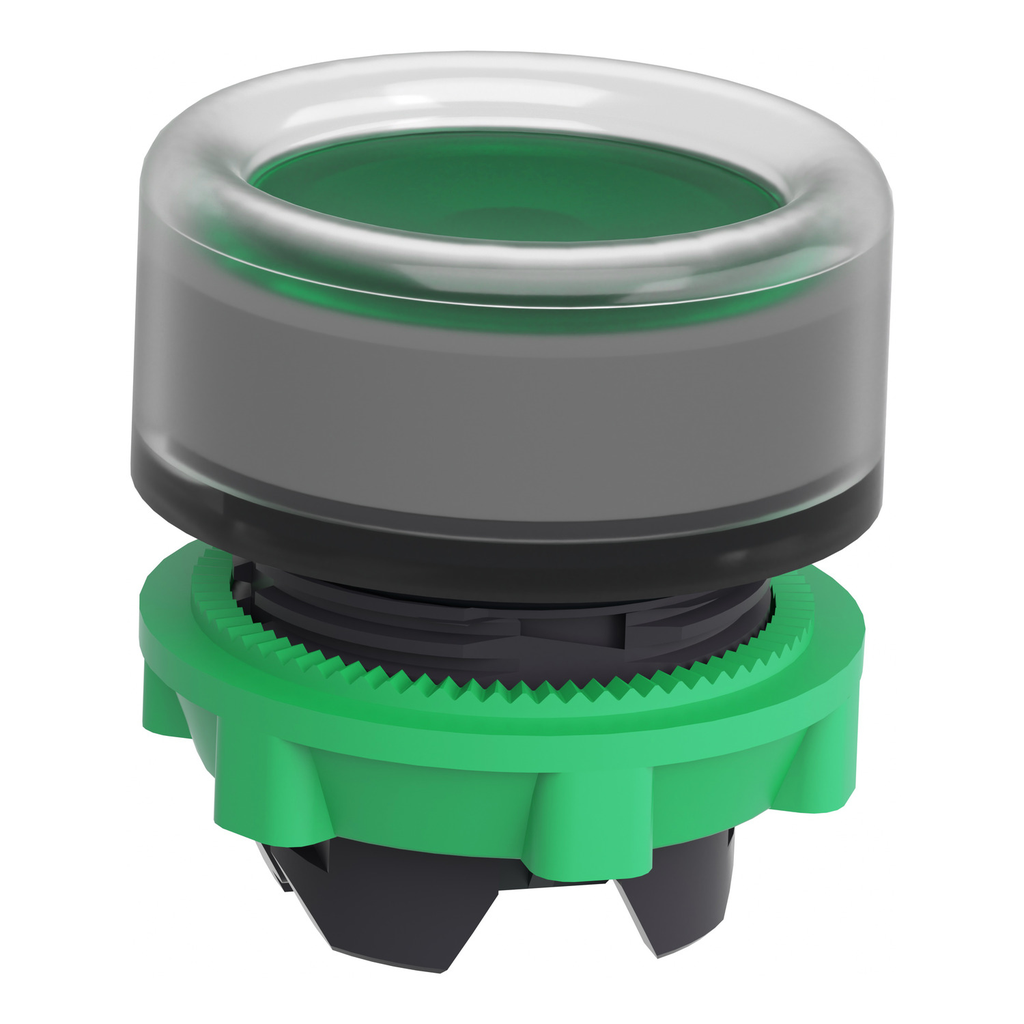

Head for illuminated push button, Harmony XB5, grey bezel, green flush, 22mm, universal LED, plain lens, clear boot

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW533C0 3606489770266
16.14 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, green flush, 22mm, universal LED, plain lens, clear boot-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.019 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : CSA || BV || GL || DNV || UL Listed || LROS (Lloyds register of shipping)
    • Standards : JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-4 || GB 14048.5 || EN/IEC 60947-5-1 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Protective Treatment : TC
    • Ik Degree Of Protection : IK05 EN 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cap/Operator Or Lens Colour : green
    • Cad Overall Depth : 37 mm
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Marking : unmarked
    • Net Weight : 0.019 kg
    • Device Presentation : basic sub-assemblies
    • Group Of Product : flush push integral LED
    • Mechanical Durability : 10000000 cycles
    • Main Group : illum push-button
    • Cad Overall Height : 30 mm
    • Cad Overall Width : 30 mm
  • Specifications
    • Bezel Material : plastic colour plated grey
    • Operator Additional Information : clear boot
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 22 mm
    • Shape Of Signaling Unit Head : round
    • Operator Profile : green flush, unmarked
    • Product Compatibility : universal LED
    • Head Type : standard
    • Type Of Operator : spring return
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for illuminated push-button
