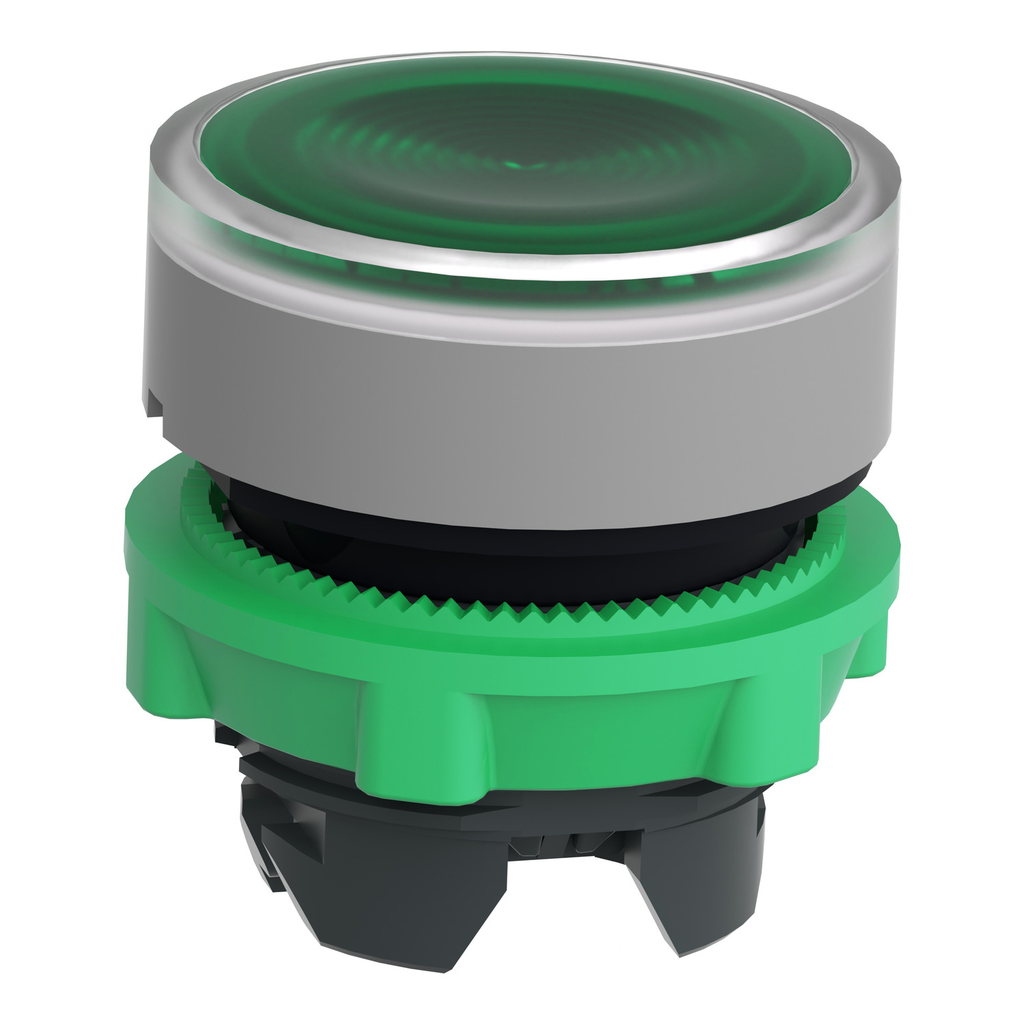

This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

• Features
• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• Excellent mechanical connection with operator head
• A wide choice of contact blocks for general purposes or specific applications
• Large set of accessories to customize your panels

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31.stp, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-back.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-back.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-bottom.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-bottom.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-front.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-front.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-isometric.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-isometric.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-left.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-left.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-right.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-right.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-top.DWG, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW31_NEW_2024&p_File_name=ZB5AW31_2D-top.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB5AW333SC0_3DCAD
• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 29 mm
• Cad Overall Width : 29 mm
• Cap Operator Or Lens Color : green
• Conformance Attributes
• Product Certifications : CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed
• Standards : UL 508, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-1, JIS C8201-5-1, GB 14048.5, CSA C22.2 No 14, JIS C8201-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : 1, no
• Electrical Composition Code : M1 6 single front mounting integral LED, M2 6 single and double front mounting integral LED, M6 2 single front mounting integral LED and transformer, M10 2 single front mounting integral LED, MF1 2 single front mounting integral LED, MR1 2 single rear mounting integral LED
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Station Name : XALD 1...5 cut-outs, XALK 2...5 cut-outs
• Medium Desc : Head for illuminated push button, Harmony XB5, grey bezel, green flush, 22mm, universal LED, grooved lens
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : Y
• Stocking Flag : Y
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2404014EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Average Percentage Of Recycled Metal Content : 29 %
• Average Percentage Of Recycled Plastic Content : 16 %
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• Environmental Characteristic : high ambient lighting environment
• Gcr Bridge : ZB5AWCUST06
• Group Of Product : flush push integral LED
• Head Type : standard
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum push-button
• Marking : unmarked
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 22 mm
• Operator Additional Information : with grooved lens
• Operator Profile : green flush, unmarked
• Overvoltage Category : class II conforming to IEC 60536
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Protective Treatment : TC
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : spring return
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : green
• Pep Code : ENVPEP2404014EN
• Environment Attributes Main
• Ip Degree Of Protection : IP66 IEC 60529, IP67
• Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
• Take Back : Nej
• Recycled Metal Content At Cr Level : 29 %
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2404014EN
• Environmental Disclosure : ENVPEP2404014EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : universal LED
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2404014EN
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• ETIM
• ETIM 8 : EC000221
• ETIM 9 : EC000221
• Overview Attributes
• Device Presentation : basic sub-assemblies
