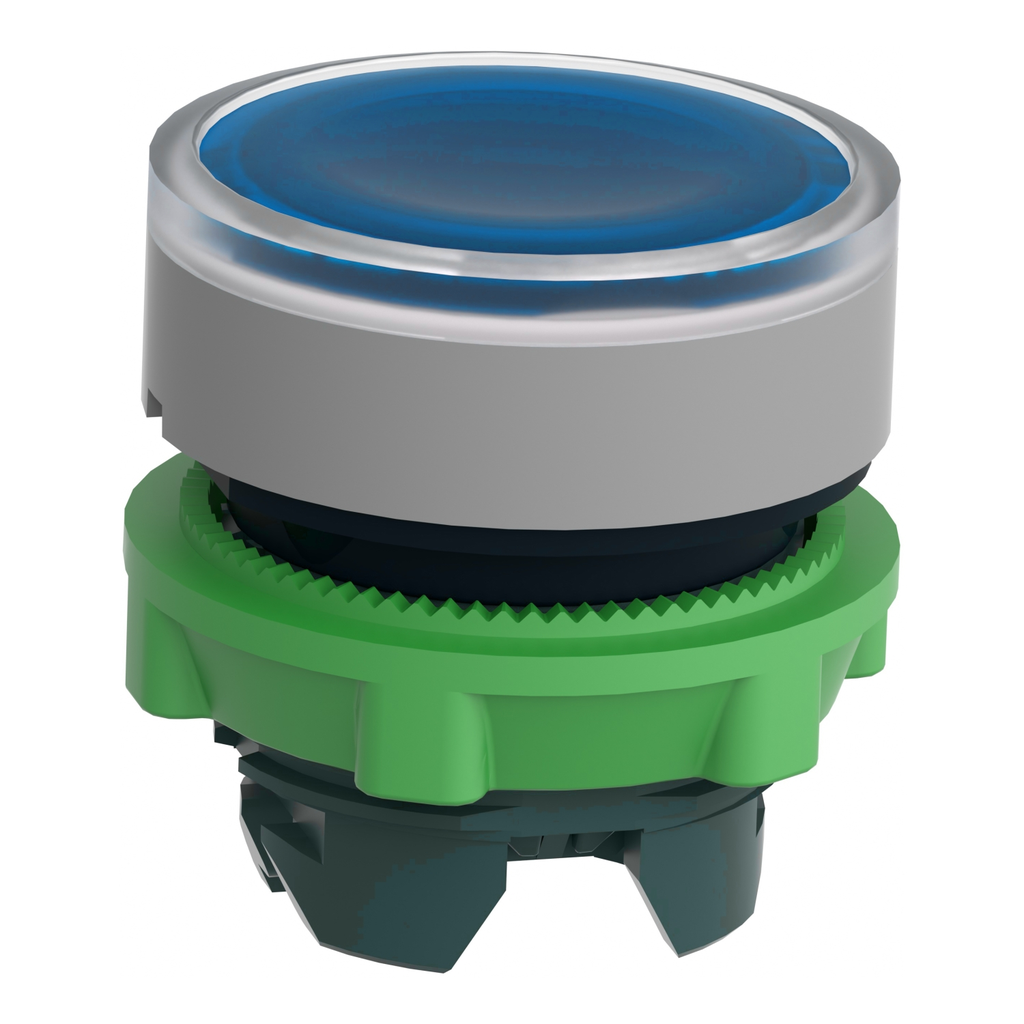

This button head with transparent cap provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly and used for insertion of legend. It is clearly distinguishable visually at a distance thanks to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.

• Environment
• Product Certifications : BV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || DNV
• Ik Degree Of Protection : IK03 conforming to IEC 62262
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || GB 14048.5 || CSA C22.2 No 14 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529 || IP67
• Ambient Air Temperature For Storage : -40-70 °C
• Overvoltage Category : class II IEC 60536
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Protective Treatment : TC
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : X
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Important Information
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Complementary
• Main Group : illum push-button
• Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
• Net Weight : 0.018 kg
• Cad Overall Height : 29 mm
• Device Presentation : basic element
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Cap/Operator Or Lens Colour : blue
• Mechanical Durability : 10000000 cycles
• Marking : unmarked
• Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
• Cad Overall Width : 29 mm
• Cad Overall Depth : 30 mm
• Group Of Product : flush push with inser of legend
• Specifications
• Operator Additional Information : for insertion of legend
• Range Of Product : Harmony XB5
• Mounting Diameter : 22 mm
• Type Of Operator : spring return
• Product Or Component Type : head for illuminated push-button
• Shape Of Signaling Unit Head : round
• Head Type : standard
• Sale Per Indivisible Quantity : 1
• Bezel Material : plastic colour plated grey
• Operator Profile : blue flush, unmarked
• Product Compatibility : universal LED
• Device Short Name : ZB5
