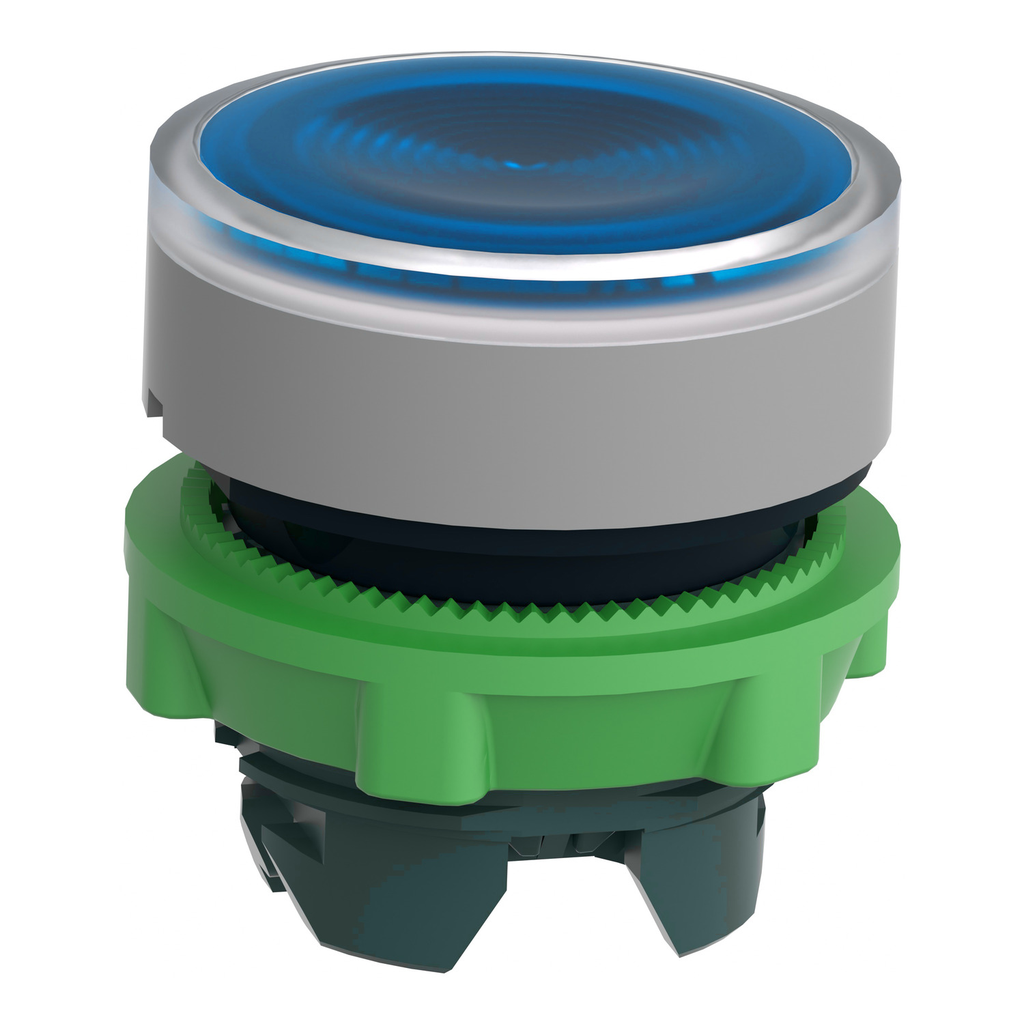

Head for illuminated push button, Harmony XB5, grey bezel, blue flush, 22mm, universal LED, spring return, grooved lens

HARMONY XB5, ILLUMINATED PUSH

SQDZB5AW363SC0 3606489770143
15.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, blue flush, 22mm, universal LED, spring return, grooved lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, GB 14048.5, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed/replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illum. clear color and by touch due to flush element, minimizing errors in machine control. It is imapct, dust, water and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : LROS (Lloyds register of shipping) || BV || CSA || GL || UL Listed || DNV
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK05 IEC 62262
    • Standards : IEC 60947-1 || JIS C8201-5-1 || GB 14048.5 || IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
    • Marking : unmarked
    • Cad Overall Depth : 30 mm
    • Cap/Operator Or Lens Colour : blue
    • Main Group : illum push-button
    • Group Of Product : flush push integral LED
    • Net Weight : 0.017 kg
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
    • Mechanical Durability : 10000000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 29 mm
    • Device Presentation : basic sub-assemblies
  • Specifications
    • Operator Profile : blue flush, unmarked
    • Head Type : standard
    • Operator Additional Information : with grooved lens
    • Type Of Operator : spring return
    • Environmental Characteristic : high ambient lighting environment
    • Product Or Component Type : head for illuminated push-button
    • Product Compatibility : universal LED
    • Device Short Name : ZB5
    • Range Of Product : Harmony XB5
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 22 mm
