SQUARE D

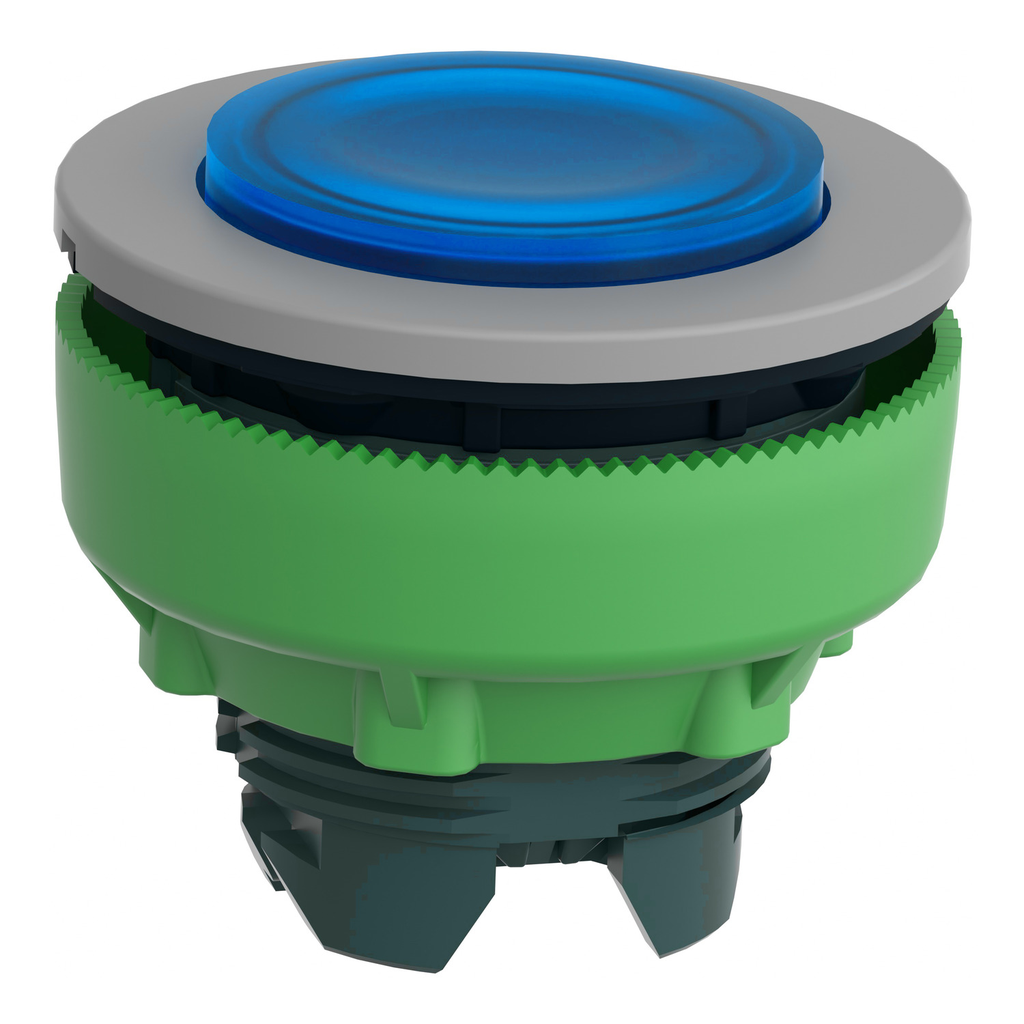

Head for illuminated push button, Harmony XB5, grey bezel, blue projecting, 30mm, universal LED, push-push, unmarked

HARMONY XB5, ILLUMINATED PUSH

SQDZB5FH63C0 3606489773304
38.95 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, blue projecting, 30mm, universal LED, push-push, unmarked-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
    • Product Certifications : UL Listed || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Net Weight : 0.031 kg
    • Cad Overall Height : 37 mm
    • Mechanical Durability : 500000 cycles
    • Cad Overall Width : 37 mm
    • Device Presentation : basic element
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
    • Cad Overall Depth : 32 mm
  • Specifications
    • Product Or Component Type : head for illuminated push-button
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5F
    • Shape Of Signaling Unit Head : round
    • Type Of Operator : push-push
    • Operator Profile : blue projecting, unmarked
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
    • Range Of Product : Harmony XB5
    • Product Compatibility : universal LED
