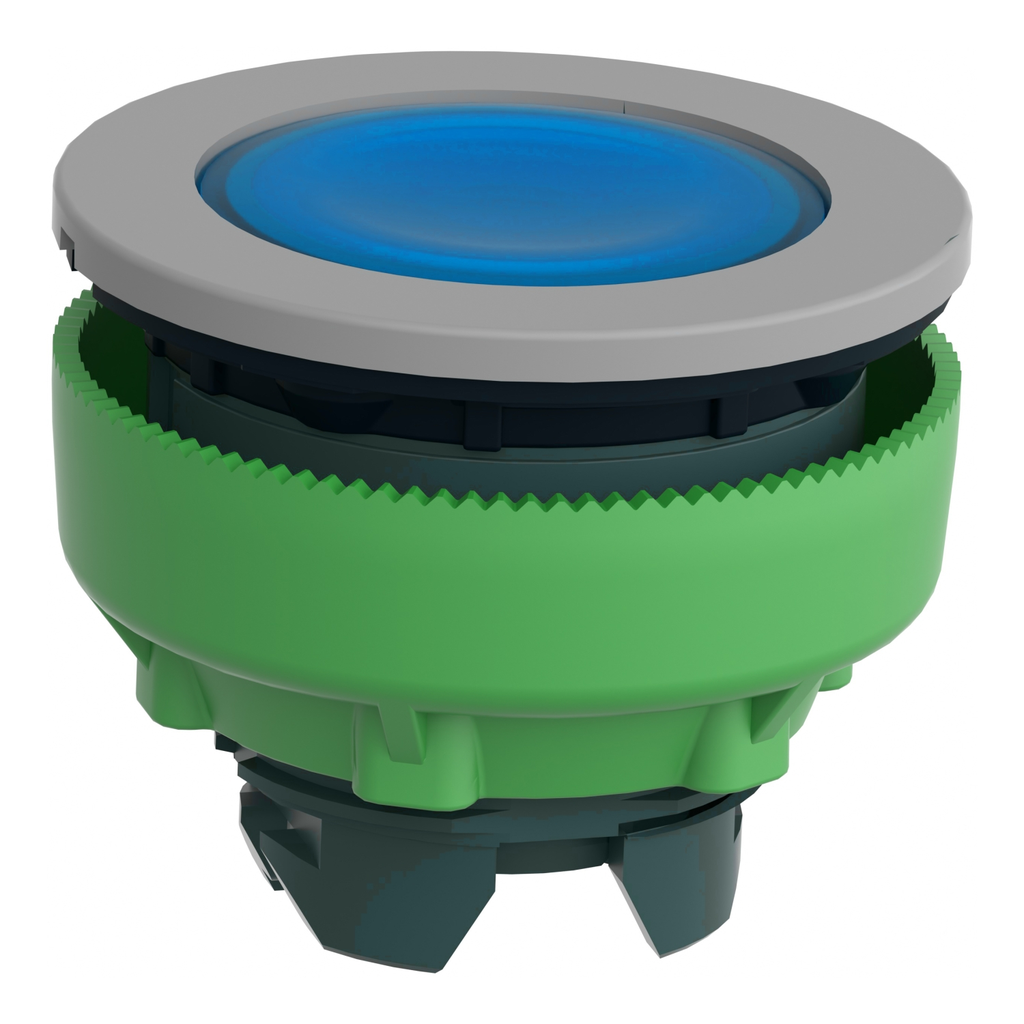

This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.

• Features
• Compatible with universal LED block to be used for all colors
• Improved color intensity and brightness
• Quick and easy assembly and disassembly
• Robustness to withstand harsh environments
• A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• Large set of accessories to customize your panels
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 37 mm
• Cad Overall Width : 37 mm
• Cap Operator Or Lens Color : blue
• Conformance Attributes
• Product Certifications : UL Listed, CSA
• Standards : UL 508, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting, C9 3 single front mounting
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308008EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Bezel Material : plastic colour plated grey
• Cap Operator Or Lens Color : blue
• Device Short Name : ZB5F
• GCR Bridge : ZB5FHCUST02
• Group Of Product : flush push-push illum LED
• Head Type : built-in-flush
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : illum push-button
• Marking : unmarked
• Mechanical Durability : 500000 cycles
• Mounting Diameter : 30.5 mm
• Operator Profile : blue flush, unmarked
• Overvoltage Category : class II conforming to IEC 60536
• Package Weight Lbs : 22.680 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for illuminated push-button
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Type Of Operator : push-push
• Medium Desc : Head for illuminated push button, Harmony XB5, grey bezel, blue flush mounted, 30mm, universal LED, push-push, unmarked
• Stocking Flag : N
• Product Kit Identifier : N
• Pep Code : ENVPEP2308008EN
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2308008EN
• Environmental Disclosure : ENVPEP2308008EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Product Compatibility : universal LED
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308008EN
• General Attributes
• Product Or Component Type : head for illuminated push-button
• Range Of Product : Harmony XB5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : basic element
