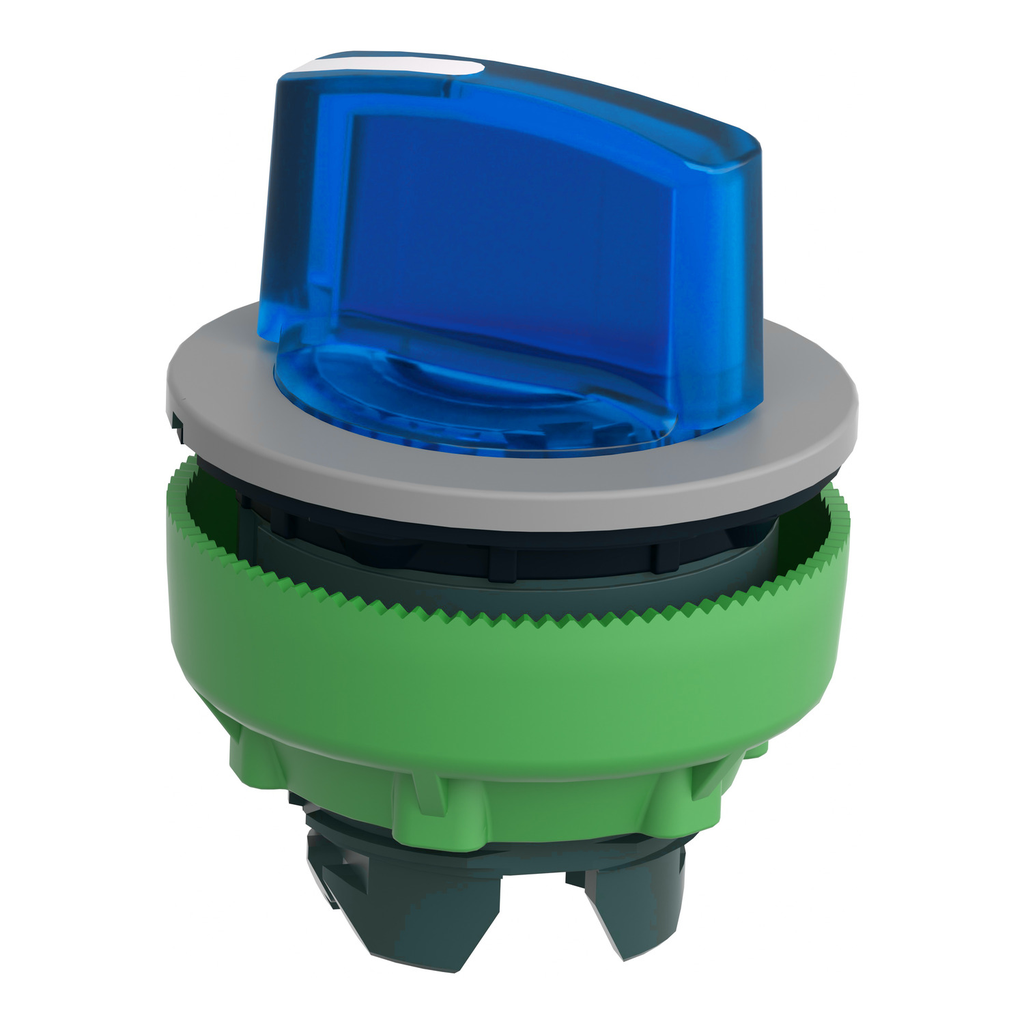

Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, flush mounted, 30mm, universal LED, 2 positions

HARMONY XB5, ILLUMINATED FLUSH

SQDZB5FK1263C0 3606489753511
32.33 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated selector switch, Harmony XB5, grey bezel, blue handle, flush mounted, 30mm, universal LED, 2 positions-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Ik Degree Of Protection : IK03 IEC 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Product Certifications : BV || UL Listed || DNV || GL || LROS (Lloyds register of shipping) || CSA
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || JIS C8201-1
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Device Presentation : basic element
    • Net Weight : 0.03 kg
    • Cad Overall Height : 37 mm
    • Cad Overall Depth : 46 mm
    • Cad Overall Width : 37 mm
    • Electrical Composition Code : M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || M4 4 single and double front mounting integral LED
    • Mechanical Durability : 1000000 cycles
  • Specifications
    • Device Short Name : ZB5
    • Mounting Diameter : 30.5 mm
    • Shape Of Signaling Unit Head : round
    • Operator Position Information : 2 positions 90°
    • Head Type : built-in-flush
    • Product Or Component Type : head for illuminated selector switch
    • Sale Per Indivisible Quantity : 1
    • Type Of Operator : stay put
    • Bezel Material : plastic colour plated grey
    • Product Compatibility : universal LED
    • Range Of Product : Harmony XB5
    • Operator Profile : blue standard handle
