SQUARE D

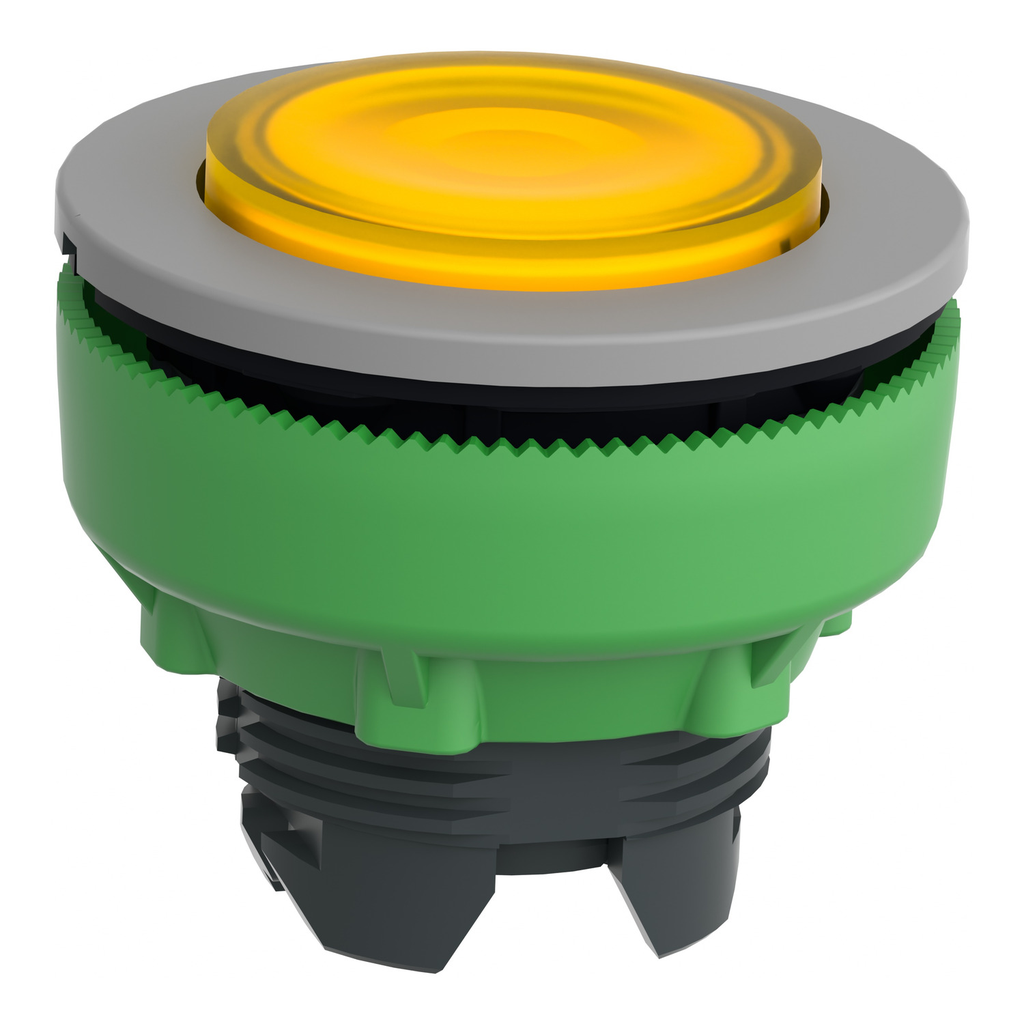

Head for illuminated push button, Harmony XB5, grey bezel, yellow projecting, 30mm, universal LED, spring return, unmarked

HARMONY XB5, ILLUMINATED FLUSH

SQDZB5FW183C0 3606489754594
18.39 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, yellow projecting, 30mm, universal LED, spring return, unmarked-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : UL Listed || CSA
    • Standards : UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Overvoltage Category : class II IEC 60536
    • Ik Degree Of Protection : IK03 IEC 50102
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting || M2 6 single and double front mounting || M10 2 single front mounting || M6 2 single front mounting || MF1 2 single front mounting
    • Cad Overall Depth : 30 mm
    • Net Weight : 0.03 kg
    • Device Presentation : basic element
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Product Compatibility : universal LED
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5F
    • Type Of Operator : spring return
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
    • Sale Per Indivisible Quantity : 1
    • Head Type : built-in-flush
    • Mounting Diameter : 30.5 mm
    • Operator Profile : yellow projecting, unmarked
