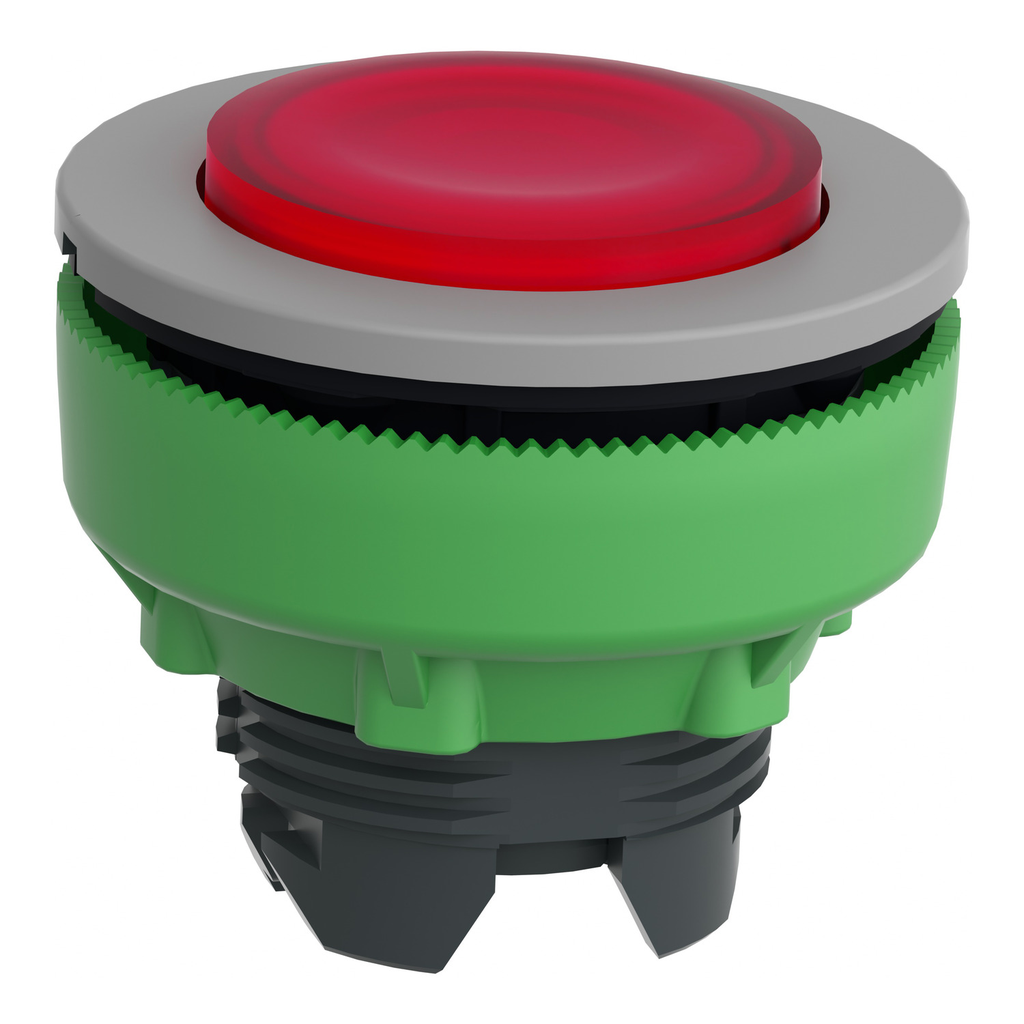

Head for illuminated push button, Harmony XB5, grey bezel, red projecting, 30mm, universal LED, spring return, unmarked

HARMONY XB5, ILLUMINATED FLUSH

SQDZB5FW143C0 3606489754532
18.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, red projecting, 30mm, universal LED, spring return, unmarked-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Product Certifications : UL Listed || CSA
    • Ik Degree Of Protection : IK03 IEC 50102
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 37 mm
    • Net Weight : 0.031 kg
    • Cad Overall Depth : 32 mm
    • Electrical Composition Code : M1 6 single front mounting || M2 6 single and double front mounting || M10 2 single front mounting || M6 2 single front mounting || MF1 2 single front mounting
    • Cad Overall Height : 37 mm
    • Mechanical Durability : 10000000 cycles
    • Device Presentation : basic element
  • Specifications
    • Type Of Operator : spring return
    • Operator Profile : red projecting, unmarked
    • Range Of Product : Harmony XB5
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for illuminated push-button
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Product Compatibility : universal LED
    • Device Short Name : ZB5F
    • Mounting Diameter : 30.5 mm
