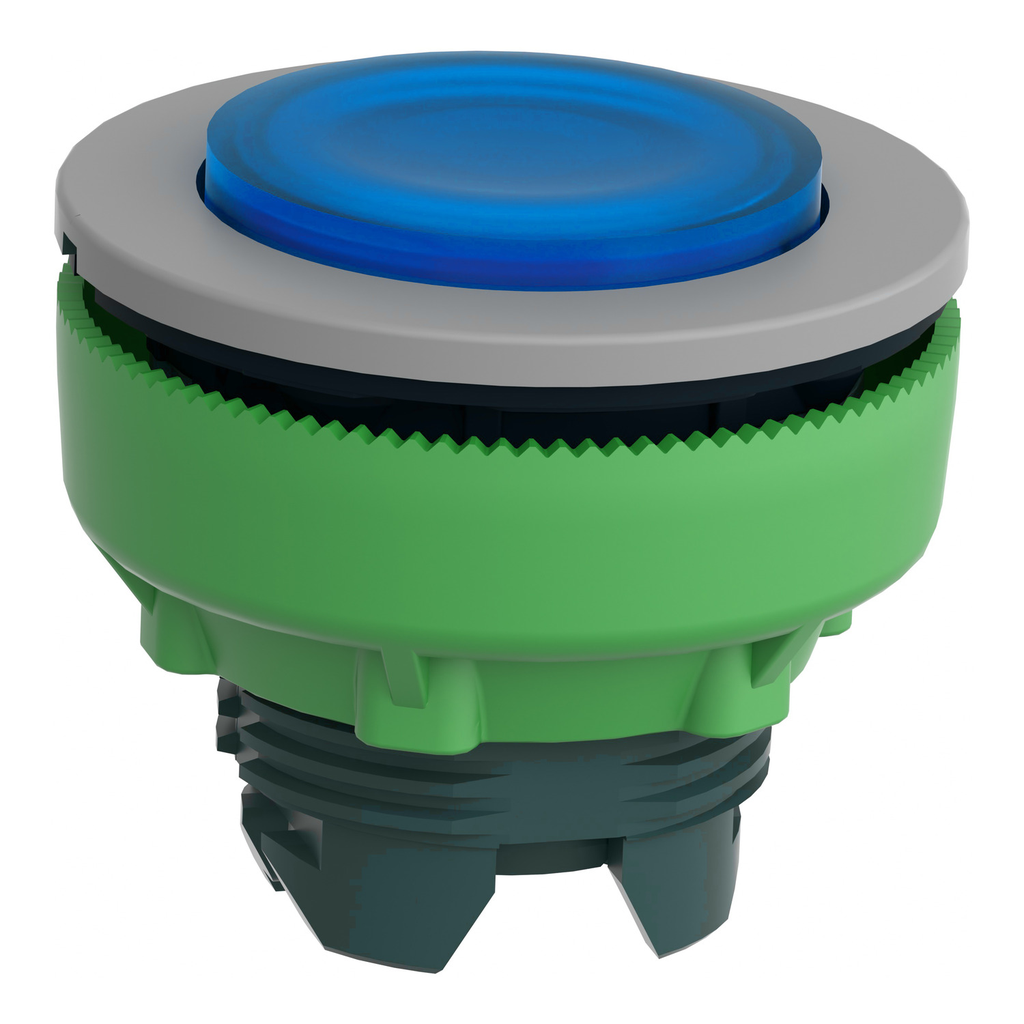

Head for illuminated push button, Harmony XB5, grey bezel, blue projecting, 30mm, universal LED, spring return, unmarked

HARMONY XB5, ILLUMINATED FLUSH

SQDZB5FW163C0 ZB5FW163C0 3606489754570
22.66 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic Colour Plated Grey
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Warranty Length: 18 mth
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishabl
QTY
  • Product Description
  • Features
  • Specifications
This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishabl
  • Overvoltage Category
    • class II conforming to IEC 60536
  • Electrical Composition Code
    • M1 6 single front mounting
    • M2 6 single and double front mounting
    • M2 6 single and double front mou
  • Standards
    • UL 508
    • IEC 60947-5-4
    • IEC 60947-1
    • JIS C8201-5-1
    • IEC 60947-5-1
    • CSA C22.2 No 14
    • JIS C8201-1
  • Ip Degree Of Protection
    • IP66 IEC 60529
    • IP67 IEC 60529
  • Accessories
    • ZB5AZ905
    • ZBYF2101
    • ZBYLEG304001
    • ZBYFP2101
  • Vibration Resistance
    • 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
    • 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60
  • Customizable
    • 1
    • no
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Operator Profile
    • blue projecting, unmarked
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Product Certifications
    • UL Listed
    • CSA
  • Physical Attributes
    • Cad Overall Depth : 32 mm
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
    • Cap Operator Or Lens Color : blue
  • Important Information Attributes
    • Country Id : US
    • B2B Bullet Point 1 : Compatible with universal LED block to be used for all colors
    • B2B Bullet Point 2 : Improved color intensity and brightness
    • B2B Bullet Point 3 : Quick and easy assembly and disassembly
    • B2B Bullet Point 4 : Robustness to withstand harsh environments
    • B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
    • B2B Bullet Point 6 : Large set of accessories to customize your panels
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • ETIM 10 : EC000221
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2404014EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : plastic colour plated grey
    • Cap Operator Or Lens Color : blue
    • Device Short Name : ZB5F
    • Gcr Bridge : ZB5FWCUST02
    • Group Of Product : proj push integral LED
    • Head Type : built-in-flush
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
    • Main Group : illum push-button
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 30.5 mm
    • Package Weight Lbs : 23.0 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Protective Treatment : TH
    • Range Of Product : Harmony XB5
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony XB5
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495750449&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2404014EN
    • Environmental Disclosure : ENVPEP2404014EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Product Compatibility : universal LED
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
