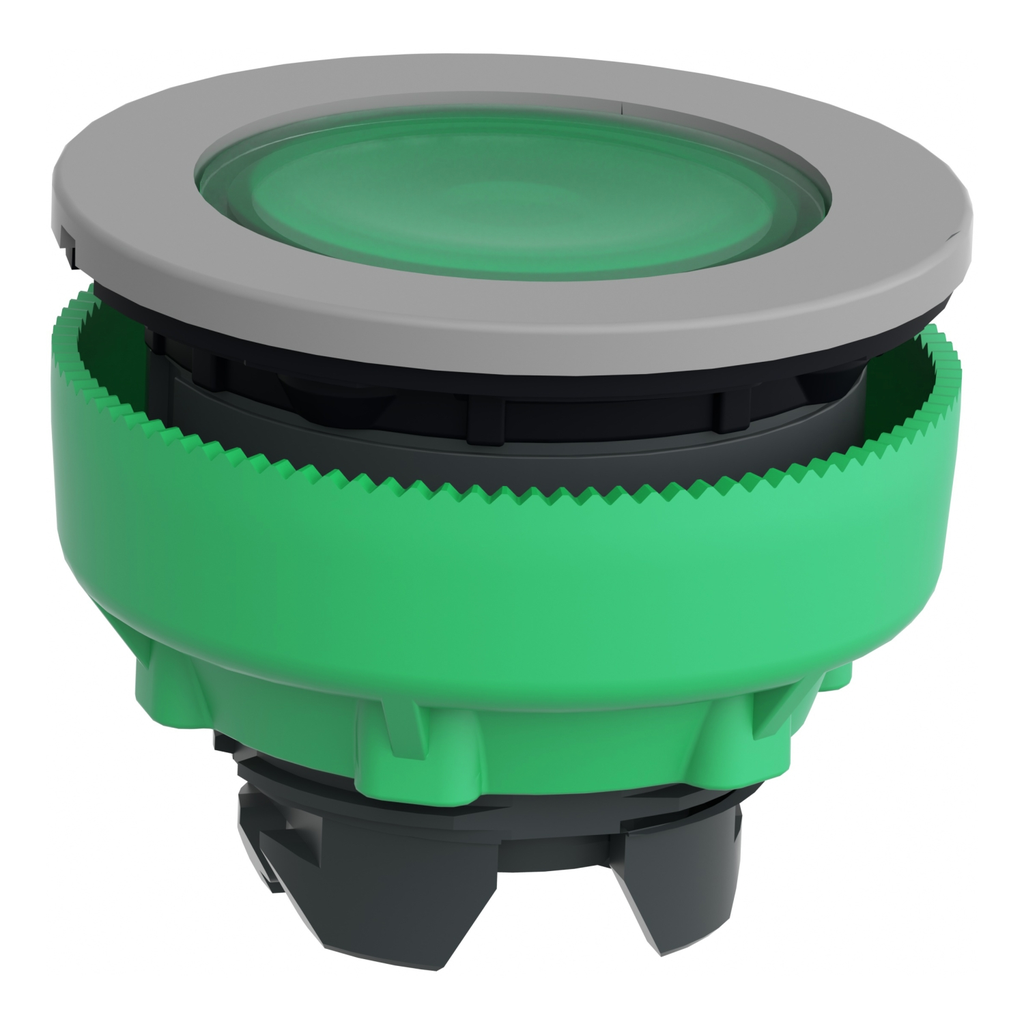

Head for illuminated push button, Harmony XB5, grey bezel, green, 30mm, universal LED, spring return, plain lens

Harmony XB5, Illuminated flush

SQDZB5FW333C0 3606489754631
16.59 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, grey bezel, green, 30mm, universal LED, spring return, plain lens-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Protective Treatment : TC
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK03 EN 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : LROS (Lloyds register of shipping) || DNV || UL Listed || CSA || GL || BV
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || GB 14048.5 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
  • Offer Sustainability
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
    • Net Weight : 0.017 kg
    • Cap/Operator Or Lens Colour : green
    • Cad Overall Width : 37 mm
    • Marking : unmarked
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Height : 37 mm
    • Device Presentation : basic element
    • Group Of Product : flush push integral LED
    • Cad Overall Depth : 30 mm
    • Main Group : illum push-button
  • Specifications
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : round
    • Product Compatibility : universal LED
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for illuminated push-button
    • Type Of Operator : spring return
    • Mounting Diameter : 30.5 mm
    • Bezel Material : plastic colour plated grey
    • Operator Additional Information : with plain lens
    • Operator Profile : green flush, unmarked
    • Device Short Name : ZB5
