Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 pilot light + 1 red flush marked O

HARMONY XB5, ILLUMINATED DOUBL

SQDZB5AW7A3741 ZB5AW7A3741 3389119043366
53.08 / EA
http://schema.org/OutOfStock

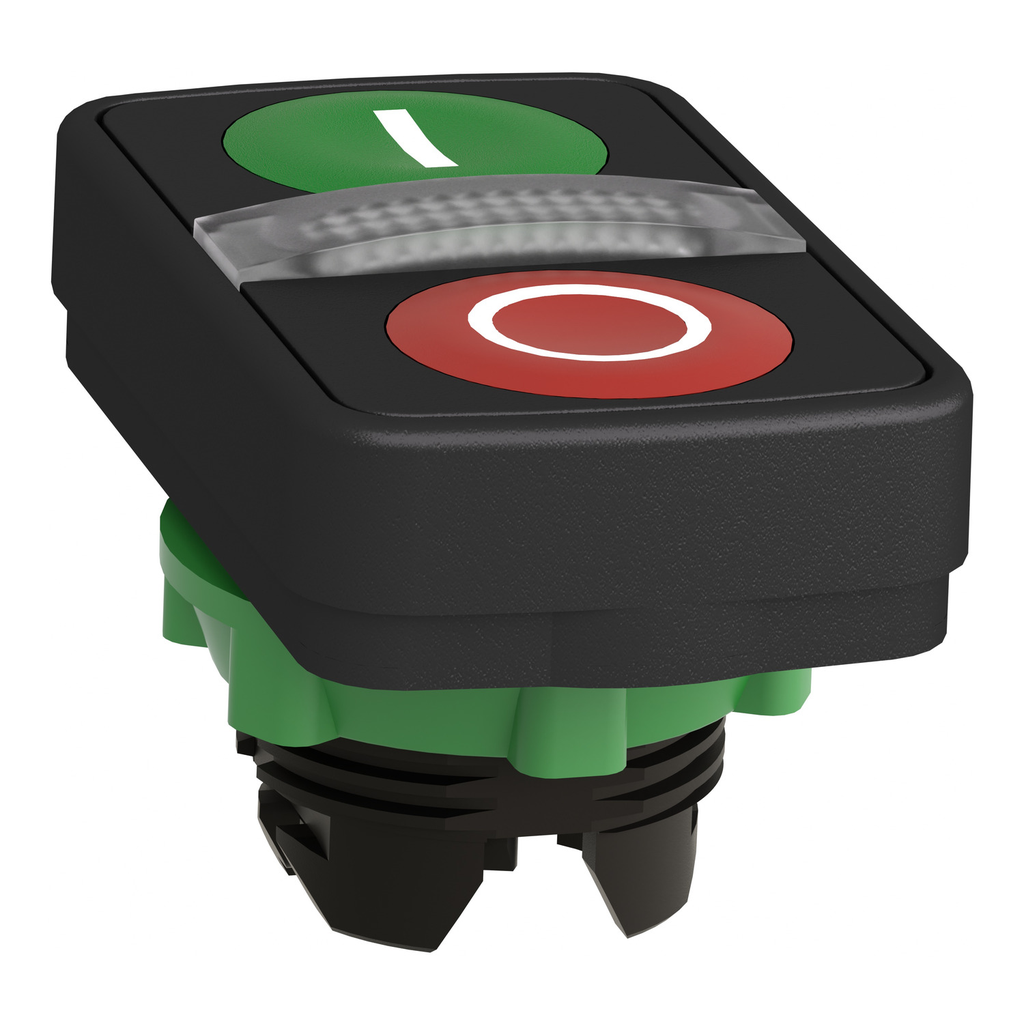

Mayer-DDS-Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 pilot light + 1 red flush marked O-2
  • Bezel Material: Plastic
  • Country of Origin: USA
  • Head Type: Standard
  • Height: 50 mm
  • Net Weight: 0.023 kg
  • Warranty Length: 18 mth
  • Weight: 0.023 kg
  • Width: 30 mm
This Harmony XB5, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "I" / "O" symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB5, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "I" / "O" symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
  • Environment
    • Product Certifications : CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
    • Ik Degree Of Protection : IK05 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 || IP67 || IP69 || IP69K
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 60536
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2404014EN
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2404014EN
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.1613428883
  • Complementary
    • Net Weight : 0.023 kg
    • Cad Overall Height : 50 mm
    • Device Presentation : basic sub-assemblies
    • Operator Profile : green flush, I white) || red flush, O white)
    • Mechanical Durability : 1000000 cycles
    • Station Name : XALD 1 cut-out
    • Cad Overall Width : 30 mm
    • Cad Overall Depth : 30 mm
  • Specifications
    • Country of Origin : United States
    • Width : 30 mm
    • Height : 50 mm
    • Weight : 0.023 kg
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Operators Description : green ''I'' - red ''O''
    • Product Or Component Type : head for illuminated double-headed push-button
    • Shape Of Signaling Unit Head : rectangular
    • Operator Profile : 2 flush push-buttons - 1 central pilot light
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : dark grey plastic
    • Product Compatibility : integral LED
    • Device Short Name : ZB5
