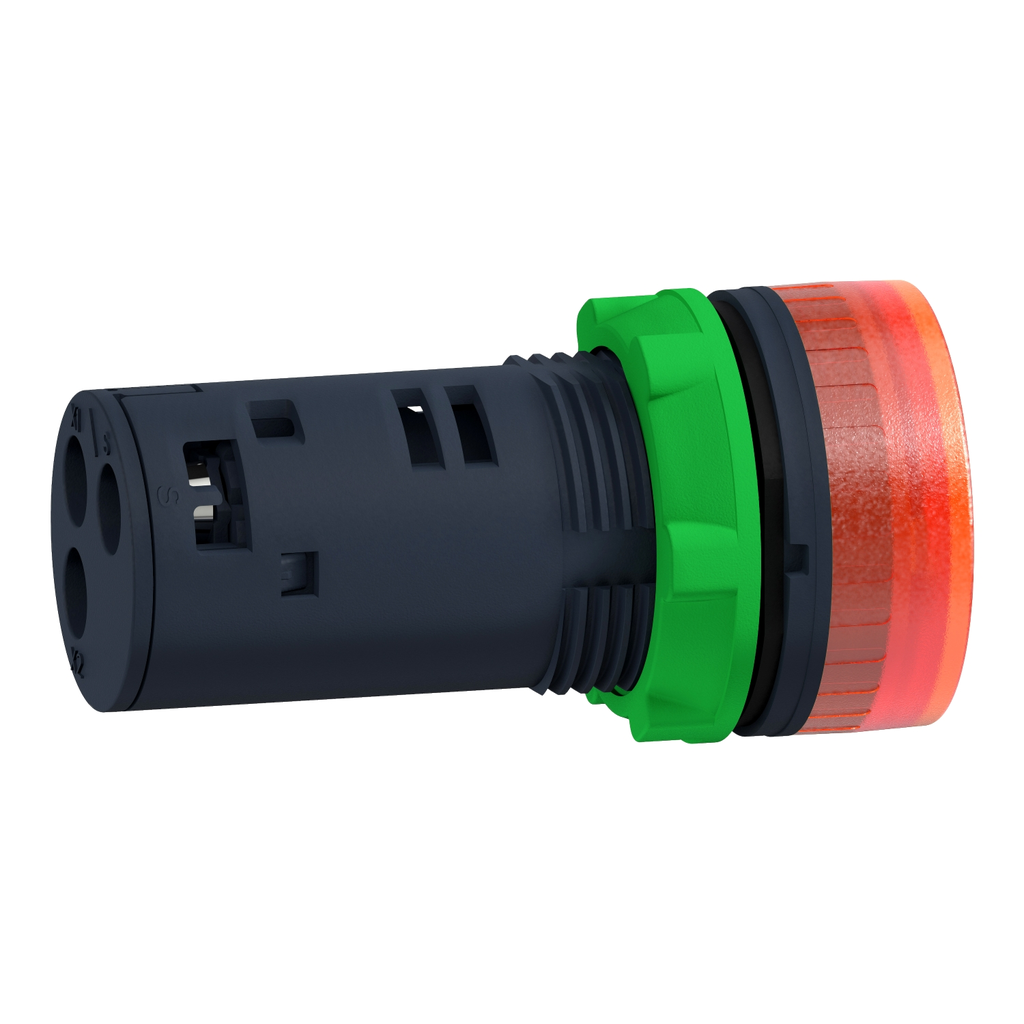

This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947

• Overvoltage Category
• class II conforming to IEC 60536
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0003423563
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0044152209
• Standards
• UL 508
• JIS C8201-5-1
• IEC 60947-5-4
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-1
• JIS C8201-1
• IEC 60529
• IEC 62262
• IEC 50102
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 kg CO2 eq.
• 0.9785199131
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB5AZ905
• ZBY2101
• ZBYLEG503001
• ZBYP2101
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 kg CO2 eq.
• 1.03008
• Us Rated Supply Voltage
• 110...120 V +/- 10 %
• Carbon Footprint Of The Distribution Phase A4
• 0.0036126285
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 9000000 Pa 80 °C 0.1 m
• Noise Level
• 90 dB 6.8 kHz 0.1 m +/- 10 %
• Product Certifications
• UL Listed
• CSA
• BV

• Physical Attributes
• Cap Operator Or Lens Color : red
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 1/29/2024
• Html Descr : Illuminated buzzer, plastic, red, Dia 22, continuous or intermittent tone, 110...120 V AC
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 0.978519913
• Distribution Carbon Footprint : 0.003612629
• Installation Carbon Footprint : 0.000342356
• Use Carbon Footprint : 1.03008
• End Of Life Carbon Footprint : 0.004415221
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2502013EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Bezel Material : plastic
• Cap Operator Or Lens Color : red
• Current Consumption : <= 20 mA
• Mounting Diameter : 22.5 mm
• Package Weight Lbs : 28.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : annunciator
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Signalling Type : continuous or intermittent tone
• Supply Circuit Type : AC/DC
• Supply Frequency : 50/60 Hz
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2.016970119
• Relationshiptype : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• General Attributes
• Product Or Component Type : annunciator
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=459767746&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2.016970119
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2502013EN
• Environmental Disclosure : ENVPEP2502013EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Indonesia
• Height : 1.14 in
• Width : 1.14 in
• Depth : 2.17 in
