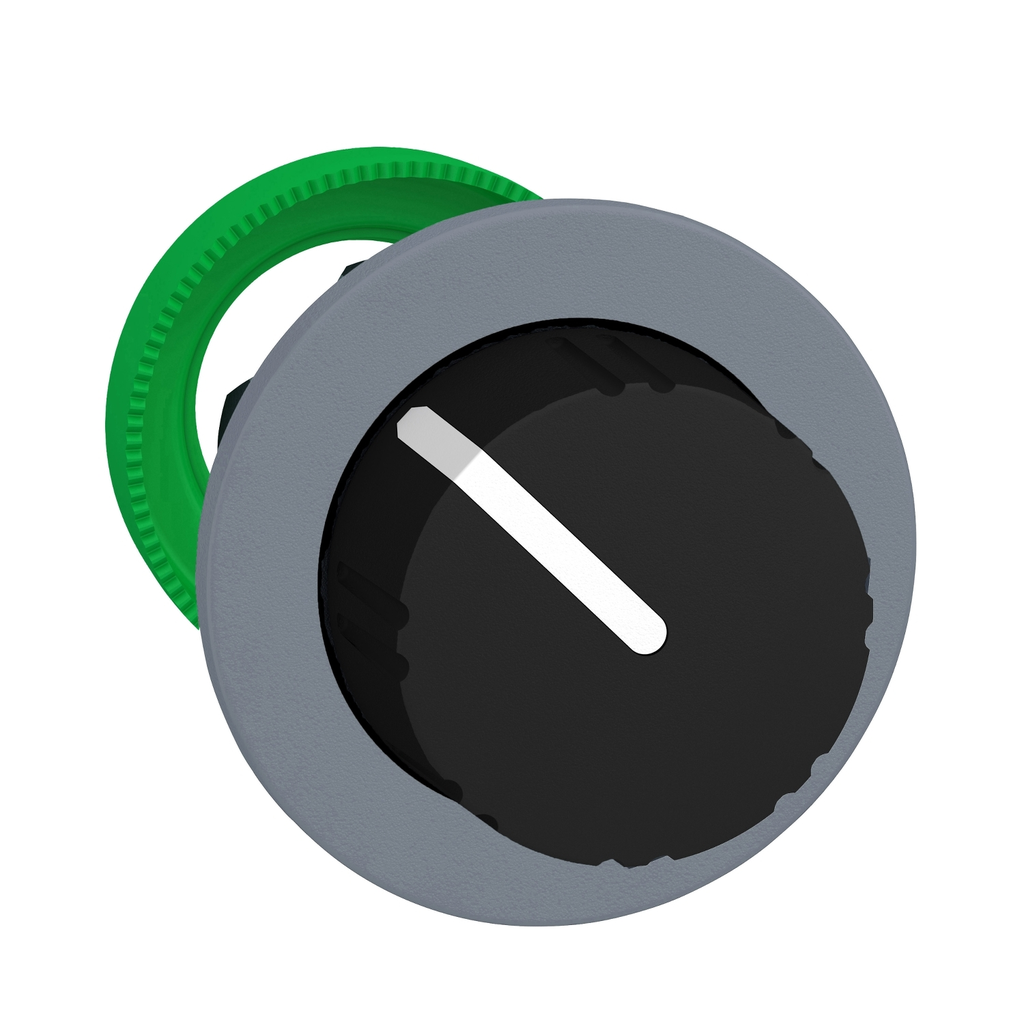

Harmony XB5, Flush mounted selector switch knurled knob head, plastic, black, Ø30, 2 positions, spring return right to left, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD49C0 3606489771768
20.88 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch knurled knob head, plastic, black, Ø30, 2 positions, spring return right to left, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.034 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Specifications
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for selector switch
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Operator Position Information : 2 positions 90°
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : black knurled knob
    • Head Type : built-in-flush
    • Type Of Operator : right to left spring return
  • Complementary
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 46 mm
    • Device Presentation : basic element
    • Cad Overall Height : 37 mm
    • Electrical Composition Code : C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Net Weight : 0.034 kg
    • Mechanical Durability : 1000000 cycles
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Ik Degree Of Protection : IK03 IEC 50102
    • Product Certifications : LROS (Lloyds register of shipping) || GL || BV || UL Listed || CSA || DNV
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : JIS C8201-5-1 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
  • Offer Sustainability
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
