SQUARE D

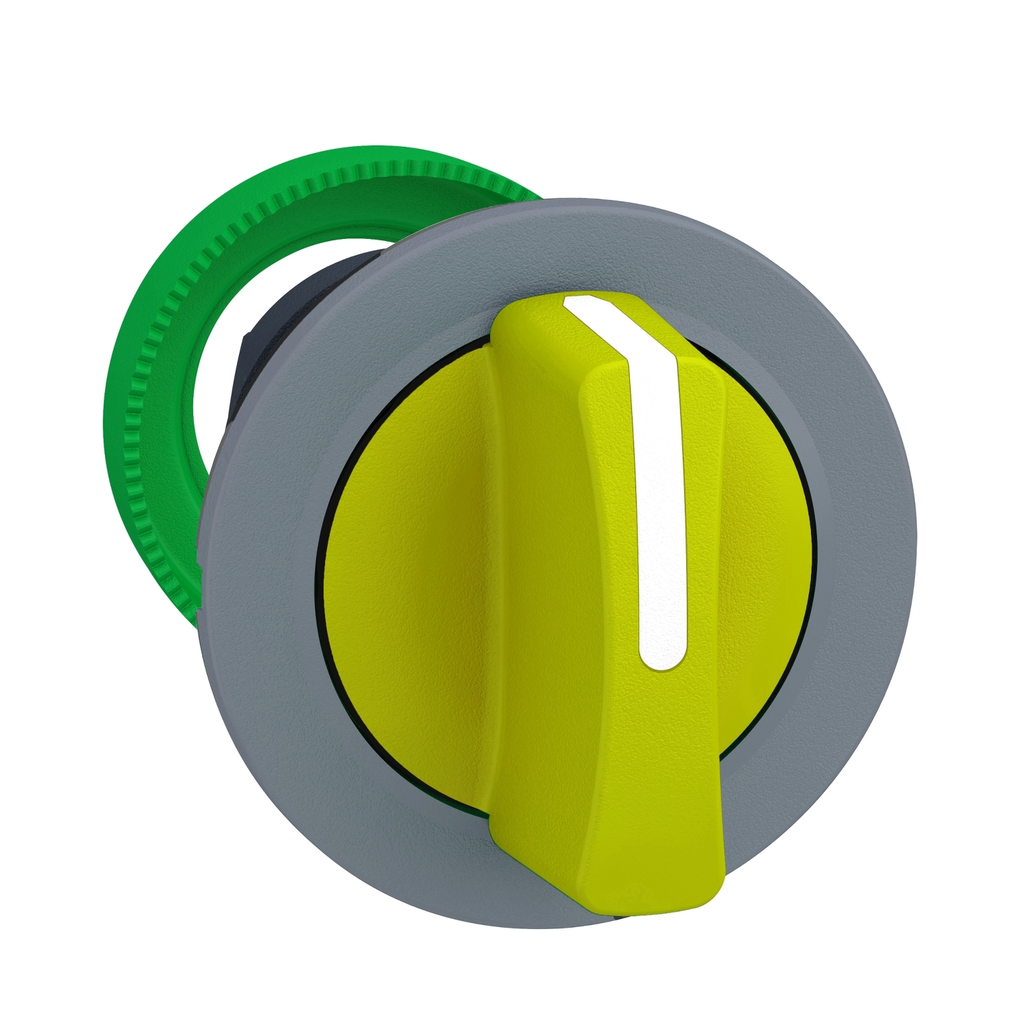

Harmony XB5, Flush mounted selector switch head, plastic, yellow, Ø30, 3 positions, spring return right to center, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD805C0 3606489772147
23.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, yellow, Ø30, 3 positions, spring return right to center, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Standards : EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || UL 508 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : DNV || BV || UL Listed || LROS (Lloyds register of shipping) || GL || CSA
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Ik Degree Of Protection : IK03 IEC 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
  • Offer Sustainability
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
  • Specifications
    • Product Or Component Type : head for selector switch
    • Mounting Diameter : 30.5 mm
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Operator Position Information : 3 positions +/- 45°
    • Head Type : built-in-flush
    • Range Of Product : Harmony XB5
    • Type Of Operator : right to centre spring return
    • Operator Profile : yellow standard handle
    • Sale Per Indivisible Quantity : 1
  • Complementary
    • Device Presentation : basic element
    • Cad Overall Depth : 46 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Net Weight : 0.031 kg
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 37 mm
    • Cad Overall Height : 37 mm
