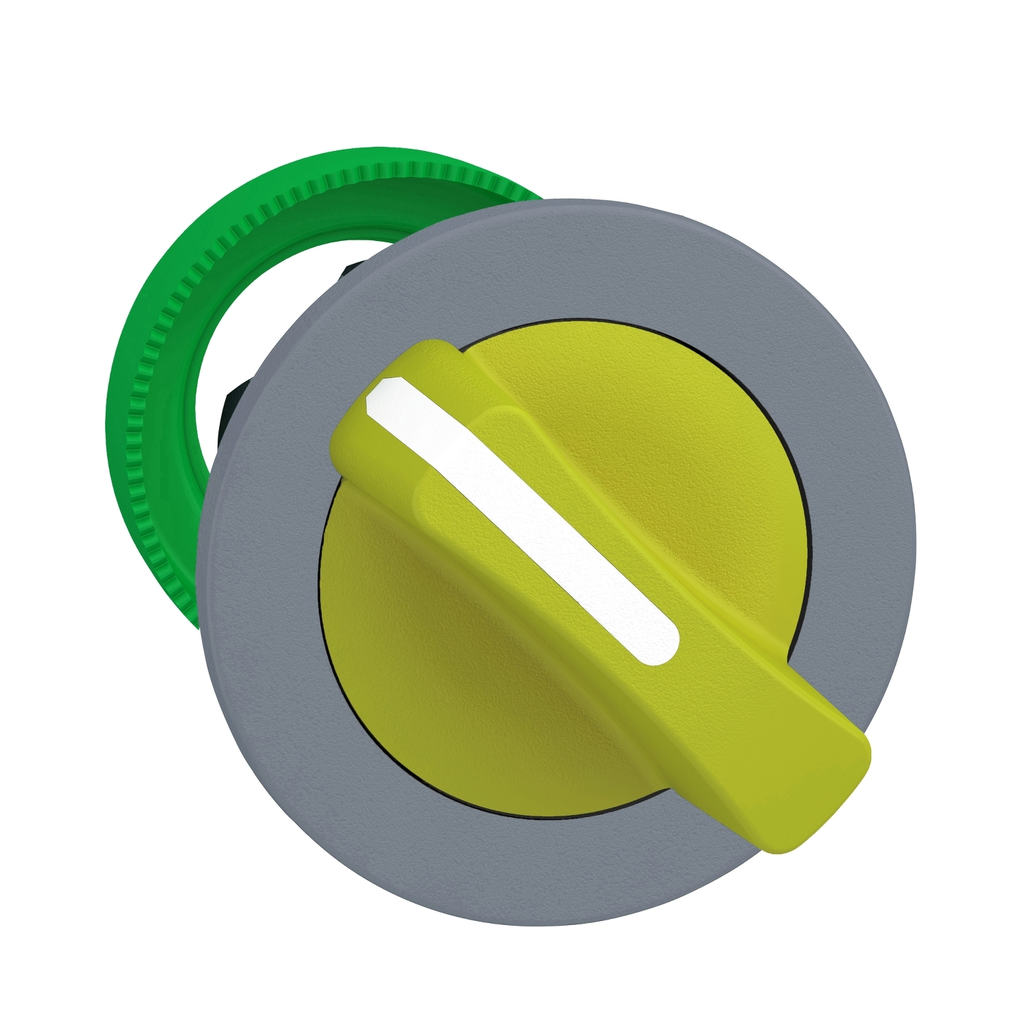

This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visuall

• Overvoltage Category
• class II conforming to IEC 60536
• Electrical Composition Code
• C3 6 single front mounting
• C4 6 single and double front mounting
• C4 6 single and double front mou
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Standards
• JIS C8201-5-1
• IEC 60947-5-4
• IEC 60947-1
• UL 508
• CSA C22.2 No 14
• IEC 60947-5-1
• JIS C8201-1
• Nema Degree Of Protection
• NEMA 13
• NEMA 4X
• Accessories
• ZB5AZ905
• ZBYF2101
• ZBYLEG304001
• ZBYFP2101
• Vibration Resistance
• 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Customizable
• 1
• no
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Operator Profile
• yellow standard handle
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002782_3D-CAD
• Physical Attributes
• Cad Overall Depth : 46 mm
• Cad Overall Height : 37 mm
• Cad Overall Width : 37 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-05-30
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308008EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• GCR Bridge : ZB5FDCUST03
• Group Of Product : non illuminated
• Head Type : built-in-flush
• Main Group : selector switch
• Mounting Diameter : 30.5 mm
• Operator Position Information : 2 positions 90°
• Package Weight Lbs : 22.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : head for selector switch
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : No
• Type Of Operator : stay put
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2308008EN
• General Attributes
• Product Or Component Type : head for selector switch
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=495750082&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2308008EN
• Environmental Disclosure : ENVPEP2308008EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308008EN
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
