Harmony XB5, Flush mounted selector switch head, plastic, yellow, Ø30, 2 positions, spring return right to left, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD405C0 3606489771720
23.44 / EA
http://schema.org/OutOfStock

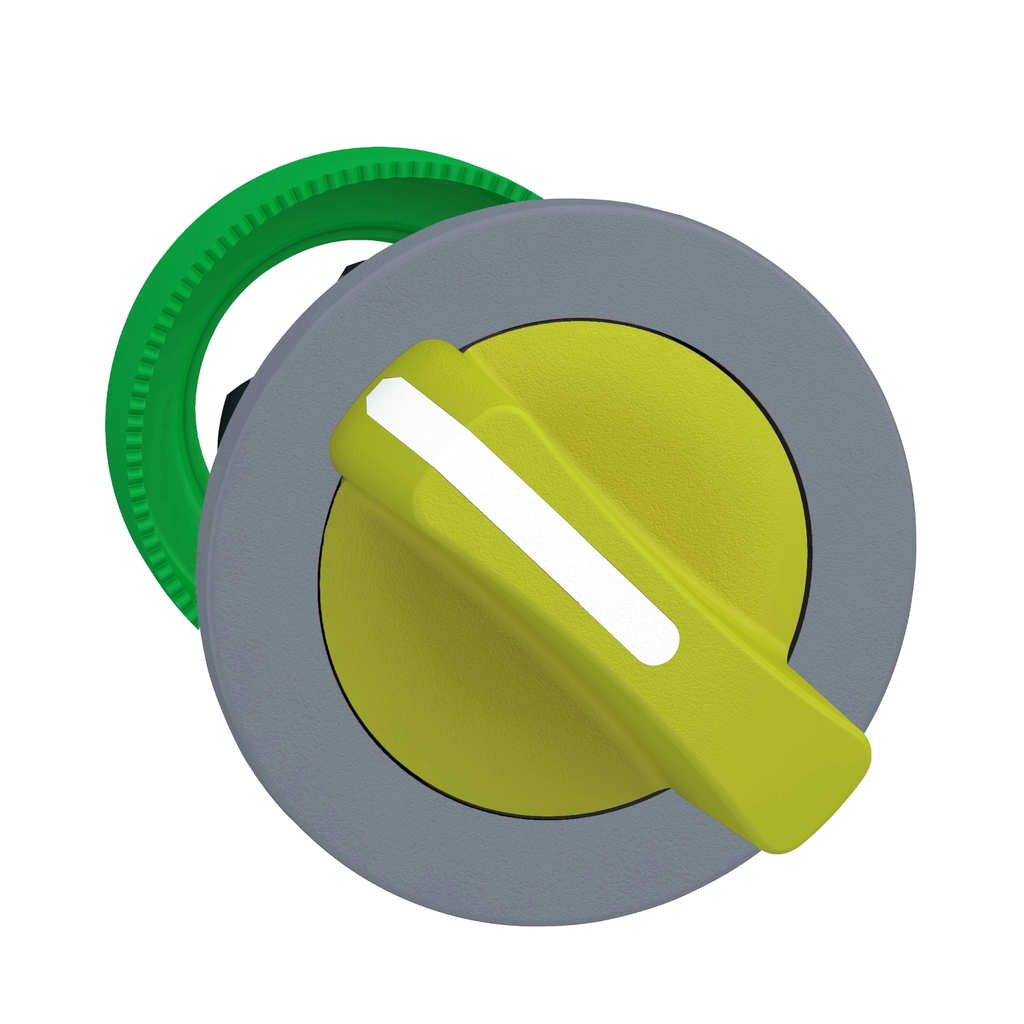

Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, yellow, Ø30, 2 positions, spring return right to left, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK03 IEC 50102
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Product Certifications : CSA || UL Listed || BV || DNV || LROS (Lloyds register of shipping) || GL
  • Specifications
    • Head Type : built-in-flush
    • Operator Profile : yellow standard handle
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Operator Position Information : 2 positions 90°
    • Type Of Operator : right to left spring return
    • Range Of Product : Harmony XB5
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB5
    • Bezel Material : plastic colour plated grey
    • Product Or Component Type : head for selector switch
  • Complementary
    • Cad Overall Depth : 46 mm
    • Device Presentation : basic element
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Cad Overall Height : 37 mm
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 37 mm
    • Net Weight : 0.031 kg
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Reach Free Of Svhc : Yes
    • Toxic Heavy Metal Free : Yes
