SQUARE D

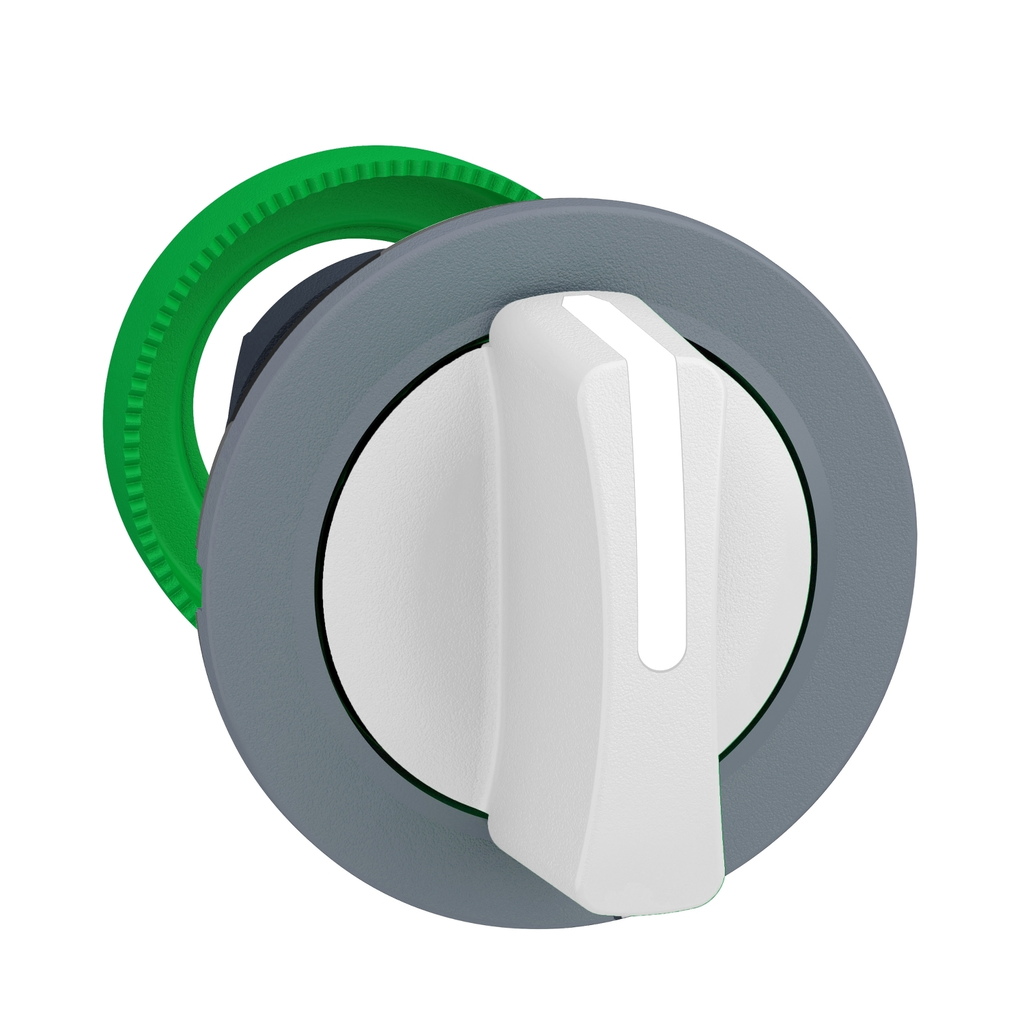

Harmony XB5, Flush mounted selector switch head, plastic, white, Ø30, 3 positions, spring return to center, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD501C0 3606489771805
23.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, white, Ø30, 3 positions, spring return to center, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
  • Environment
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Protective Treatment : TH
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : CSA || DNV || GL || LROS (Lloyds register of shipping) || BV || UL Listed
    • Ambient Air Temperature For Storage : -40-70 °C
  • Specifications
    • Product Or Component Type : head for selector switch
    • Bezel Material : plastic colour plated grey
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Operator Position Information : 3 positions +/- 45°
    • Head Type : built-in-flush
    • Device Short Name : ZB5
    • Operator Profile : white standard handle
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : to centre spring return
  • Complementary
    • Cad Overall Height : 37 mm
    • Net Weight : 0.031 kg
    • Cad Overall Width : 37 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Depth : 46 mm
