SQUARE D

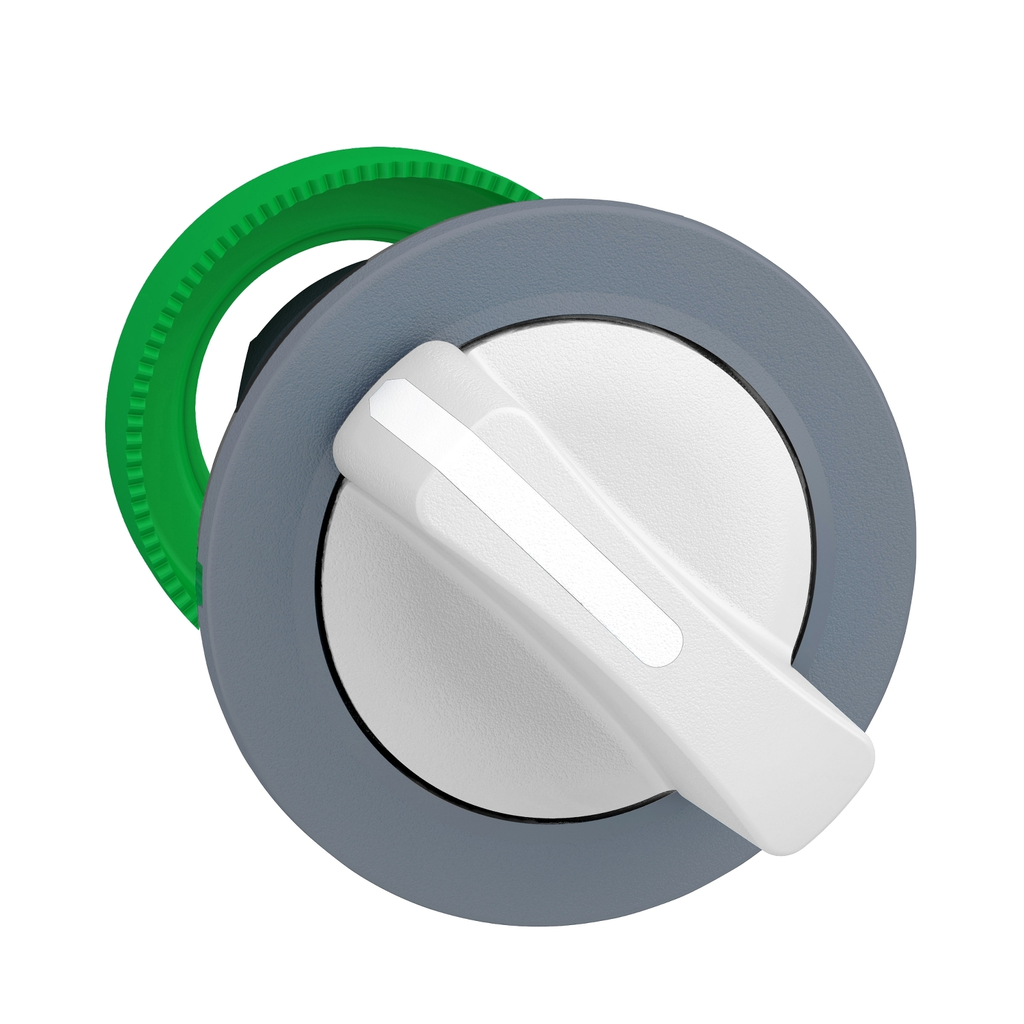

Harmony XB5, Flush mounted selector switch head, plastic, white, Ø30, 2 positions, spring return right to left, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD401C0 3606489771669
23.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, white, Ø30, 2 positions, spring return right to left, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || DNV || BV || GL || UL Listed
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Standards : UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Overvoltage Category : class II IEC 60536
  • Specifications
    • Head Type : built-in-flush
    • Operator Position Information : 2 positions 90°
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB5
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 30.5 mm
    • Bezel Material : plastic colour plated grey
    • Operator Profile : white standard handle
    • Type Of Operator : right to left spring return
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for selector switch
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Cad Overall Height : 37 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 46 mm
    • Net Weight : 0.031 kg
    • Mechanical Durability : 1000000 cycles
