SQUARE D

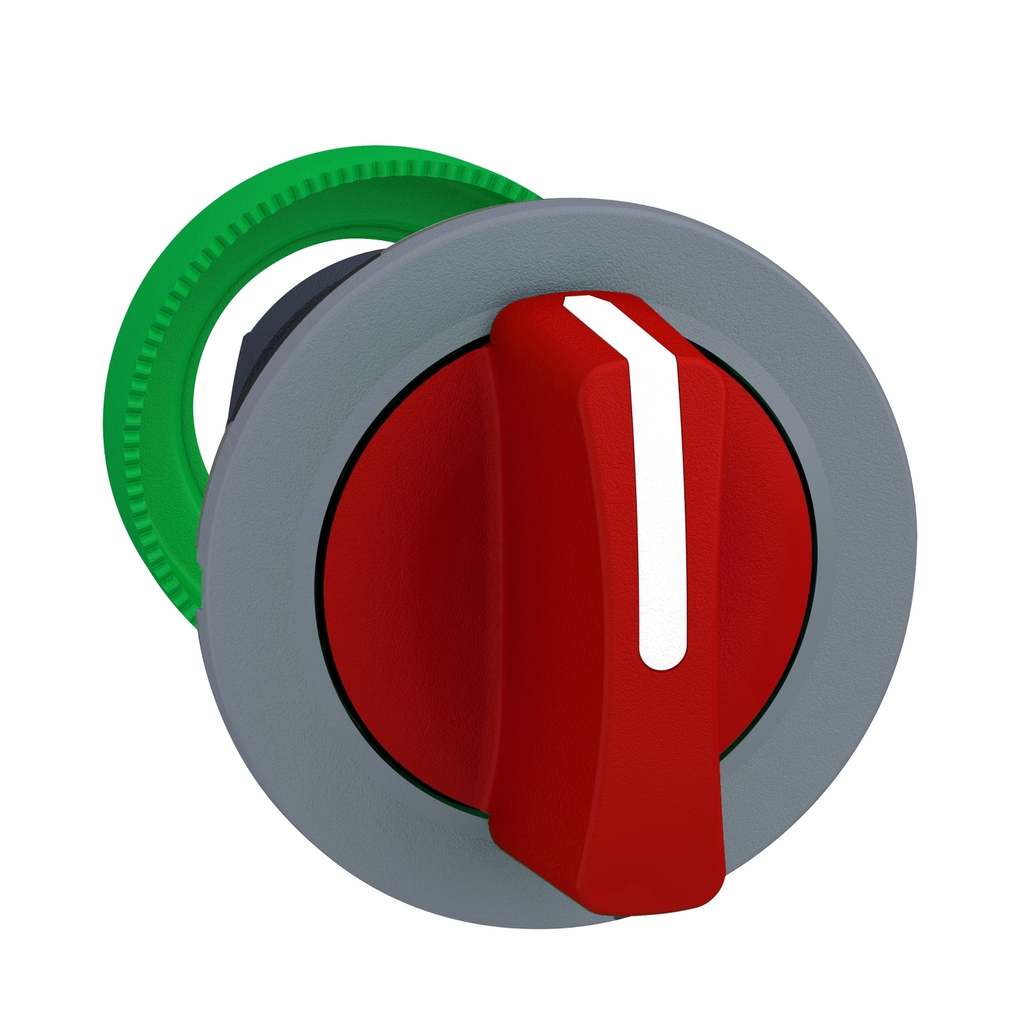

Harmony XB5, Flush mounted selector switch head, plastic, red, Ø30, 3 positions, stay put, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD304C0 3606489771560
23.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, red, Ø30, 3 positions, stay put, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Product Certifications : DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL Listed
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
  • Complementary
    • Net Weight : 0.031 kg
    • Cad Overall Height : 37 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Cad Overall Depth : 46 mm
    • Cad Overall Width : 37 mm
    • Mechanical Durability : 1000000 cycles
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • Mercury Free : Yes
  • Specifications
    • Device Short Name : ZB5
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 30.5 mm
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Operator Position Information : 3 positions +/- 45°
    • Type Of Operator : stay put
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for selector switch
    • Operator Profile : red standard handle
    • Head Type : built-in-flush
