SQUARE D

Harmony XB5, Flush mounted selector switch head, plastic, blue, Ø30, 3 positions, stay put, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD306C0 3606489771607
23.44 / EA
http://schema.org/OutOfStock

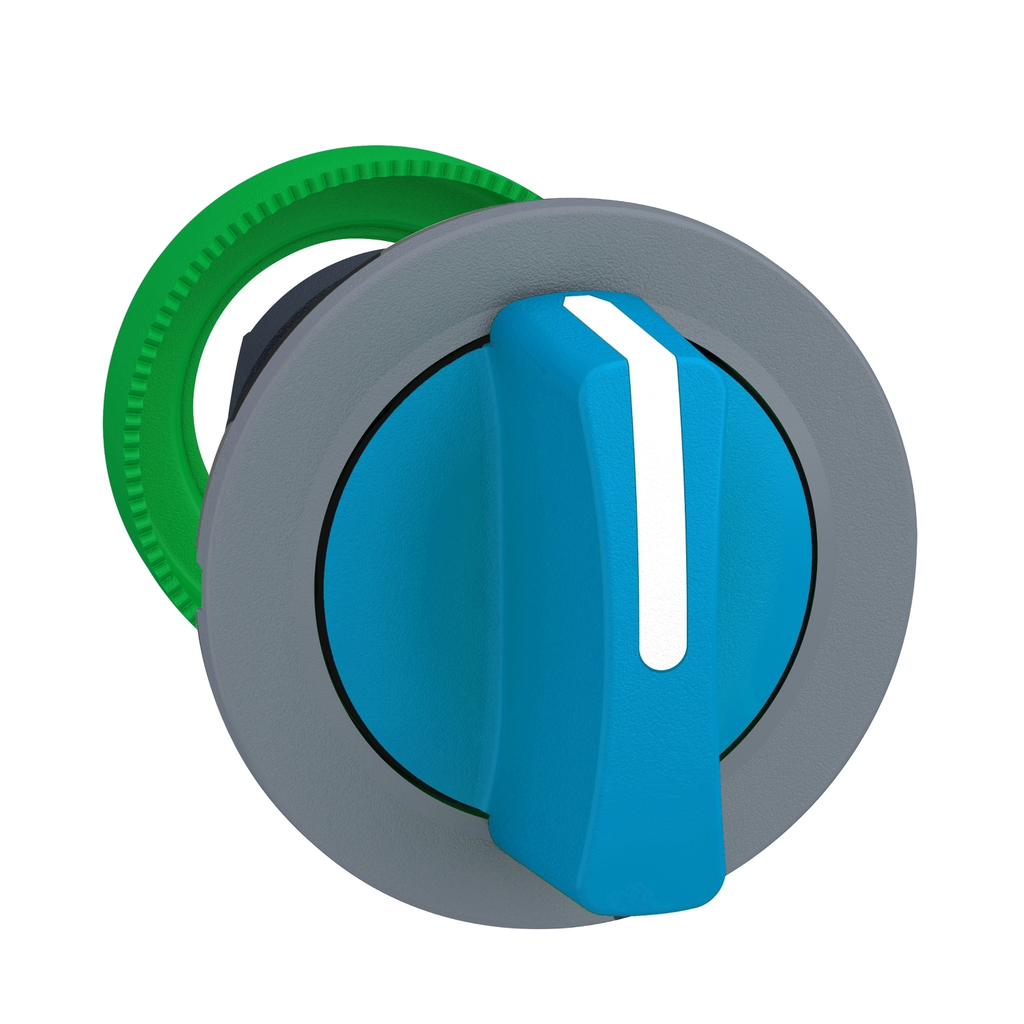

Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, blue, Ø30, 3 positions, stay put, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Specifications
    • Type Of Operator : stay put
    • Device Short Name : ZB5
    • Mounting Diameter : 30.5 mm
    • Operator Position Information : 3 positions +/- 45°
    • Operator Profile : blue standard handle
    • Product Or Component Type : head for selector switch
    • Shape Of Signaling Unit Head : round
    • Sale Per Indivisible Quantity : 1
    • Head Type : built-in-flush
    • Bezel Material : plastic colour plated grey
    • Range Of Product : Harmony XB5
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Product Certifications : BV || DNV || UL Listed || LROS (Lloyds register of shipping) || CSA || GL
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : EN/IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-1
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Cad Overall Width : 37 mm
    • Net Weight : 0.031 kg
    • Cad Overall Height : 37 mm
    • Cad Overall Depth : 46 mm
  • Offer Sustainability
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Toxic Heavy Metal Free : Yes
    • Rohs Exemption Information : Yes
