SQUARE D

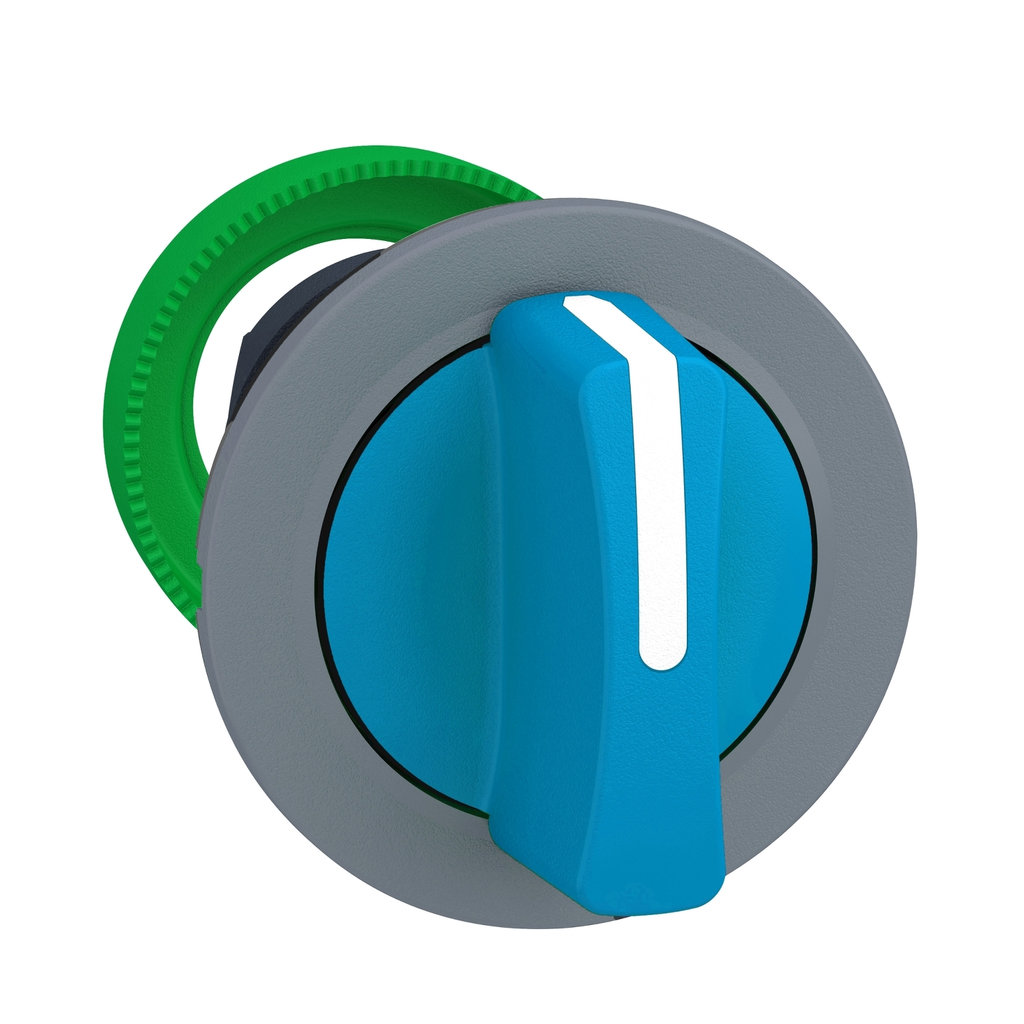

Harmony XB5, Flush mounted selector switch head, plastic, blue, Ø30, 3 positions, spring return right to center, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD806C0 3606489772161
23.44 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted selector switch head, plastic, blue, Ø30, 3 positions, spring return right to center, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB5
    • Range Of Product : Harmony XB5
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
    • Operator Profile : blue standard handle
    • Type Of Operator : right to centre spring return
    • Operator Position Information : 3 positions +/- 45°
    • Product Or Component Type : head for selector switch
  • Complementary
    • Mechanical Durability : 1000000 cycles
    • Device Presentation : basic element
    • Cad Overall Width : 37 mm
    • Cad Overall Height : 37 mm
    • Cad Overall Depth : 46 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Net Weight : 0.031 kg
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Product Certifications : CSA || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || GL
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Standards : IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-4 || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK03 IEC 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Offer Sustainability
    • Reach Free Of Svhc : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
