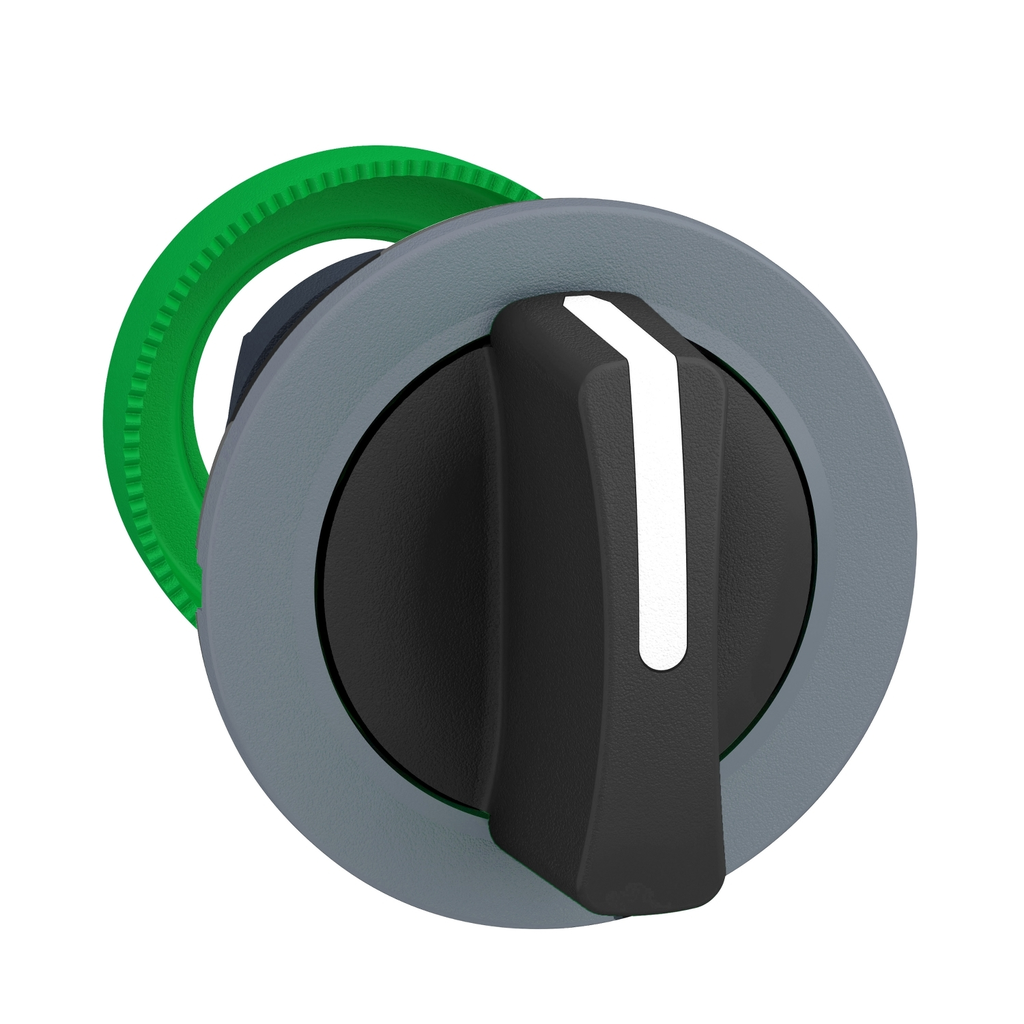

Harmony XB5, Flush mounted selector switch head, plastic, black, Ø30, 3 positions, spring return to center, grey bezel

HARMONY XB5, FLUSH MOUNTED SEL

SQDZB5FD5C0 ZB5FD5C0 3606489771928
19.88 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Environment
    • Product Certifications : GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Protective Treatment : TH
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Net Weight : 0.031 kg
    • Cad Overall Height : 37 mm
    • Device Presentation : basic element
    • Mechanical Durability : 1000000 cycles
    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 46 mm
  • Specifications
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : to centre spring return
    • Product Or Component Type : head for selector switch
    • Shape Of Signaling Unit Head : round
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic colour plated grey
    • Operator Profile : black standard handle
    • Operator Position Information : 3 positions +/- 45°
    • Device Short Name : ZB5
