SQUARE D

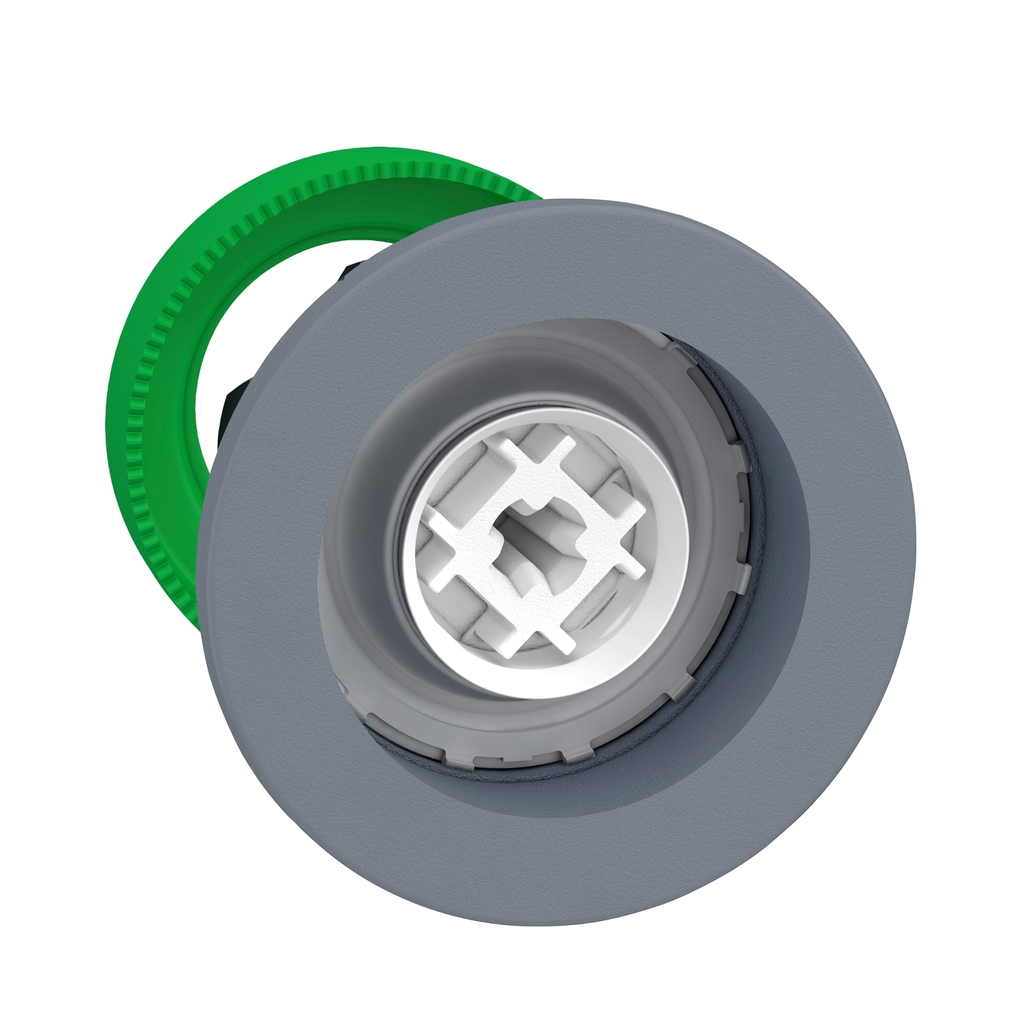

Harmony XB5, Flush mounted push button head, plastic, without cap, Ø30, push-push, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FH0C0 3606489773106
15.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, without cap, Ø30, push-push, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : UL Listed || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • China Rohs Regulation : X
  • Complementary
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
    • Cad Overall Width : 37 mm
    • Mechanical Durability : 500000 cycles
    • Cad Overall Height : 37 mm
    • Net Weight : 0.03 kg
    • Cad Overall Depth : 30 mm
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 30.5 mm
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Range Of Product : Harmony XB5
    • Bezel Material : plastic colour plated grey
    • Sale Per Indivisible Quantity : 1
    • Type Of Operator : push-push
    • Operator Profile : without cap
    • Head Type : built-in-flush
    • Device Short Name : ZB5F
    • Product Or Component Type : head for non-illuminated push-button
