SQUARE D

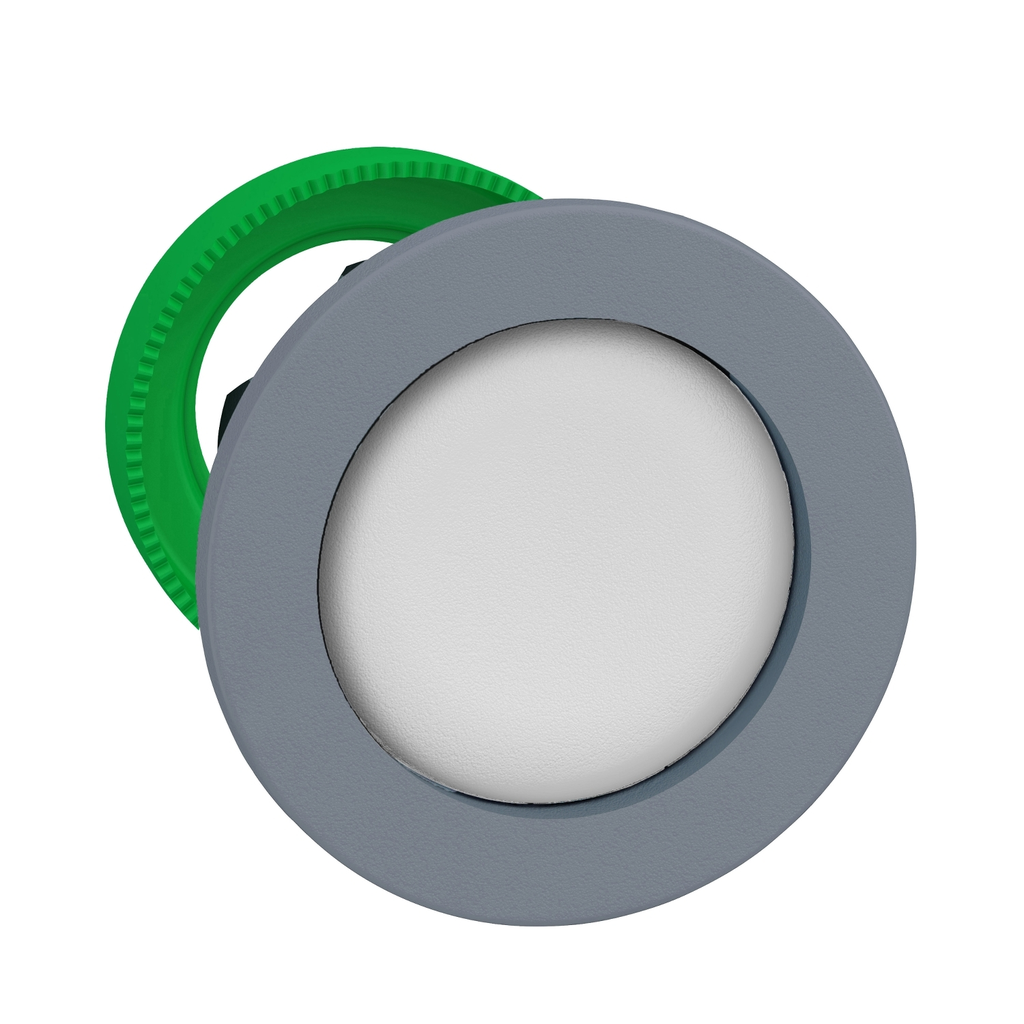

Harmony XB5, Flush mounted push button head, plastic, recessed, white, Ø30, spring return, unmarked, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FA16C0 3606489770624
26.52 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, recessed, white, Ø30, spring return, unmarked, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Product Certifications : BV || CSA || DNV || LROS (Lloyds register of shipping) || GL || UL Listed
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Cad Overall Depth : 30 mm
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
    • Device Presentation : basic element
    • Net Weight : 0.03 kg
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
  • Specifications
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Operator Profile : white recessed, unmarked
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for non-illuminated push-button
    • Type Of Operator : spring return
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Mounting Diameter : 30.5 mm
    • Device Short Name : ZB5
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Operator Additional Information : high guard
