SQUARE D

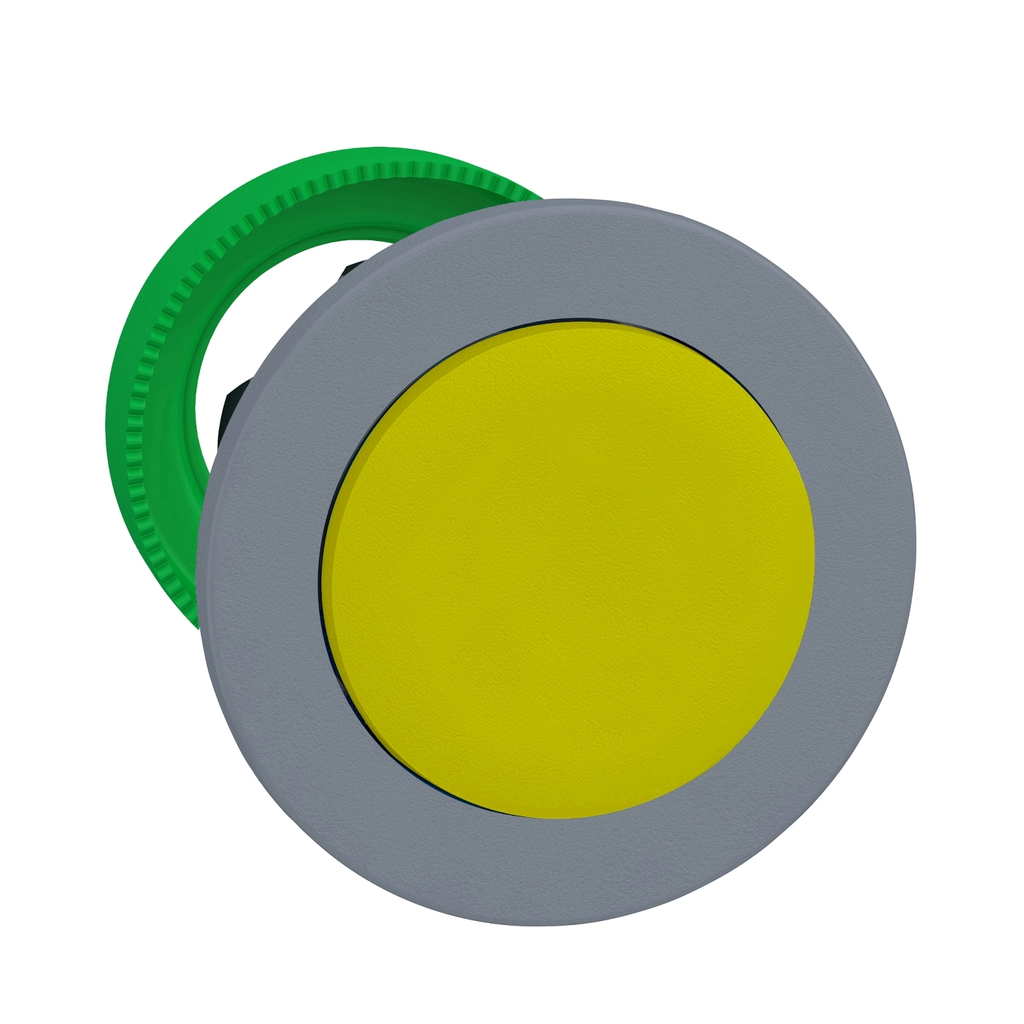

Harmony XB5, Flush mounted push button head, plastic, projecting yellow, Ø30, push-push, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FH5C0 3606489773281
24.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, projecting yellow, Ø30, push-push, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : UL Listed || CSA
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
  • Complementary
    • Net Weight : 0.031 kg
    • Device Presentation : basic element
    • Cad Overall Depth : 32 mm
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
    • Mechanical Durability : 500000 cycles
  • Specifications
    • Type Of Operator : push-push
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Product Or Component Type : head for non-illuminated push-button
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Device Short Name : ZB5F
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : yellow projecting, unmarked
    • Head Type : built-in-flush
    • Range Of Product : Harmony XB5
    • Mounting Diameter : 30.5 mm
