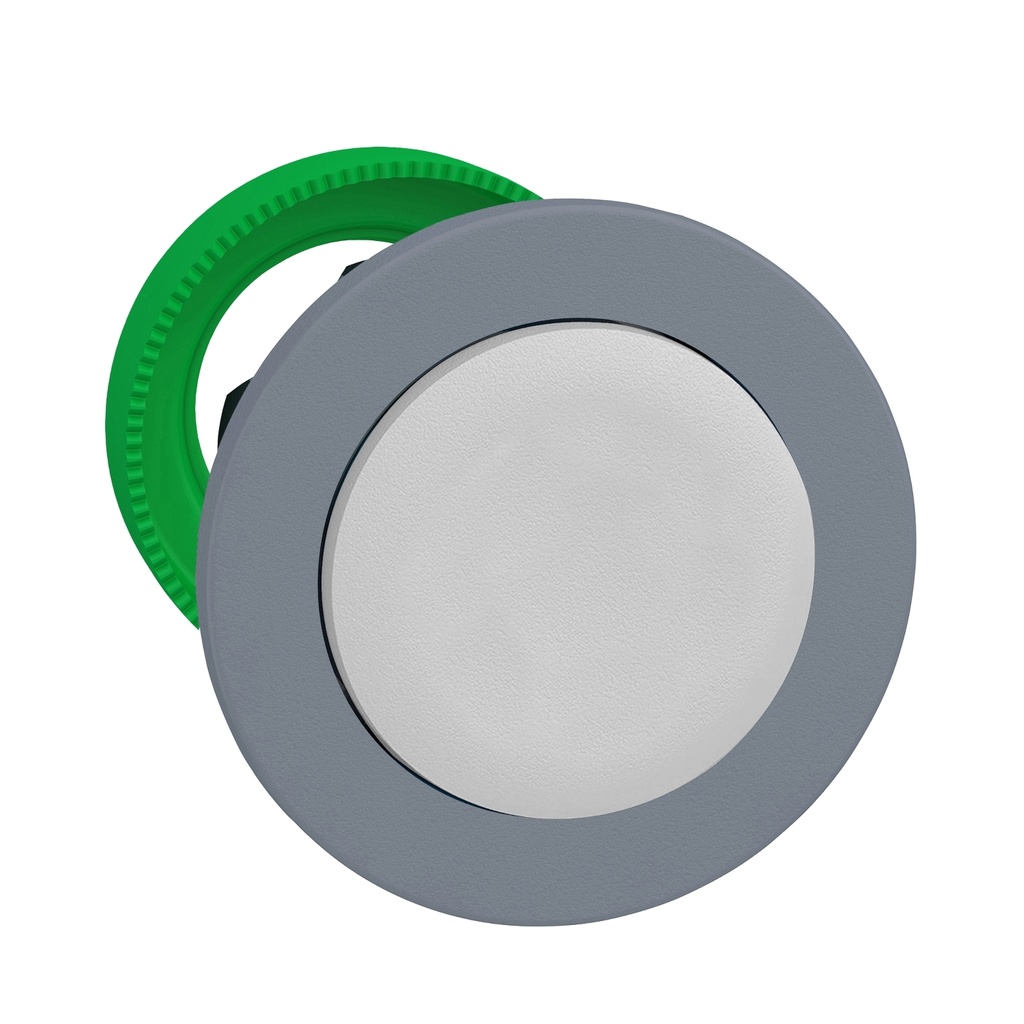

Harmony XB5, Flush mounted push button head, plastic, projecting, white, Ø30, push-push, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FH1C0 3606489773144
24.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, projecting, white, Ø30, push-push, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Protective Treatment : TH
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Product Certifications : UL Listed || CSA
    • Ik Degree Of Protection : IK03 IEC 50102
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Device Presentation : basic element
    • Cad Overall Depth : 32 mm
    • Mechanical Durability : 500000 cycles
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
    • Net Weight : 0.031 kg
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Device Short Name : ZB5F
    • Product Or Component Type : head for non-illuminated push-button
    • Range Of Product : Harmony XB5
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Bezel Material : plastic colour plated grey
    • Shape Of Signaling Unit Head : round
    • Type Of Operator : push-push
    • Operator Profile : white projecting, unmarked
    • Mounting Diameter : 30.5 mm
    • Head Type : built-in-flush
