SQUARE D

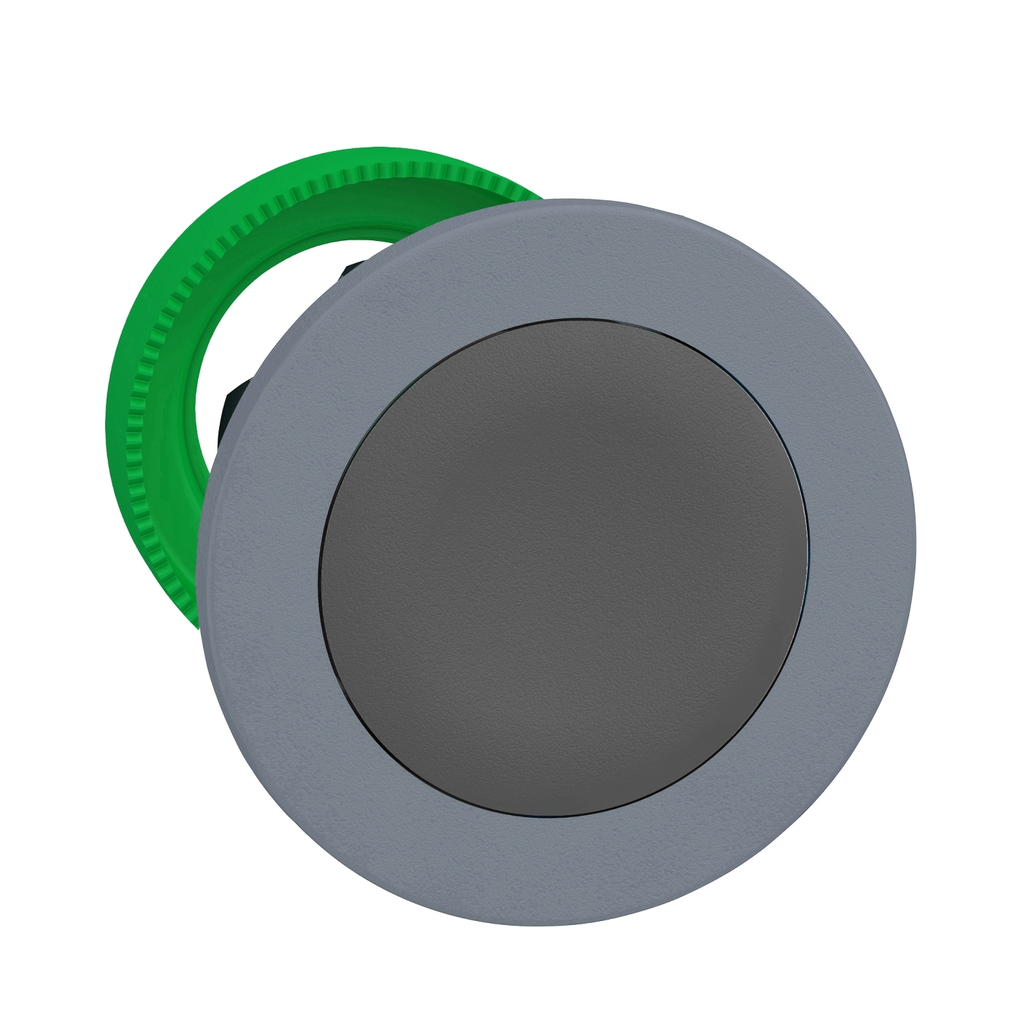

Harmony XB5, Flush mounted push button head, plastic, grey, Ø30, spring return, unmarked, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FA8C0 3606489771324
10.06 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, grey, Ø30, spring return, unmarked, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Product Certifications : CSA || LROS (Lloyds register of shipping) || GL || DNV || UL Listed || BV
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Ik Degree Of Protection : IK03 IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Cad Overall Height : 37 mm
    • Device Presentation : basic element
    • Cad Overall Depth : 30 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Net Weight : 0.03 kg
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 37 mm
  • Specifications
    • Range Of Product : Harmony XB5
    • Head Type : built-in-flush
    • Mounting Diameter : 30.5 mm
    • Type Of Operator : spring return
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for non-illuminated push-button
    • Bezel Material : plastic colour plated grey
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Operator Profile : grey flush, unmarked
    • Device Short Name : ZB5
    • Shape Of Signaling Unit Head : round
